Jaw Couplings

Lovejoy Couplings

Lovejoy Jaw Coupling Hubs and Spiders

  Lovejoy L-type jaw couplings are the industry's standard shaft coupling.  Used to link two rotating shafts, they accomodate for angular and parallel shaft misalignment and prevent metal to metal contact and absorb shock.

Standard L-type coupling set consists of 2 coupling hubs and one spider.

Lovejoy Coupling Hubs and Spiders

View: Lovejoy Couplings Manual

L090 Series Shaft Couplings with Keyway:

For use with GX200 Series 5.5 Net HP and GX240 Series 7.9 Net HP Honda Engines

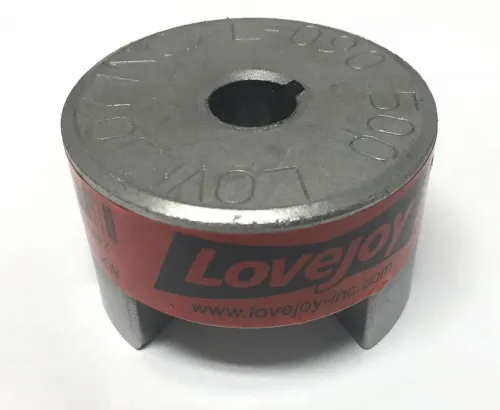

1/2" Bore L090 Hub (68514426087)

5/8" Bore L090 Hub (68514410771)

3/4" Bore L090 Hub (68514410773)

1"    Bore L090 Hub (68514431296)

Open Center Spider

Solid Center Spider

L095 Series Shaft Couplings with Keyway:

For use with GX270 Series 8.5 Net HP and GX340 Series 10.7 Net HP Honda Engines

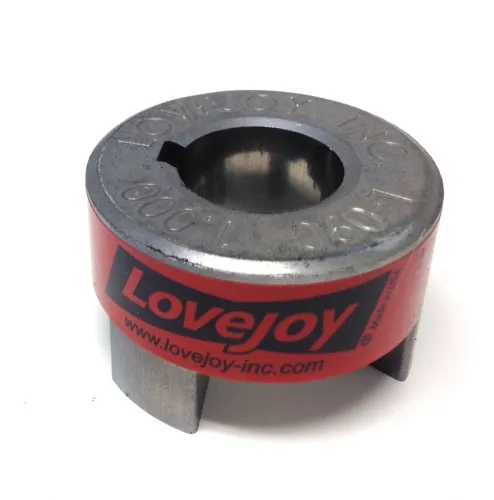

1/2" Bore L095 Hub (68514426088)

5/8" Bore L095 Hub (68514411085)

3/4" Bore L095 Hub (68514411087)

7/8" Bore L095 Hub (68514411089)

1"    Bore L095 Hub (68514411091)

1 1/8" Bore L095 Hub (68514411039)

Open Center Spider

Solid Center Spider

L099 Series Shaft Couplings with Keyway

For use with GX390 Series 11.7 Net HP Honda Engines

5/8" Bore L099 Hub (68514411336)

3/4" Bore L099 Hub (68514411338)

Open Center Spider

L100 Series Shaft Couplings with Keyway

For use with GX630 Series 20.8 Net HP and GX690 Series 22.1 Net HP Honda Engines

1" Bore L100 Hub (68514411516)

1 1/8" Bore Hub (68514411518)

Open Center Spider

Display: Grid List
Show:
Sort By:
SKU: sp2
$14.65
Hydraulic Spider: Pump to Motor Coupling for use with L090 and L095 series hubs
SKU: SP3
$39.95
Open center spider for L099 and L100 series Lovejoy shaft coupling hubs.
SKU: sp1
$14.65
Hydraulic Spider: Pump to Motor Coupling for use with L090 and L095 Series coupling hubs
SKU: L090
$18.95
L090 features: 1" Hub and 1/4 X 1/8" Keyway, 144 inch lbs torque
SKU: L090B
$14.85
L090 features: 1/2" Hub and 1/8 X 1/16" Keyway, 144 inch lbs torque
SKU: L090C
$14.85
L090 features: 3/4" Hub and 3/16 X 3/32" Keyway, 144 inch lbs torque
SKU: L090D
$14.85
L090 features: 5/8" Hub and 3/16 X 3/32" Keyway, 144 inch lbs torque
SKU: L095A
$18.95
L095 features: 1 1/8" Hub and 1/4 X 1/8" Keyway, 194 inch lbs torque
SKU: L095
$18.95
L095 features: 1" Hub and 1/4 X 1/8" Keyway, 194 inch lbs torque
SKU: L095E
$18.95
L095 features: 1/2" Hub and 1/8X 1/16" Keyway, 194 inch lbs torque
