Magister Hydraulics Cylinders, Valves & Parts

Magister Hydraulics is a hydraulic component manufacturer founded in 1998, with its U.S. office in Belleville, New Jersey and manufacturing in Plovdiv, Bulgaria. The company is active and independently privately held, and builds single- and double-acting hydraulic cylinders, directional control valves, gear pumps, power units, hose kits, and custom OEM components. Northern Hydraulics supplies over 400 Magister Hydraulics products and cross-references Magister cylinders as replacements for loader and agricultural equipment.

Magister Hydraulics Product Lines & Series

Magister organizes its welded cylinder catalog around mount-style part-number prefixes, so matching a replacement to an existing rod comes down to reading the designation. The families Northern Hydraulics stocks include:

• Cross-tube welded cylinders — WCT designations and the largest single group in the catalog; see cross-tube welded cylinders.

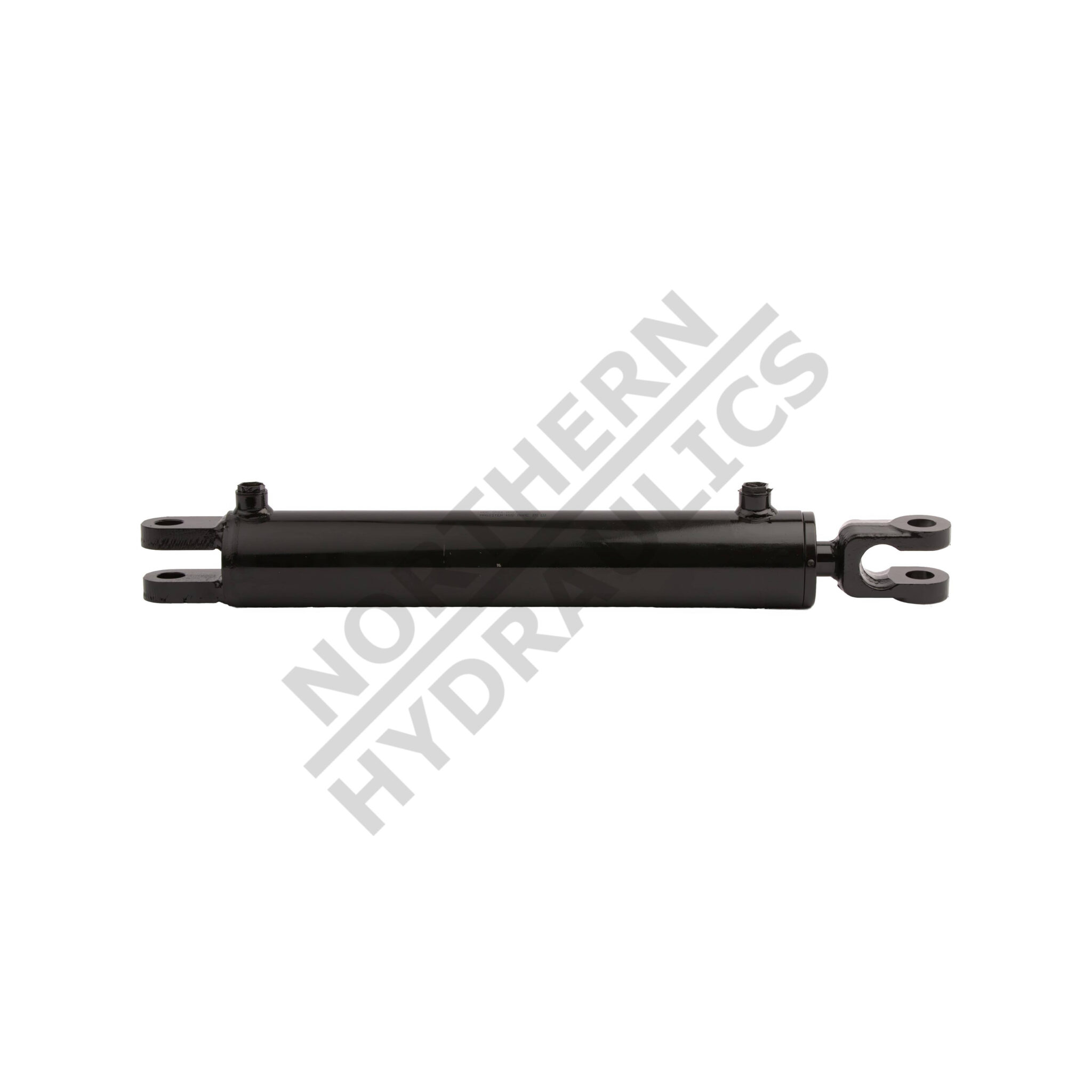

• Clevis and tang mounts — WCL and WTG designations for loader and implement work; browse clevis-mount and tang welded cylinders.

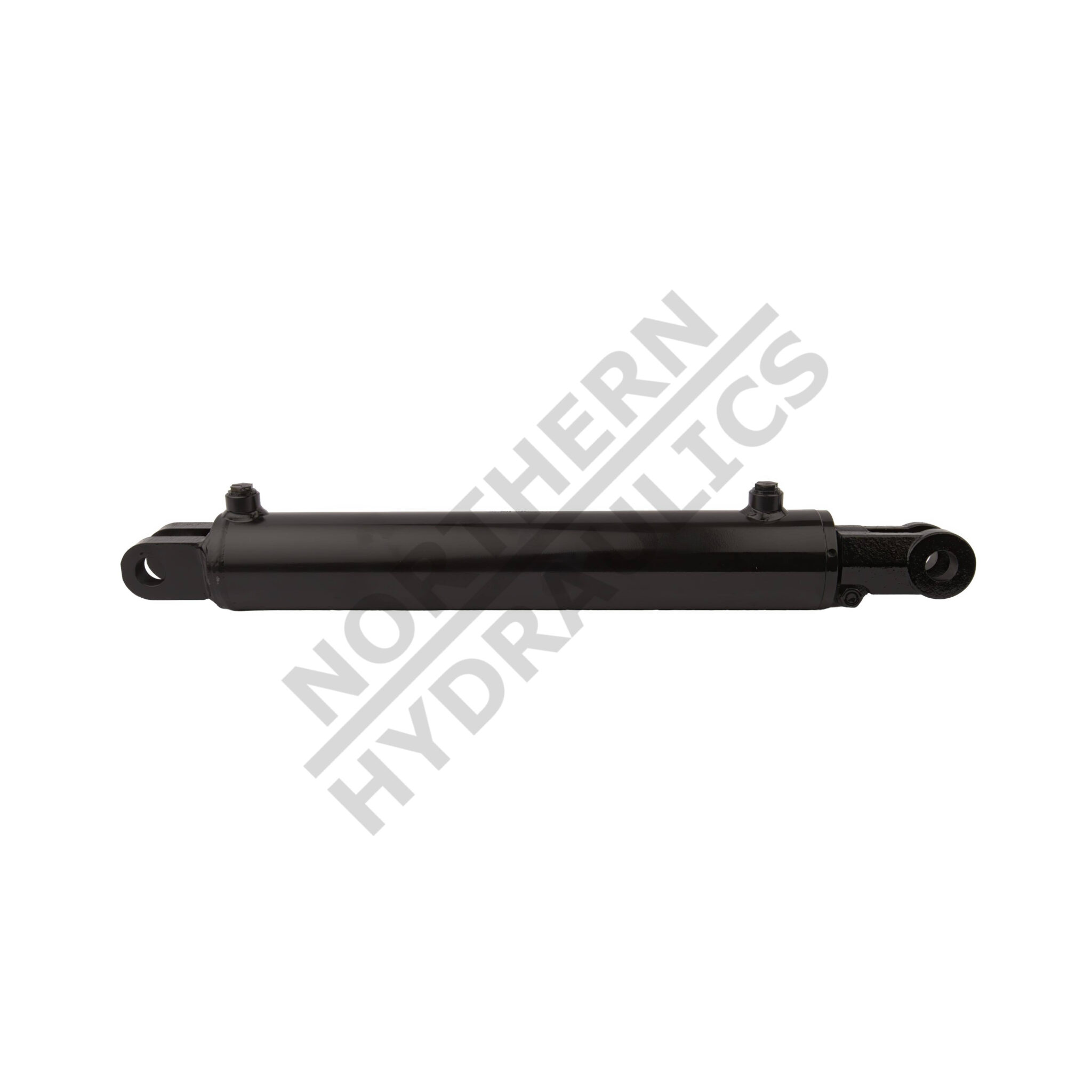

• Pin-eye and swivel-eye mounts — WSE and related designations; compare pin-eye welded cylinders for tight-clearance pivots.
• Tie-rod cylinders — TRC designations for rebuildable rod-end and cap-end assemblies; see tie-rod cylinders.

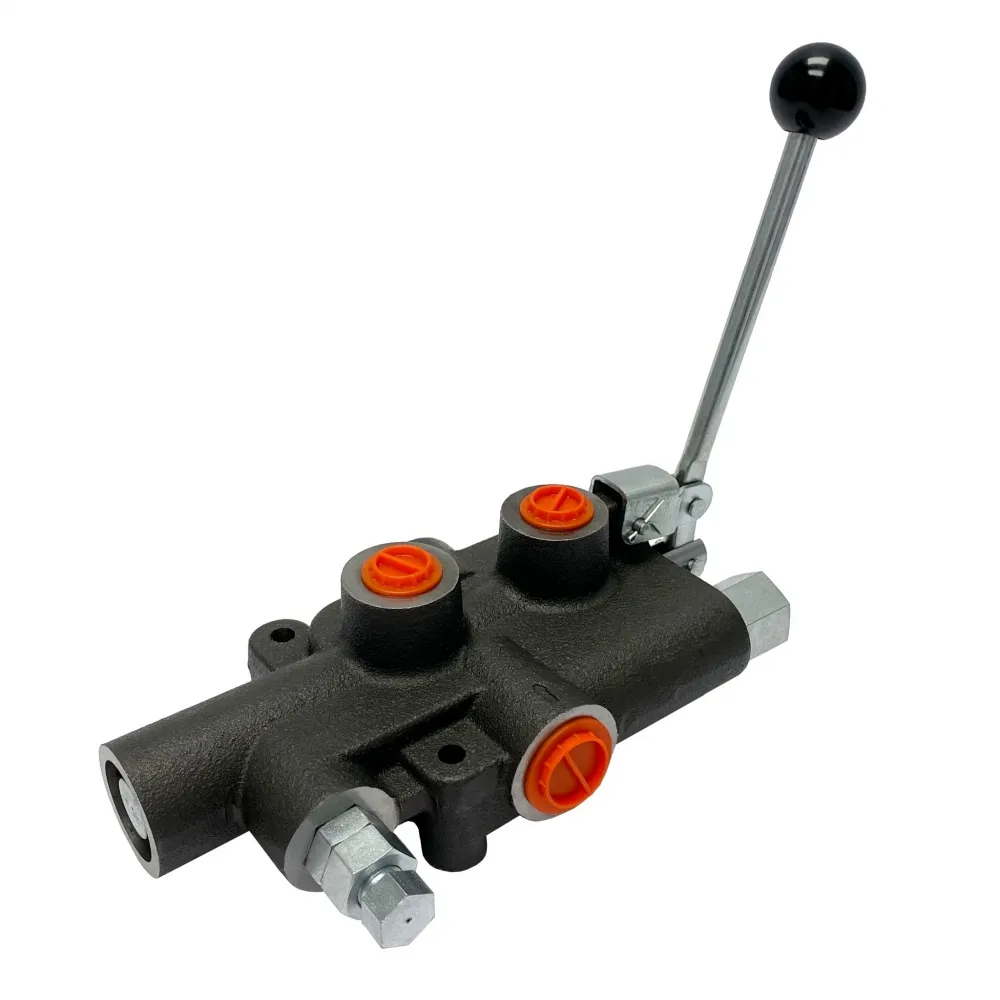

• Log-splitter control valves — 1-spool 21 GPM and 2-spool 32 GPM directional valves with auto-return detent kits.
• Repair parts — seal kits, bushings, pivot pins, detent kits, and rod clevis items for field service of the cylinders above. The full range sits under Magister hydraulic cylinders.

Cross-Referencing Magister Hydraulics Parts

Magister cylinders are documented cross-reference replacements for front-end loader equipment from John Deere, Kubota, Massey Ferguson, and Mahindra, where the deciding factors are bore, stroke, rod diameter, and mount style rather than the original brand name. If you are working from a worn or stamped-off cylinder, send us the bore, stroke, pin-to-pin retracted length, and port size, and we will map it to the matching cross-tube, clevis, tang, pin-eye, or swivel-eye Magister assembly. The same approach covers the seal kits, bushings, and pivot pins needed to rebuild an assembly in the field instead of replacing the whole cylinder. To match an obsolete or unmarked Magister Hydraulics part to a current equivalent, request a cross-reference quote.
