Hydraulic Power Unit Troubleshooting: Won’t Build Pressure
June 11, 2026
When a DC or electric-over-hydraulic power unit won’t build pressure or won’t lift, the cause is almost always one of five things: a pump that lost its prime, low or wrong fluid, a clogged suction screen, a relief or check valve dumping flow, or — on a 12V unit — weak battery voltage. Start at the data tag and the fluid, work the symptom-to-fix table below, and prime the pump before you condemn it. If the tag is worn off and you can’t identify the unit, send us the application and we’ll cross-reference it. This guide covers the diagnosis, the prime-and-bleed procedure, single- vs double-acting plumbing, and how to read the model, serial, and gear code that decide which parts fit.
Start here: what a power unit needs to build pressure

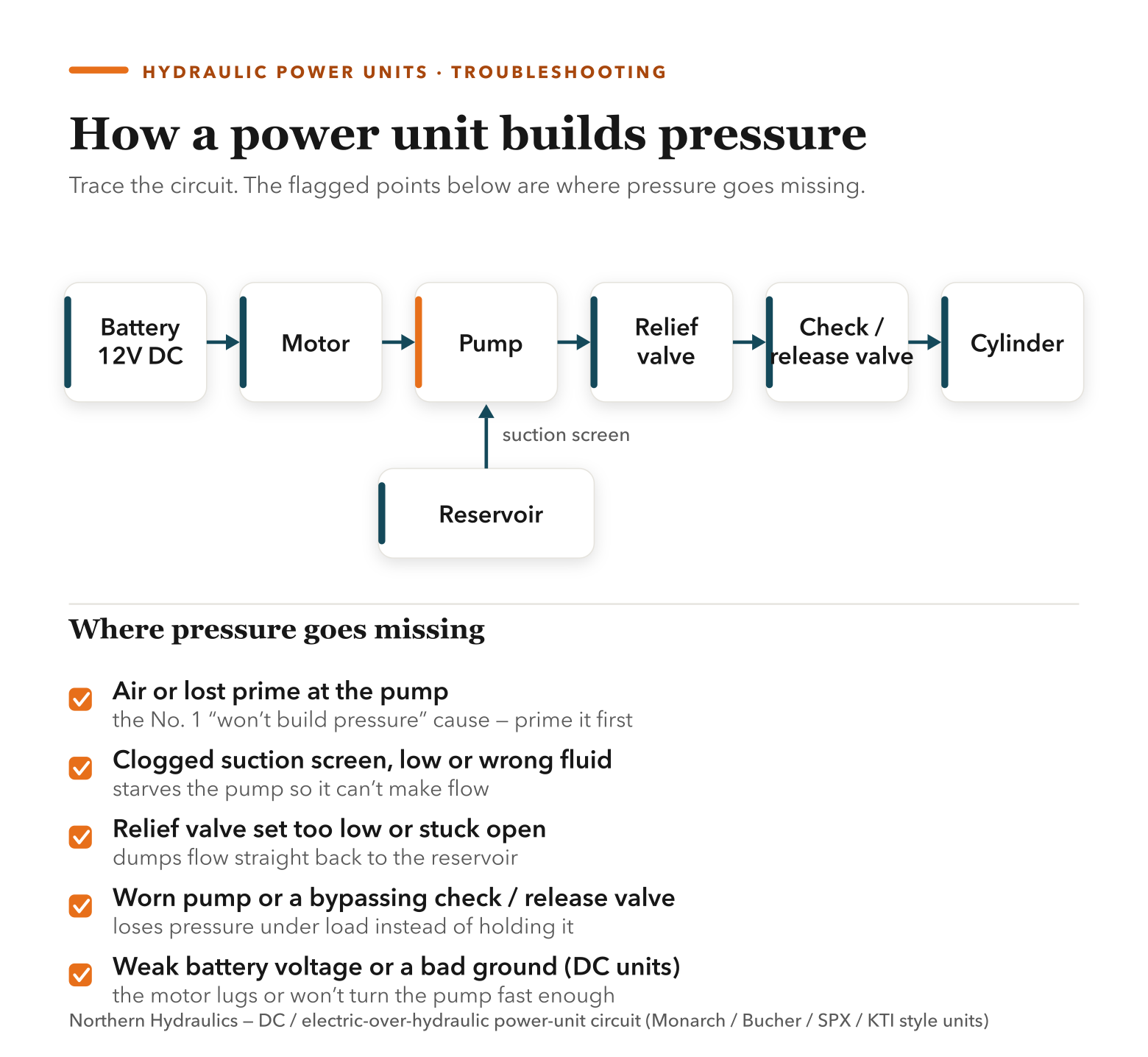

A power unit makes pressure by moving oil, not by spinning fast. The motor turns the pump, the pump draws oil from the reservoir through a suction screen, and that flow only becomes pressure when it meets resistance — the load on the cylinder, held in by the relief and check valves. Break any link in that chain and the gauge stays low. Trace the circuit in the diagram before you start swapping parts, because the fix is usually upstream of where the symptom shows.
Two things matter before any test. First, the unit needs a full reservoir of the right fluid and a clear path to the pump — a starved or air-bound pump cannot make pressure no matter how strong the motor is. Second, on a 12V DC unit the motor needs full voltage and a clean ground, or it lugs and turns the pump too slowly to build flow. Confirm those two, then read the symptoms below. When the diagnosis points to a worn pump, valve, or seal, the replacement parts live in the hydraulic power units catalog and its parts section.
Symptom, cause, and first fix
Match what the unit is doing to the most likely causes, then run the first checks in order. This table sits up front on purpose — it is the fastest path from a symptom to the right fix, and it routes you to the procedures and parts further down the page. Replacement valves, coils, seals, and pumps are in the power-unit parts and accessories section.
| Symptom | Likely cause | First checks & fix |
|---|---|---|
| Motor runs but the unit won’t build pressure or won’t lift. | Air-bound pump (lost prime), low or wrong fluid, clogged suction screen, relief valve set low or stuck open, worn pump. | Prime the pump (below), check the fluid level and type, clean the suction screen, then confirm the relief setting before condemning the pump. |
| Motor cranks slowly, labors, or blows the fuse. | Weak battery voltage, bad ground, corroded or undersized cable, seized pump, worn motor. | On DC units check voltage at the motor and the ground first; a labored motor with good power points to a seized pump or motor. |
| Motor is silent — no response at all. | Dead battery, blown fuse, failed solenoid (no click), bad switch or pendant, broken ground. | Confirm power and ground, check the fuse, and listen for the solenoid click on the button; no click means the solenoid or its control circuit. |
| Lifts but drifts down or won’t hold the load. | Leaking check or release valve, contaminated or worn cartridge valve, cylinder seal bypass. | Cycle the unit to flush debris, inspect the release valve, then test the cylinder; steady drift under load points to a bypassing valve or seal. |
| Overheats, or the oil looks foamy or milky. | Low fluid, wrong viscosity, water or air in the oil, running past the duty rating, blocked return. | Top off with the correct fluid, look for a milky (water) or foamy (air) tank, give the motor its rest duty cycle, and clear the return path. |
| Raises but won’t lower — or won’t power both ways. | Release solenoid not energizing, single-acting unit plumbed to a double-acting cylinder with no vent, reversed hoses. | Check the lower or release control, confirm the plumbing matches the cylinder type, and verify the hoses are on the correct ports. |
How to prime and bleed a DC power unit
An air-bound pump is the number-one reason a new or just-serviced unit won’t build pressure. The pump has to be full of oil to draw more — trapped air just compresses and the gauge never climbs. Priming pushes that air out. Keep the reservoir full of the correct fluid the whole time, and leave about 1 inch of headspace at the top for the oil to expand as it warms.
- Fill every component with oil. Fill the reservoir and, on a fresh build, pre-fill the pump and lines so you start with as little trapped air as possible.
- Loosen the high-pressure line at the cylinder. Crack the fitting where the pressure hose meets the cylinder so air has somewhere to escape instead of compressing.
- Jog the unit in short bursts. With the reservoir full, run the power unit briefly — a second or less at a time — until clear, air-free oil flows from the loosened fitting.
- Re-tighten and test. Snug the fitting, then cycle the unit and watch the gauge. Pressure should now build and the cylinder should move.
- Find why it lost prime. If it air-binds again, check for a suction tube above the oil level, a clogged filter, a loose fitting, a poorly vented reservoir, low-viscosity oil, or a failed seal.
If priming restores pressure but the unit keeps losing it, the suction side is pulling air. Re-seal the suction fittings, confirm the screen is below the oil level, and verify the reservoir vent is clear. Suction screens, filters, fittings, and seal kits are in the parts and accessories section.
Single- vs double-acting: get the plumbing and fluid right
A lot of “won’t lower” and “won’t power both ways” calls are really a plumbing mismatch, not a failed part. A single-acting unit pushes the cylinder out under pressure and lets the load’s own weight bring it back. A double-acting unit powers the cylinder both ways through a directional valve. Put a single-acting unit on a double-acting cylinder without a vent and the rod end air-locks — the cylinder stalls because the trapped oil has nowhere to go.
Fluid is the other half of getting it right. Go by color when you top off: if the fluid in the tank is red, it’s ATF Dexron; if it’s clear or golden, it’s AW 32 hydraulic oil. Mixing the two, or running a thin oil that lets the pump cavitate, shows up as overheating, foam, or lost prime. For wiring the start solenoid, pendant, or remote that controls the valve, see our power-unit wiring diagrams for the common pendant, toggle, and remote setups.
Identify your Monarch or Bucher unit
Before you can order the right pump section, coil, or seal kit, you have to know exactly which unit you have. On a Monarch or Bucher power unit, that information is on a blue-and-white identification sticker, usually on the reservoir. It carries three fields, and each one decides a different part of the order.
| Tag field | What it tells you | Why it matters for parts |
|---|---|---|
| Model number. | The unit family and circuit type — manual vs solenoid, single- vs double-acting. | Sets which valve block, coil, and seal kit fit. It’s the starting point for any replacement. |
| Serial number. | The production build of your specific unit. | Pins down running changes so the replacement pump, motor, or kit matches what actually shipped. |
| Pump gear code. | The pump displacement, or flow in GPM, built into the unit. | Sizes the replacement pump section and tells you the ram speed the unit was built for. |
The catch: the ink on those tags wipes off easily with solvents and UV, so a unit in service is often unreadable. When the tag is gone, identify the unit by its application — dump trailer, liftgate, snow plow, bale bed, or pumping station. Add the gear code if you can find it stamped on the pump. Send those details and we’ll cross-reference the unit against the Bucher and Monarch power units we carry. A worn-tag or obsolete unit is exactly what the RFQ funnel is for. Request a quote with what you know and we’ll fill in the rest.
Match the unit to the job
Whether you’re replacing a unit or confirming the one you have, the application narrows the field fast. The circuit type follows the job: lifting jobs that drop by gravity run single-acting, while jobs that need power in both directions run double-acting. Here’s how the common applications line up.
Single-acting work covers most dump trailers and dump beds, liftgates, and snow-plow lift circuits. The load lifts under power and lowers under its own weight. Double-acting work covers bale spikes and beds, plow lift-and-angle, and anything driven down or held against a load. Pumping-station units run a remote or integral reservoir for continuous-duty jobs. Manual-valve units use a hand release; solenoid units add electric control for a pendant or remote. Browse the full range of power units by type. For a motor swap on a 12V unit, see our guide to 12V DC power-unit motors and the part-number cross-references.
A power unit runs at thousands of psi — high enough to inject oil through skin from a pinhole leak. Never check for a leak with your hand, treat any fluid injection as a medical emergency, and de-energize and depressurize the system before you open a coupler or fitting, following lockout/tagout practice. Disconnect the battery before working on a DC unit’s wiring.
If it were our call
For most “won’t build pressure” calls, we’d start at the cheap end and work in. Check the fluid level and type, then prime the pump — that pair fixes more units than any parts swap. On a 12V unit, put a meter on the motor and the ground before you touch the hydraulics, because weak voltage fakes a dozen pump symptoms. Only after prime, fluid, suction screen, and voltage check out do we look at the relief valve, then the pump. The one job worth slowing down for is identifying the unit: read the model, serial, and gear code off the tag, or work back from the application if the tag is gone. Get that right and the replacement parts are a clean cross-reference. Get it wrong and you’ll chase the wrong pump twice. When the tag is unreadable or the unit is obsolete, that’s our cue, not your dead end — send the details and browse the power-units catalog or request a quote and we’ll cross-reference it.
Frequently Asked Questions (FAQ)
Short answers to what buyers ask most before they order parts for a hydraulic power unit.
How do I prime my power unit pump?
Fill the reservoir with the correct fluid, then loosen the high-pressure line at the cylinder so trapped air can escape. With the tank full, jog the unit in bursts of a second or less until clear, air-free oil flows from the loosened fitting, then re-tighten and test. If it keeps losing prime, the suction side is pulling air — check for a suction tube above the oil level, a loose fitting, or a clogged filter. Replacement screens and seals are in the parts and accessories section.
What fluid does my DC power unit use?
Go by the color of the fluid already in it. If it’s red, use ATF Dexron; if it’s clear or golden, use AW 32 hydraulic oil. DC units commonly run an ATF that stays fluid in the cold and is compatible with the unit’s seals. Don’t mix the two types, and don’t run an oil thinner than the unit was built for — thin oil cavitates the pump and shows up as foam, heat, or lost prime.
How do you plumb a single-acting power unit to a double-acting cylinder?
Vent the top (rod-end) port, or plumb the top hose back to the tank. A single-acting unit only powers the cylinder one way and relies on the load to return it, so the rod end needs a path to tank or the trapped oil air-locks and the cylinder stalls. If you need true powered control in both directions, match the cylinder to a double-acting unit instead. Our power-unit wiring diagrams cover the valve and control side.
Why won’t my power unit build pressure?
The usual order is: a pump that lost its prime, low or wrong fluid, a clogged suction screen, a relief valve set too low or stuck open, then a worn pump. On a 12V DC unit, add weak battery voltage or a bad ground to the top of that list, because a slow motor can’t turn the pump fast enough to make flow. Work the symptom-to-fix table above from the cheap end in, and prime the pump before you condemn it. The power units we carry include the matching pump sections.
How do I diagnose a hydraulic system failure?
Start at the supply and work toward the load. Confirm fluid level and type, then — on a DC unit — voltage and ground, then the suction screen, then the relief and check valves, then the pump and cylinder. Change one thing at a time so you know what fixed it. Most failures are upstream of where the symptom appears, which is why priming, fluid, and voltage account for the majority of “dead” units. For a part you can’t identify, request a quote and we’ll cross-reference it.
What are the most common problems with hydraulic power units?
Lost prime and a starved or air-bound suction side, low or wrong fluid, weak DC voltage or a bad ground, a relief valve out of adjustment, contamination in the valves, and worn pump or cylinder seals that bypass under load. The pattern is that most are supply-side or electrical, not a catastrophically failed pump. Routine fluid checks and clean, tight suction fittings prevent most of them. Wear parts are in the parts and accessories section.
How often should I service my power unit?
Plan on a thorough inspection and service at least once a year for a unit in regular use. Service more often in dusty, wet, or heavy-duty work. Check the fluid level and condition. Look for milky (water) or foamy (air) oil, clean the suction screen and breather, and confirm the ground and connections are clean and tight. Catching a clogged screen or bad fluid early prevents the pump wear that turns a cheap fix into a replacement unit.
My unit’s data tag is unreadable — how do I identify it?
Identify it by its application and any markings you can still read. Note what the unit does (dump trailer, liftgate, snow plow, bale bed, pumping station), whether it’s single- or double-acting, manual or solenoid, and look for a gear code stamped on the pump itself. Send those details and we’ll cross-reference the unit against the Monarch and Bucher line we carry — a worn tag is a routine cross-reference for us, not a dead end. Request a quote with what you know.
