How a Hydraulic System Works: A Beginner’s Guide
June 10, 2026
A hydraulic system moves force with a confined liquid. A pump pushes oil, a valve aims it, and a cylinder or motor turns that flow back into work you can see. This guide walks the parts, the physics in plain terms, and how to spec each piece before you buy.
What a hydraulic system is
A hydraulic system uses oil under pressure to move a load. You put a small amount of work in at the pump. The oil carries that energy through hoses to an actuator, which puts a much larger force out. Nothing burns or explodes inside the loop. The oil just transmits the push.
This works because liquids do not compress much. Squeeze oil in a closed line and it passes the pressure along instead of shrinking. That is why a thin hose can run a 20-ton press, and why one lever can raise a loaded bucket. The same idea drives a tractor loader, a dump trailer, and a hydraulic cylinder on a press.
The core idea: Pascal’s principle and F = P x A
Every hydraulic system runs on one rule. Pressure put on a confined liquid pushes equally in all directions. Engineers call this Pascal’s principle, and NASA’s primer on Pascal’s principle and hydraulics walks through the same idea. It means the pressure at the small piston shows up at the big piston too.
From there, force is simple math:
F = P x A

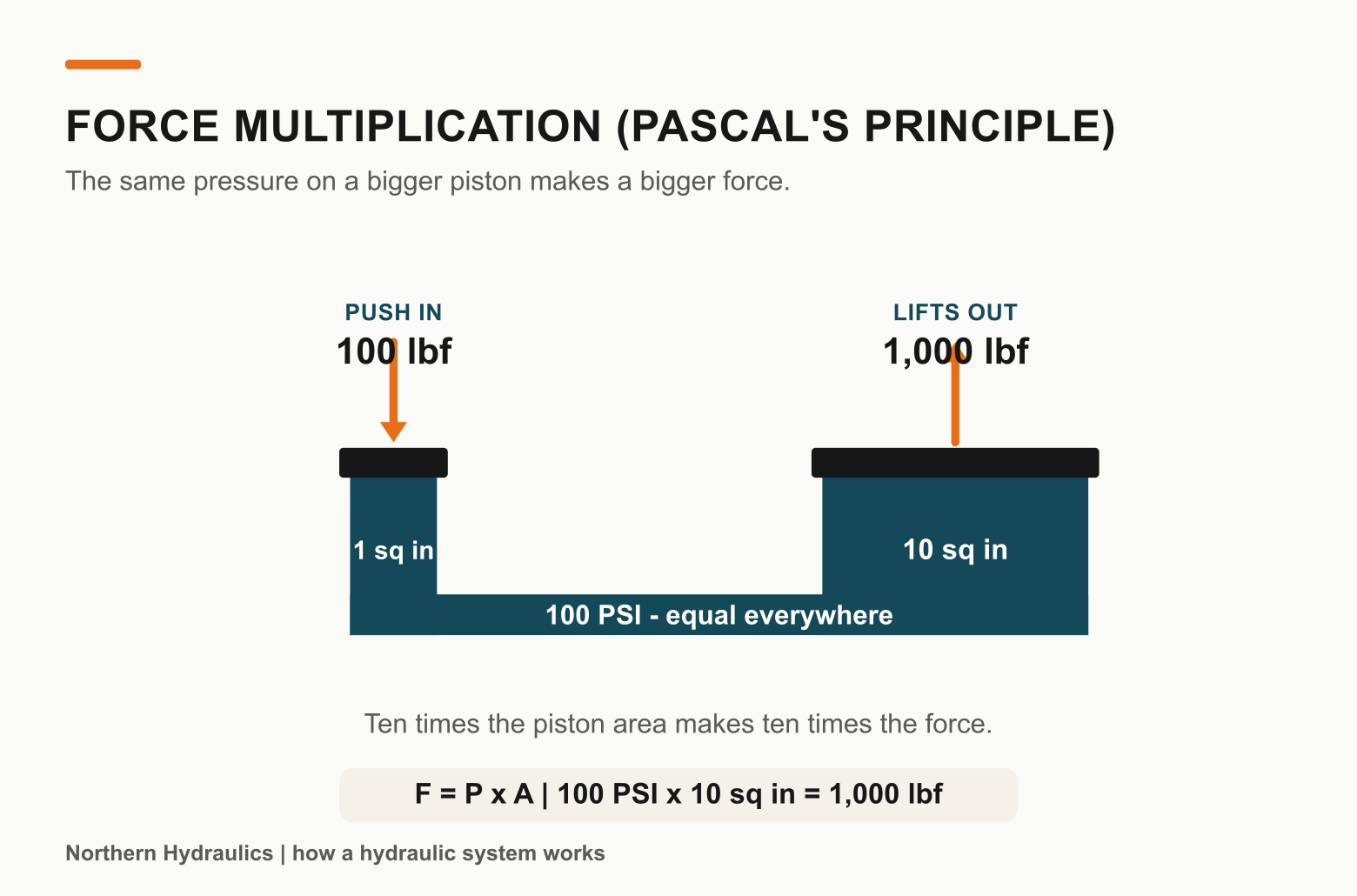

Say you press on a piston of 1 square inch with 100 pounds of force. That makes 100 PSI in the oil. Send that 100 PSI to a piston of 10 square inches and it pushes with 1,000 pounds. Same pressure, ten times the area, ten times the force. That trade is the whole trick behind a hydraulic cylinder.
Pressure vs. flow, and open- vs. closed-center
Two numbers describe what a hydraulic system is doing. Pressure, in PSI, is how hard the oil pushes. Flow, in GPM, is how much oil moves per minute. Pressure does the work; flow sets the speed. A pump that puts out more GPM moves a cylinder faster, not harder.
Here is the part that trips up beginners: a pump makes flow, not pressure. Pressure only builds when something resists that flow: a load, a closed valve, a cylinder at the end of its stroke. Take the load away and the pressure drops to near zero, even with the pump running.
Systems come in two layouts. An open-center system sends pump flow straight back to tank when the lever is centered, so it is simple and common on tractors and log splitters. A closed-center system holds pressure at the hydraulic valve and only sends oil when you open it, which suits machines with many functions on one pump.
The hydraulic loop: six parts, one circuit

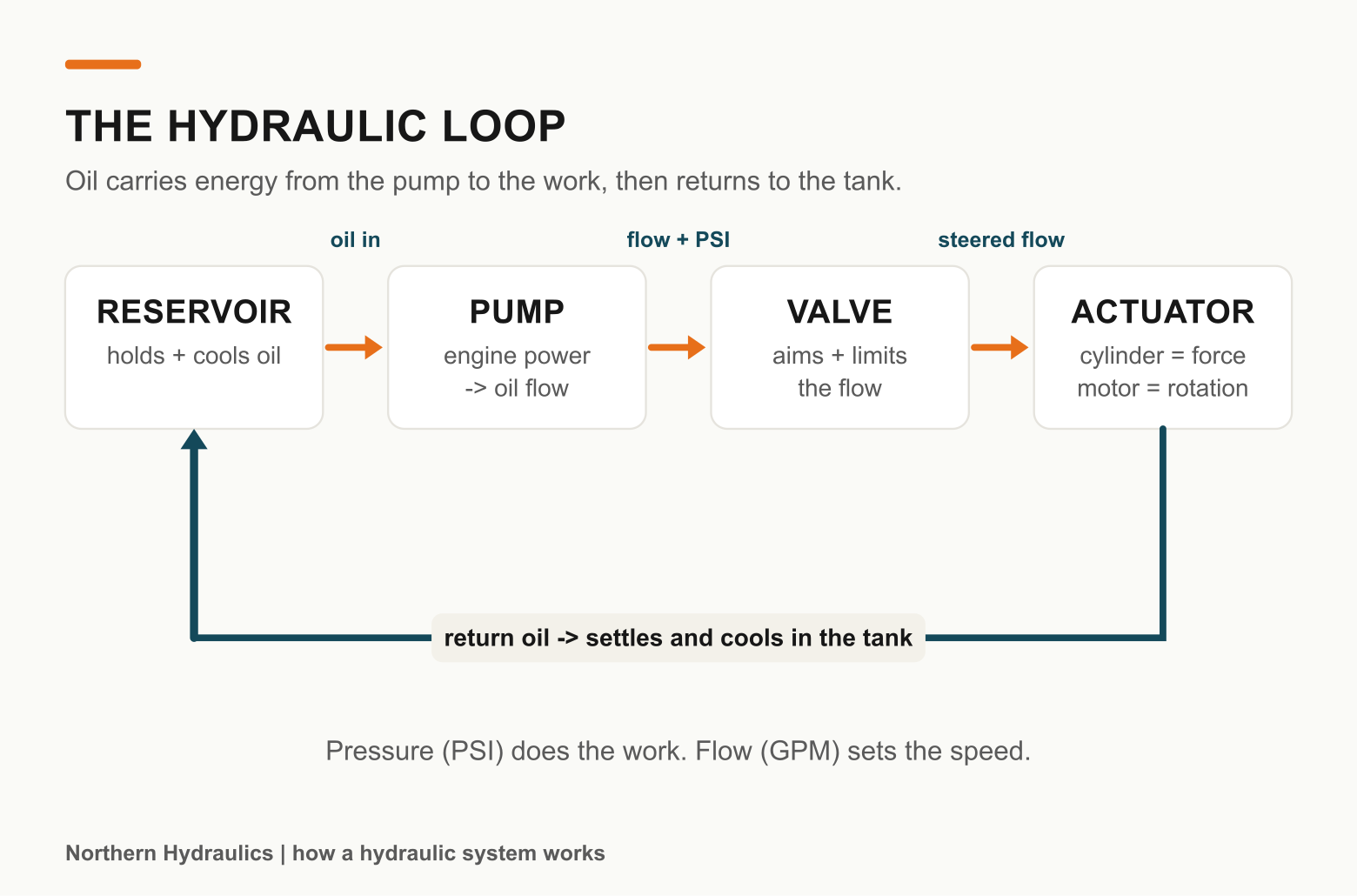

A hydraulic system is a loop, not a one-way trip. Oil leaves the tank, picks up energy at the pump, gets aimed by the valve, does its job at the cylinder or motor, then returns to the tank to cool and settle before the next pass.
Six parts carry the load. Here is what each one does, what it changes the energy into, and the first spec to check when you buy one.
| Component | What it does | It converts | Where in the loop | First spec to check | Browse at NH |
|---|---|---|---|---|---|
| Pump | Makes the oil flow | Engine power into flow | Right after the tank | Flow (GPM) and pressure rating | Hydraulic pumps |
| Valve | Steers and limits the flow | Flow into direction and a pressure cap | Between pump and actuator | Flow rating, ports, and spools | Hydraulic valves |
| Cylinder | Pushes in a straight line | Pressure into linear force | At the work | Bore, stroke, and pressure rating | Hydraulic cylinders |
| Motor | Spins a shaft | Flow into torque and rotation | At the work | Displacement and torque | Hydraulic motors |
| Reservoir | Holds and cools the oil | Stores and settles oil | Start and end of the loop | Capacity (gallons) and mount | Reservoirs |
| Fittings & seals | Connect parts and hold pressure | Seal the whole circuit | Every joint and rod | Thread standard and size | Fittings & seal kits |
The pump: turning engine power into flow
The pump is the start of the loop. An engine or electric motor spins it, and it pushes oil out as flow. It does not create pressure on its own. Pressure shows up when the oil meets a load. Gear pumps are the common, low-cost choice; vane and piston pumps handle higher pressure and variable flow.
Check two specs first: flow in GPM at your drive speed, and the pressure rating in PSI. Match those to the work, then the mount and shaft. Browse the hydraulic pumps we stock from Parker and other lines, and send us the old tag if you are replacing one.
The valve: steering pressure and flow
Valves decide where the oil goes and how much pressure the system will hold. A directional control valve routes flow to extend or retract a cylinder. A relief valve caps the pressure so nothing blows past its rating. A flow control meters the oil to slow a function down.
Spec the flow rating in GPM, the pressure rating, and the number of work sections, or spools, you need. One spool runs one function. Compare hydraulic valves by ports and spool count, and ask us if you are matching an old valve body.
The cylinder: flow into straight-line force
A cylinder is the most common actuator. Oil enters one side of a piston and pushes the rod out; oil on the other side pulls it back. Force follows the same F = P x A math: a wider bore at the same pressure means more push. A 3 inch bore at 2,000 PSI puts out roughly 14,000 pounds.
The specs that matter are bore, stroke, rod diameter, and pressure rating, plus the mount style. Get those right and the cylinder drops in. See the hydraulic cylinders we carry, and lean on us to cross-reference an obsolete one.
The motor: flow into rotation
A hydraulic motor is a pump run in reverse. Instead of making flow, it takes flow in and turns a shaft. You get high torque from a compact unit, which is why motors drive auger bits, conveyors, winches, and wheel drives. Char-Lynn (Eaton) geroler motors are a common type.
Spec the displacement, in cubic inches per revolution, with the torque and speed you need at your flow. Then check the pressure rating and the shaft. Browse hydraulic motors by displacement, and we will help match the port and mount.
The reservoir: where the oil lives
The reservoir, or tank, holds the oil the system is not using. It does three quiet jobs: it stores enough oil to feed the pump, it sheds heat through its walls, and it gives air bubbles and grit time to settle out. A good rule of thumb sizes the tank near two to three times the pump’s GPM.
Check the capacity in gallons, the mount, and the port sizes. A unit like the American Mobile Power A3400 40-gallon sidemount tank fits a truck-mounted system; browse more reservoirs we stock by size and mount. For a high-ticket tank, send us the specs and we will confirm the fit.
Fittings and seals: holding pressure in
Fittings and seals are the small parts that keep a hydraulic system from leaking. Fittings join hoses to ports; their job is a clean, rated seal. Standards matter here. A SAE J514 JIC 37-degree fitting will not seal against the wrong cone, and an ORFS face seal uses an O-ring instead. A 1/2 inch port has to meet the right thread.
Seals do the rest. O-rings and rod seals hold pressure at every moving joint, and clean oil keeps them alive. When a seal fails, a kit like the Hercules MAX 1381 O-ring kit rebuilds it. Browse the hydraulic fittings and O-ring and seal kits we keep in stock by size and standard.
How to choose hydraulic components
Spec a hydraulic system from the load backward. Start with the force or torque the job needs, then work out to the supply. Run these steps in order.
- Size the work first. Decide the force a cylinder must push, or the torque a motor must turn. That sets your minimum.
- Pick the pressure. Pressure plus piston area gives force, so a higher pressure rating means a smaller part for the same job. High-pressure work, near 10,000 PSI, calls for rated tools like Enerpac cylinders.
- Set the flow. Flow in GPM sets how fast the actuator moves. Match the pump and valve to the speed you want.
- Match the threads. Confirm the port and fitting standard so nothing leaks. Add a return-line gauge like this Stauff return-line pressure gauge to watch the system.
- Confirm fit, then order. Re-check bore, port, shaft, and pressure against the old part before you buy.
Hydraulic oil at working pressure can pierce skin and inject under it, which is a surgical emergency. Never feel for a leak with your hand, and relieve the pressure before you open a line. Read OSHA guidance on hand and power tool hazards before you service a system.
Not sure a part fits? Send the bore, port, pressure, and the old tag, and a parts specialist will cross-reference the equivalent. Browse the hydraulic cylinders and hydraulic pumps we stock, or request a quote and we will confirm the match.
A quick hydraulics glossary
A few terms come up on every spec sheet and quote. Here is the short version, with links to the hydraulic fittings and parts they describe.
- PSI (pounds per square inch)
- Pressure. How hard the oil pushes. It rises with the load and is capped by the relief valve.
- GPM (gallons per minute)
- Flow. How much oil moves per minute. It sets how fast an actuator moves.
- Displacement
- The oil a pump or motor moves per turn, in cubic inches per revolution. More displacement means more flow or more torque.
- Bore and stroke
- The piston diameter and travel of a cylinder. Bore sets the force; stroke sets the reach.
- Cross-reference
- The equivalent part for a discontinued one. Our specialists match obsolete pumps, valves, and seals by spec.
If it were our call
For most beginners, we would start at the work and read the loop backward. Decide what has to move and how hard, and the rest of the parts almost pick themselves: pressure for force, flow for speed, ports to seal it. Get those four right and a beginner can spec a working circuit. Northern Hydraulics has matched parts to machines since 1963, so when the numbers are close or a part is obsolete, we would rather cross-reference it than have you guess. Send the specs through any hydraulic pumps page or request a quote, and a specialist will confirm the fit.
