Hydraulic Cylinder Rod Scoring: Spot, Stop, Repair

What Is Rod Scoring?

Rod scoring occurs when hard particles cut longitudinal scratches into your cylinder’s chrome-plated rod surface. These scratches range from barely visible lines to deep grooves that catch your fingernail.

Why it matters? Rod scoring breaks the critical fluid film between rod and seals. Damaged rods slice through seal materials like razors through rubber. This damage creates paths for hydraulic fluid to escape and allows air to enter the system.

When left unfixed, scored rods cause:

Fluid leaks that waste oil and create safety hazards
Unpredictable cylinder drift that ruins precision work
Accelerated rod seal wear requiring frequent replacement
Higher system pressure needs to overcome increased friction
Complete hydraulic cylinder failure without warning

Visual Red‑Flags

Spotting rod scoring early saves thousands in repair costs. Look for these signs during your equipment checks:

A healthy rod shows a mirror-like surface that reflects light evenly. Scored rods display visible scratches, dull patches, or rainbow-colored streaks under bright light.

Check for oil beads forming around the rod wiper during operation. Even tiny droplets signal that scoring has damaged your seal system.

Performance Symptoms

Your equipment will tell you when rod scoring begins affecting performance:

Cycle times gradually increase as internal leakage forces your pump to work harder. Cylinders that held position now creep under load without operator input. Listen for unusual hissing sounds when cylinders reach full extension.

Rod surface finish directly impacts seal life—every additional 0.05μm Ra value above specification can decrease seal performance by up to 30%
ISO/Technical Committee 131 Research

Why Rods Get Scored—Top Causes

Understanding why cylinder rods develop scoring helps you prevent future damage. Four main culprits cause most rod scoring issues in hydraulic systems.

Contaminants in the Fluid Stream

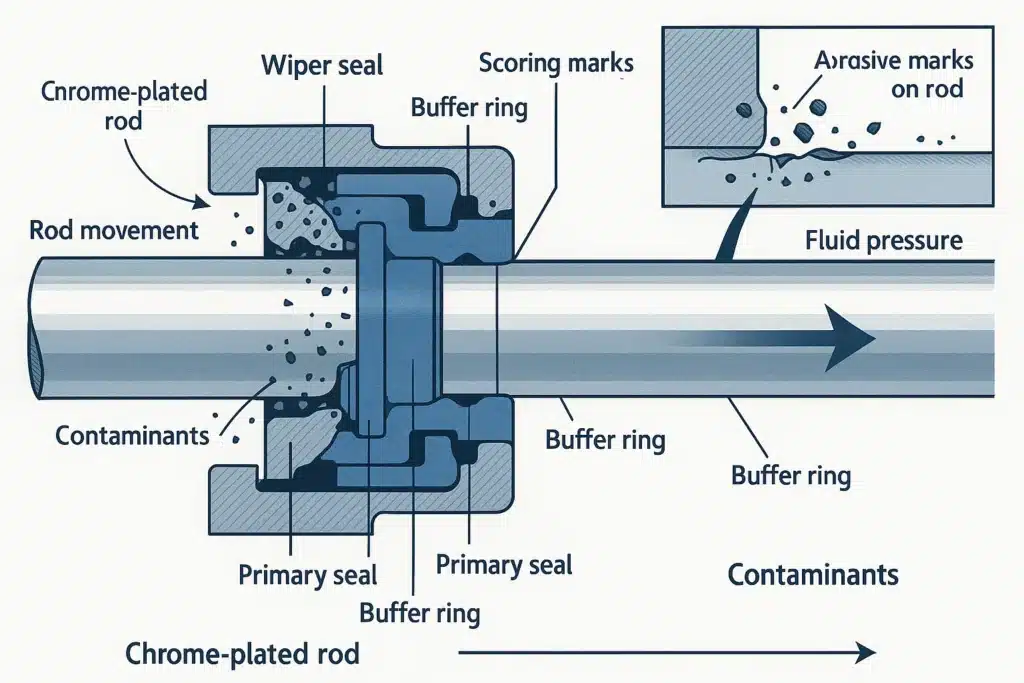

Dirt particles act like sandpaper against your cylinder’s hard chrome surface. Even microscopic grit creates scratches that grow into major scoring problems.

Your hydraulic fluid should meet ISO 4406 cleanliness codes 16/14/11 or better for most systems. This standard measures particles per milliliter at three size ranges.

Common contaminants include:

Metal chips from worn components or installation debris
Sand and dust entering through damaged wipers
Welding slag from nearby operations or repairs
Hardened paint flakes from equipment exteriors

A single tablespoon of dirt can contaminate an entire 55-gallon drum of hydraulic fluid. Regular oil analysis catches contamination before damage occurs.

Side‑Load & Misalignment

Hydraulic cylinder rods should move perfectly straight through their seals. Any sideways pressure creates uneven seal contact and rod scoring.

Side-loading multiplies seal lip pressure at contact points. This increased friction wears away hard chrome plating and creates scoring lines.

Common causes of side-loading include:

Improperly mounted cylinders not parallel to load path
Bent rods from impact damage or overloading
Worn bushings or bearings allowing excessive movement
Uneven loads pressing from one direction

Just five degrees of misalignment can reduce cylinder life by 50%. Check mounting hardware and alignment during regular maintenance.

Seal or Wiper Degradation

Damaged seals and wipers fail to keep particulate contaminants out and fluid in. When these components break down, they expose your rod to scoring hazards.

Standard nitrile seals harden over time and lose their flexibility. These rigid seals create more friction against the rod surface during operation.

Upgrading to Viton or polyurethane compounds offers better benefits:

Temperature resistance up to 400°F versus 250°F for nitrile
Five times more abrasion resistance than standard seals
Chemical compatibility with synthetic fluids
Longer service life in harsh conditions

Watch for darkened, brittle, or cracked wipers during inspection. Replace them before they allow dirt past their protective barrier.

Defective Chrome / Poor Surface Finish

Chrome plating protects your rod from corrosion and wear. Poor plating leads to premature scoring and system failure.

Quality hydraulic rods need a surface roughness (Ra) value of 0.2 micrometers or less. This measurement refers to the microscopic peaks and valleys on the rod surface.

Plating problems start when:

Even invisible defects grow larger under pressure. A single void can expand into a major scoring channel within weeks of operation.

Periodic inspection of rod finish with a profilometer prevents costly failures. Ask for surface finish documentation when replacing rods.

Damage Assessment: Repair or Replace?

Deciding whether to repair or replace scored rods saves money and prevents unnecessary downtime. Follow this assessment process to make the right choice for your situation.

Step 1: Measure score depth with a ball stylus gauge.

Run the gauge perpendicular across the scoring marks to find the deepest point. Record measurements from several locations along the rod length for accuracy.

For precision, use a dial indicator mounted on a V-block or specialized rod-damage measurement tools. Calipers lack the sensitivity to measure small scoring depths accurately.

Step 2: Compare to the 10% of chrome thickness rule.

Most hydraulic rods have chrome plating between 0.0005″ and 0.001″ thick. Scoring deeper than 10% of this thickness typically requires more than polishing.

Use this quick calculation:

Chrome thickness × 0.10 = Maximum polish depth
Example: 0.0008″ chrome × 0.10 = 0.00008″ maximum polish depth

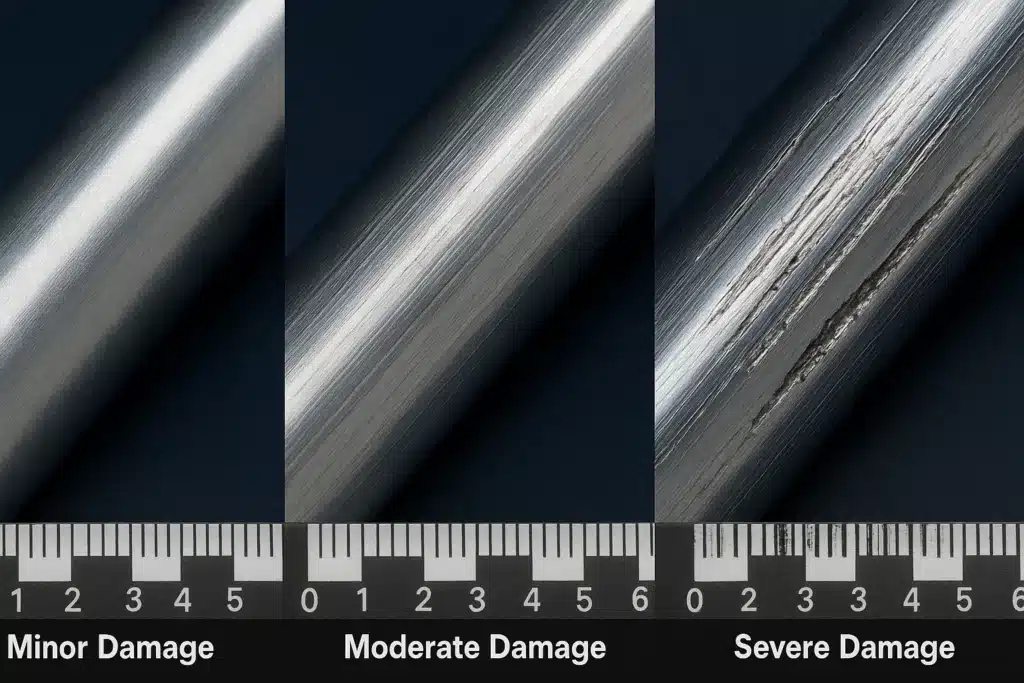

Decision Table: Polish, Rechrome, or Replace

Damage Level	Scoring Depth	Visual Appearance	Recommended Action
Light	Under 0.0001″	Visible lines, no tactile feel	Polish with 600-grit emery
Moderate	0.0001″-0.0005″	Catches fingernail	Spot rechrome damaged area
Severe	Over 0.0005″	Deep grooves	Full rod replacement
Any scoring + bent rod	Any depth	Scoring + curvature	Full rod replacement

Consider your equipment’s criticality before deciding. Critical applications may justify replacement even with moderate scoring.

Field‑Tested Prevention Tactics

Preventing rod scoring costs far less than repairing damaged cylinders. These proven strategies extend rod life and reduce maintenance expenses.

Cleanliness Control

Contamination causes 80% of hydraulic system failures. A strict cleanliness program dramatically reduces rod scoring risk.

Install 10-micron filters on both pressure and return lines. Beta ratios of 200 or higher capture the most damaging particles before they reach your cylinders.

Follow this field-tested maintenance schedule:

Change filters every 500 operating hours
Test oil cleanliness quarterly using patch test kits
Flush systems after major repairs or component failures
Keep reservoir breathers clean and functional

New oil isn’t automatically clean oil. Filter all fluid before adding it to your system with portable filter carts.

Browse filtration options

Alignment & Rod Guidance

Proper cylinder mounting prevents side-loading that causes scoring. Attention to alignment during installation pays dividends in extended rod life.

Torque clevis mount bolts to manufacturer specifications in this sequence:

Hand-tighten all mounting bolts
Torque to 50% of spec in alternating pattern
Final torque to full spec (typically 85-110 ft-lbs for 5/8″ bolts)

Upgrade standard bushings to spherical bearings when possible. These self-aligning components allow small adjustments that reduce side-loading by up to 70%.

Check alignment annually or after impacts. Even small shifts in mounting can create scoring conditions over time.

Seal & Wiper Upgrades

Standard seals work fine in ideal conditions. Upgrade your sealing system for longer rod life in harsh environments.

Double-lip wipers form two defense layers against contamination. These enhanced wipers trap particles that would otherwise enter your cylinder and cause scoring.

Premium rod seal enhancements include:

PTFE-energized seals reduce friction by 40% over standard designs
Polyurethane wipers resist abrasive particles better than rubber
Bronze-filled PTFE buffer rings prevent metal-to-metal contact
Spring-loaded wipers maintain contact even with minor rod wobble

Match seal compounds to your operating conditions. High-temperature applications need different materials than cold-weather operations.

View our seal upgrade kits

Proper Lubrication & Fluid Choice

The right hydraulic fluid prevents scoring by maintaining a protective film between rod and seals. Choose fluid based on your operating conditions.

Zinc-based fluids provide good anti-wear protection but can form deposits that lead to scoring. Zinc-free formulations stay cleaner longer in high-temperature applications.

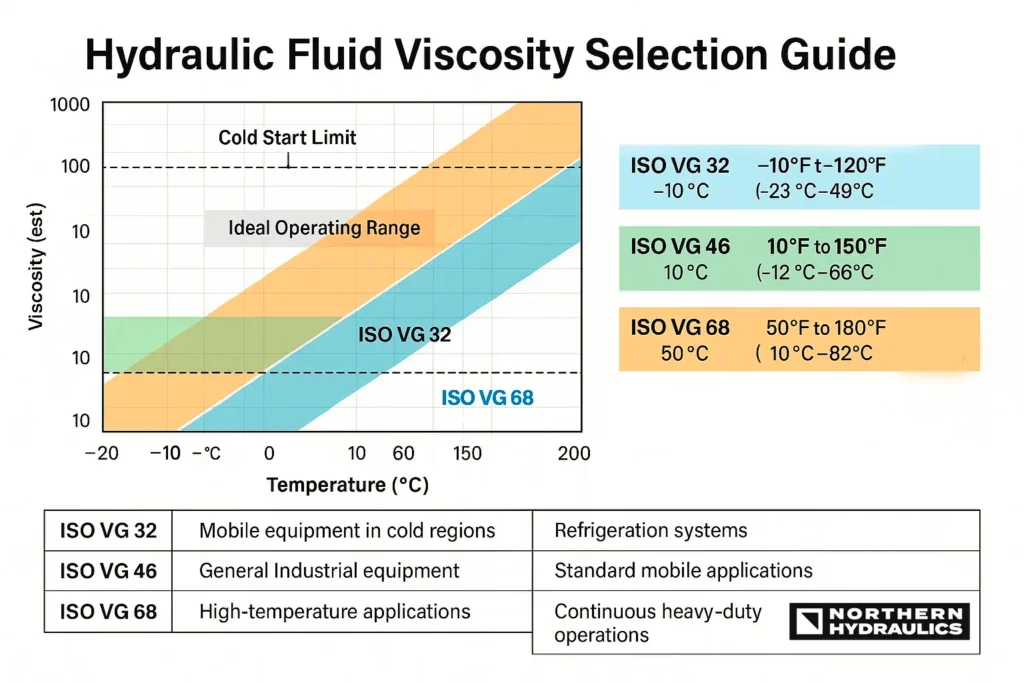

Select viscosity based on your operating temperature range:

ISO VG 32 for cold environments (-10°F to 120°F)
ISO VG 46 for moderate climates (10°F to 150°F)
ISO VG 68 for hot operations (50°F to 180°F)

Add 2-5% more fluid than recommended to maintain full reservoir levels. Low fluid levels accelerate contamination buildup that leads to scoring.

Check fluid color weekly. Darkening indicates oxidation or contamination that can damage rod surfaces.

Shop quality hydraulic oil here

Repair Methods (How‑To Schema Section)

Follow these repair techniques based on your damage assessment. Each method works best for specific scoring severity levels.

Light Scoring: Polish & Hone

Light scoring responds well to careful polishing. This technique removes surface scratches without reducing rod diameter significantly.

Required tools:

600-grit emery cloth
Clean shop towels
Hydraulic oil
Safety glasses and gloves
Rod rotating fixture or lathe

Step-by-step process:

Clean the rod thoroughly with solvent to remove all debris
Secure the rod in a rotating fixture at 300-400 RPM
Apply light oil to the damaged area
Hold emery cloth against rod with firm, even pressure
Create cross-hatch pattern by moving cloth side-to-side
Complete 10-15 passes, rotating cloth to fresh sections
Wipe clean and inspect with bright light

Never use sandpaper coarser than 600-grit. Coarser abrasives create deeper scratches that worsen scoring issues.

Moderate Scoring: Spot Rechrome

Deeper scoring requires chrome removal and reapplication. This process restores the rod surface without full replacement costs.

Professional process overview:

Mask undamaged areas with specialized plating tape
Grind down to base metal around scored section
Apply flash-chrome coating (0.001″) through electroplating
Precision-grind new chrome to match original diameter
Polish to 0.2 µm Ra finish with diamond compound

Spot rechroming costs 30-50% less than full rod replacement. This process takes 2-3 days at a qualified hydraulic repair shop.

Severe Scoring: Rod Replacement

Severe scoring or bent rods require complete replacement. Proper sizing ensures your new rod meets original specifications.

Rod replacement sizing checklist:

Measure outside diameter to 0.0001″ precision
Verify full stroke length including cushion
Document thread size and pattern on rod end
Note any special plating requirements
Check for unusual mounting hardware

Choose between OEM replacement rods or custom-machined options. OEM parts match original specs exactly but often cost more than custom alternatives.

Custom rods allow material upgrades like:

Induction-hardened carbon steel for better load capacity
Ceramic coatings for corrosion resistance
Nickel-chrome composite plating for extreme environments

Get cylinder replacement quote

Post‑Repair Inspection

Verify your repair quality before returning cylinders to service. Proper testing prevents premature failures and repeat repairs.

Required inspection tools:

Dial indicator with magnetic base
Pressure testing rig with gauge
Clean hydraulic fluid
Safety shield
Inspection light

Follow this testing sequence:

Mount rod in V-blocks at each end
Set dial indicator against rod middle
Rotate rod slowly, watching for deviation
Maximum allowable runout: 0.002″ per foot of rod length

Perform leak-down testing at 1,500 PSI for at least one hour. Monitor pressure drop—anything over 5% indicates rod seal issues or remaining scoring problems.

Wipe the rod with clean white paper after testing. Any visible particles indicate contamination that needs addressing.

Cost & Downtime Calculator 🎯

Estimate repair costs and downtime with our interactive calculator. Plan your maintenance budget with accurate projections.

FAQs on Rod Scoring (FAQPage Schema)

Can I polish minor rod scoring myself?

Yes, you can polish light scoring yourself with the right tools. Use only 600-grit or finer emery cloth with light oil. Work in a cross-hatch pattern and avoid removing too much material. Stop immediately if scoring doesn’t improve after 2-3 passes.

What grit emery cloth is safe for chrome rods?

Never use emery cloth coarser than 600-grit on hydraulic rods. Finer grits (800-1200) work better for final polishing. Standard sandpaper damages hard chrome plating and creates worse scoring problems. Always apply light oil during polishing to reduce heat.

How long will a rechromed rod last?

Professionally rechromed rods typically last 80-90% as long as new rods when properly installed. Quality rechrome jobs include proper base preparation and sufficient chrome thickness (0.0005-0.001″). The expected lifetime varies based on application, fluid cleanliness, and load conditions.

Does rod scoring always cause cylinder drift?

Not immediately. Light scoring may not cause noticeable drift at first. However, all scoring eventually leads to seal damage and internal leakage. Higher system pressures can temporarily mask drift symptoms by forcing damaged seals against the rod.

Learn more about cylinder drift

When to Call the Pros

Some hydraulic rod problems exceed typical DIY repair capabilities. Know when to order a replacement cylinder to avoid costly downtime.

Replace your cylinder when you observe these warning signs:

Score depth exceeds 0.005 inches (about the thickness of a credit card)
Rod shows bend greater than 0.02 inches per foot
Hard chrome plating flakes or peels from the base metal
Multiple failure points exist on the same rod
Barrel shows internal scoring or damage

Attempting repairs beyond your capabilities risks more expensive damage. Order a replacement cylinder when damage reaches these thresholds.

Conclusion & Next Steps

Rod scoring threatens your equipment’s reliability and efficiency. Regular inspection catches problems before they lead to complete failure.

Take these preventive actions today:

Inspect all cylinder rods during your next maintenance cycle
Upgrade to proper filtration that removes scoring-causing particles
Document your findings with photos for future comparison
Follow proper mounting procedures to eliminate side-loading

Remember that most rod scoring starts with contamination. A clean hydraulic system dramatically reduces repair frequency and extends component life.

Ready to learn more? Our step-by-step rebuild guide shows you how to disassemble, inspect, and rebuild cylinders correctly when replacement becomes necessary.

View cylinder rebuild guide
