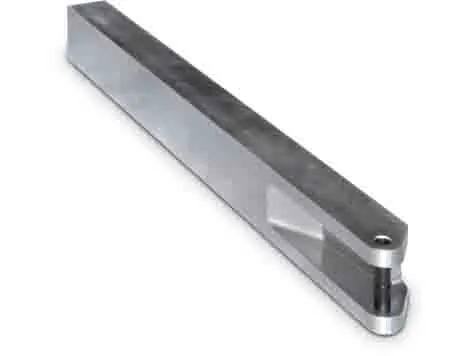

WTE-Series, Extended Reaction Arm

How to Choose a WTE-Series Extended Reaction Arm

Match the arm to your wrench first, then confirm it reaches the surface you intend to react against. Check these points before ordering:

• Wrench series and drive size: An extended reaction arm is built for a specific square-drive wrench family. Confirm it is rated for the WTE-Series and the drive size on your tool.
• Reach / extended length: Measure from the wrench centerline to the fixed point you plan to react against. The arm must be long enough to clear flanges, fittings, or adjacent nuts.
• Material and finish: Reaction arms are typically heat-treated alloy steel; verify the material can handle the torque transmitted at the contact foot.
• Rating / capacity: The arm should carry the full torque output of the wrench it serves. Hedge against undersizing — confirm the rated capacity with us if it is not stamped on the part.
• Application and reaction surface: Note whether you are reacting against an adjacent nut, a stud, or a structural member, since that affects foot shape and contact angle.

Which Reaction Arm Is Right for the Job?

An extended arm is the right call when a standard arm cannot reach a usable reaction point. If your wrench can react closer to the joint, a standard reaction arm for PTW and ETW-Series may be the simpler fit. For other square-drive tools, compare the broader range of square drive torque wrench accessories, or the Enerpac SRSX-Series extended reaction arms if you run that tool family. When the reaction point is a second nut on the same bolt, a back-up spanner holds it while the wrench turns. If you are unsure which arm fits your tool, send us the wrench series and drive size and we will confirm it.

Complete the System

A reaction arm is one part of a bolting setup. Pair it with the right power and plumbing: a hydraulic pump sized to drive the wrench, replacement hydraulic cylinders for related bolting and lifting tasks, and the hydraulic fittings that connect pump to tool. Browse the full range of torque wrench accessories to round out the kit.

Cross-Referencing an Obsolete Reaction Arm

Northern Hydraulics has cross-referenced bolting components since 1963, and reaction arms are a common cross-reference because part markings wear off and older tool series get retired. If your arm is unmarked, discontinued, or no longer listed, give us the wrench it mounts to, the drive size, and the reach you need, and we will identify an equivalent. Request a cross-reference.
