Enerpac XLP workshop hydraulic presses are floor-standing, high-pressure presses built for pressing, straightening, bending, and bearing work in the maintenance shop. Each XLP press pairs a heavy-duty welded frame with a 10,000 PSI (700 bar) Enerpac cylinder and pump, with tonnage, stroke, and throat clearance set by model. If you are matching an XLP press to a job or replacing an older floor press, send your specs for a cross-reference.

Filter by:

Clear

$Minimum Price - Maximum Price

Cylinder Action

Clear

Double Acting
Single Acting

Stroke Ranges

Clear

Valves Amperage Rating

Clear

1.21A for DC 24V
2.50A for DC 12V

Valves Supply Voltage

Clear

110VAC
12VDC
24VDC

Max Flow Rate

Clear

13.2 gpm
24.0 gpm

Ports Out

Clear

G1/2" BSPP Straight Thread
SAE-10
SAE-12
SAE-16

Ports In

Clear

G1" BSPP Straight Thread
SAE-12
SAE-16
SAE-20

Temperature Range

Clear

-13º to 150ºF
-13º to 180ºF
-40º to 180º F

Gauge Type

Clear

All Stainless Steel Gauge
Compound Dry Gauge
Glycerine-filled Gauge

Measuring System

Clear

psi
psi, bar

Connection Size

Clear

1/2” NPT
1/4” NPT
1/8” NPT
7/16-20 SAE

Case Material

Clear

304 Stainless Steel Case & Bezel
Steel

Accuracy

Clear

1.6% FSD
1% FSD
2% FSD

Dial Size

Clear

1.5 inches
2 inches
2.5 inches
4 inches

Adapters Material

Clear

Brass
Carbon Steel
Domestic Steel

Return Type

Clear

Double-Acting
Single-Acting (Load Return)
Single-Acting (Spring Return)

Mounting Flange

Clear

2 & 4 Bolt / SAE B / 4" Pilot
2 Bolt / SAE A / 3.25" Pilot
2 Bolt / SAE B / 4.00" Pilot
4 Bolt Std / 1.748 Dia / .120 Pilot

Porting

Clear

NPT - 3/8"
ORB - 6

PSI

Clear

2,500
2500

Style

Clear

Accessories
DC Power Units - Electric Over Hydraulic

Valve Type

Clear

Double Acting
No Valve/Pump Station
Single Acting

Voltage

Clear

Mounts

Clear

"L" Bracket Style
Bell Housing Style
Jaw/Spider Style Coupling

Shift Cables

Clear

36 - 72"
36"

System

Clear

Closed Center
Open Center

Select...

Clear

70-1790 SSu

Cylinder PSI

Clear

2500 PSI
3500 PSI

Cylinder Rod Type

Clear

Chrome Plated

Fitting Group

Clear

Fluid Connector

Fitting Division

Clear

Hose Products
Parflex
Quick Coupling

Operating Temp

Clear

-40°F to +212°F (-40°C to +100°C)
-40°F to +257°F (-40°C to +125°C)

Measurement System

Clear

Inch
Metric

Cone Angle

Clear

24°
60°

Connection

Clear

External
Internal

Movement Type

Clear

Rigid
Swivel

Drop Length

Clear

Long Drop
Short Drop

Pilot Length

Clear

Long Pilot
Short Pilot

Shaft Type

Clear

Port Type

Clear

Case Drain

Clear

Item SKU: XLP506P802U

Enerpac XLP506P802U 50 Ton Workshop Hydraulic Press, RC506 Single-Acting Cylinder, P802 Hand Pump

$9,303.48

4.39 out of 5

33 Reviews

Item SKU: XLP256P392U

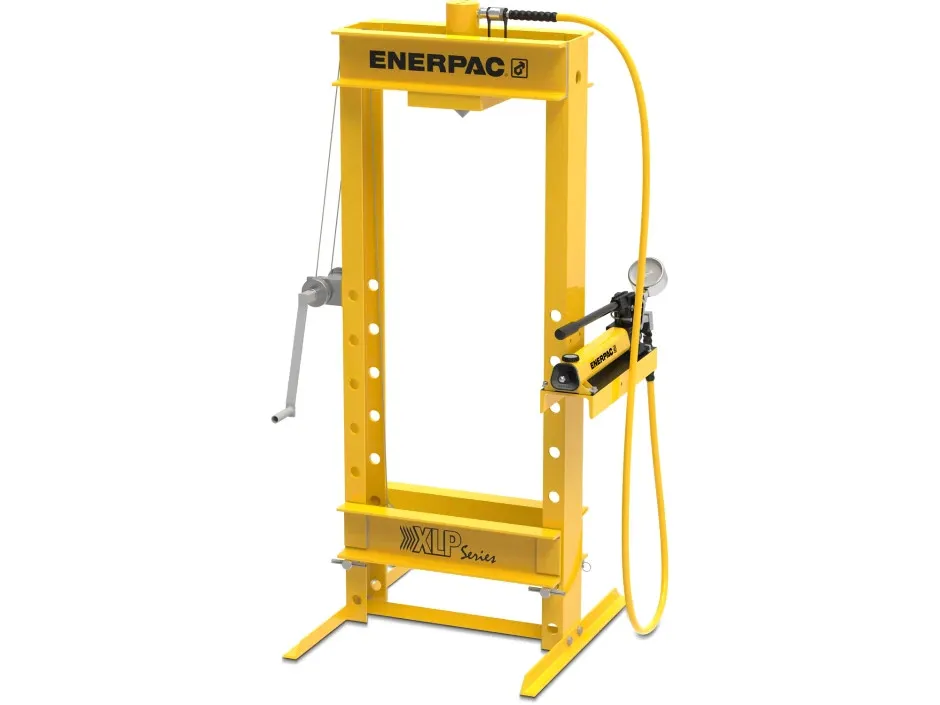

Enerpac XLP256P392U 25 Ton Workshop Hydraulic Press, RC256 Single-Acting Cylinder, P392 Hand Pump

$5,058.98

0 out of 5

0 Reviews

Item SKU: XLP256XA11GU

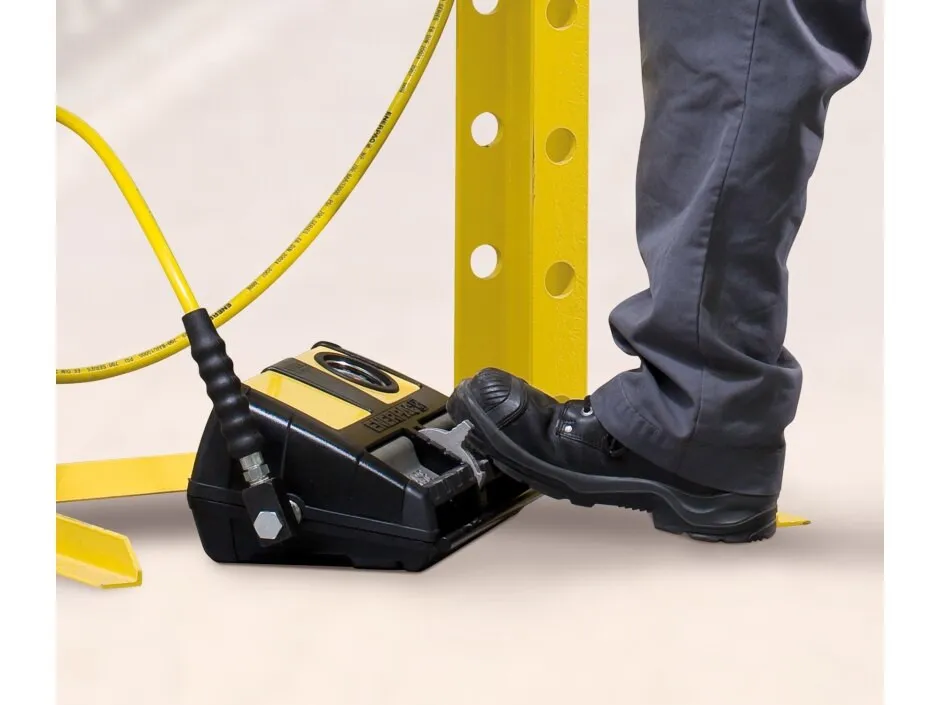

Enerpac XLP256XA11GU 25 Ton Workshop Hydraulic Press, RC256 Single-Acting Cylinder, XA11G Air Pump

$6,057.13

0 out of 5

0 Reviews

Item SKU: XLP506XA12GU

Enerpac XLP506XA12GU 50 Ton Workshop Hydraulic Press, RC506 Single-Acting Cylinder, XA12G Air Pump

$9,933.23

0 out of 5

0 Reviews

Item SKU: XLP756XA12GU

Enerpac XLP756XA12GU 75 Ton Workshop Hydraulic Press, RC756 Single-Acting Cylinder, XA12G Air Pump

$13,264.59

0 out of 5

0 Reviews

Item SKU: XLP5013ZEBU

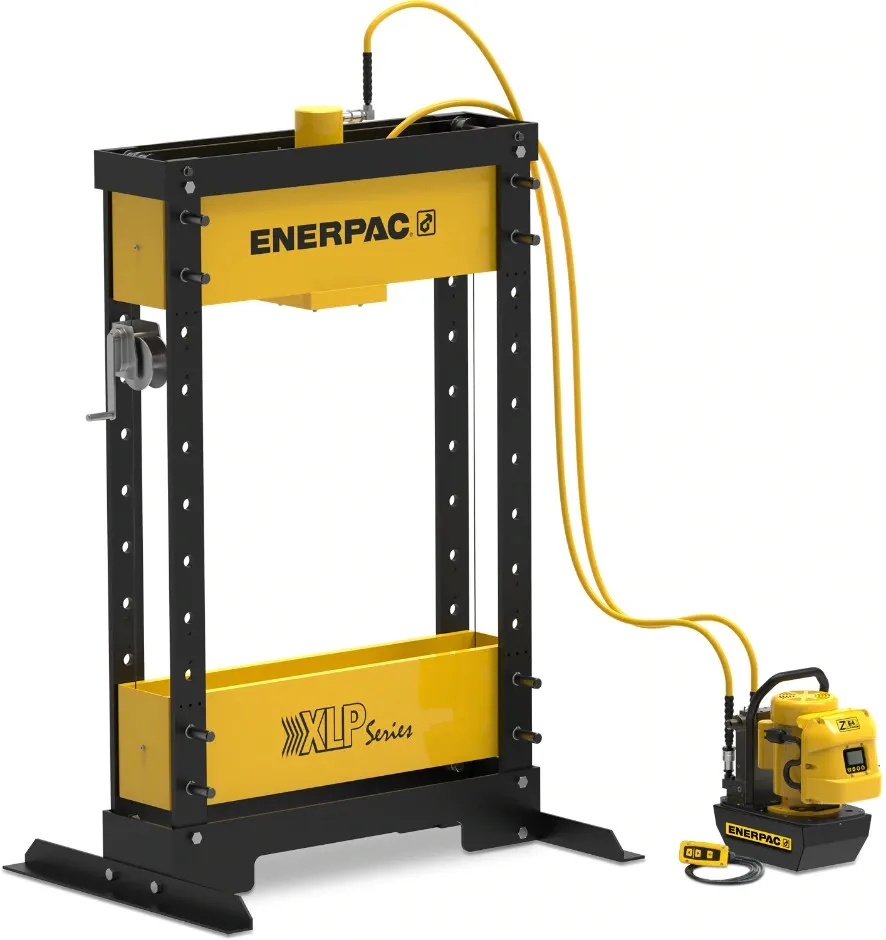

Enerpac XLP5013ZEBU 50 Ton Workshop Hydraulic Press, RR5013 Double-Acting Cylinder, ZE4408SB Electric Pump

$15,609.35

0 out of 5

0 Reviews

Item SKU: XLP5013ZEIU

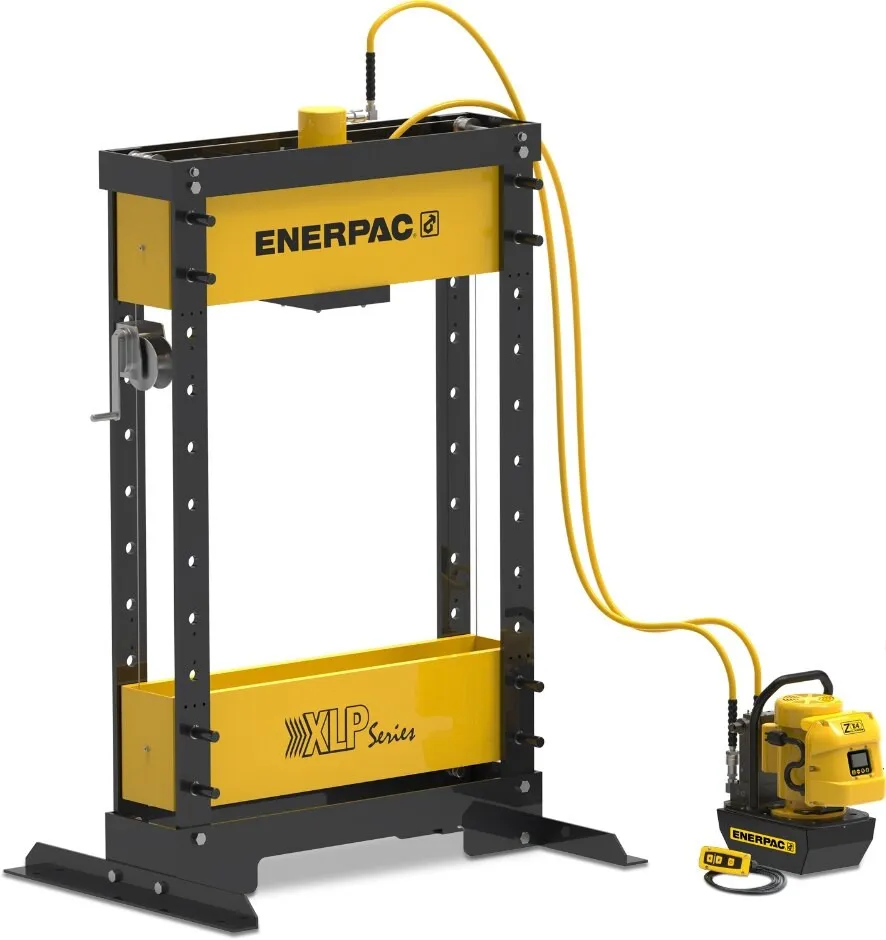

Enerpac XLP5013ZEIU 50 Ton Workshop Hydraulic Press, RR5013 Double-Acting Cylinder, ZE4408SI Electric Pump

$15,609.35

0 out of 5

0 Reviews

How to Choose an Enerpac XLP Workshop Press

Workshop presses are sized to the largest job they need to handle, then matched to the available floor space and ram travel. Confirm these specs before you order:

Tonnage: Match the rated press capacity to the heaviest pressing, straightening, or removal force you expect; size up rather than running a press at its limit.
Stroke: Cylinder travel determines how far the ram advances in one pass — verify it covers your part thickness plus tooling clearance.
Throat and daylight: Throat width sets the widest workpiece between the frame uprights; daylight (vertical opening) sets the tallest part you can fit with the bed and ram retracted.
Frame type: XLP presses use a welded floor frame; confirm bed height, footprint, and whether your job needs a movable cylinder or adjustable bolster.

Which Enerpac Press Is Right for the Job?

The XLP floor press suits high-tonnage shop work where you need full daylight and a fixed footprint. For an H-frame floor press configuration, compare the Enerpac IP-Series, H-Frame Presses. When the work is smaller or fits a benchtop, the Enerpac VLP-Series, Bench Hydraulic Presses and the Enerpac A-Series, C-Clamp, Arbor and Bench Frame Presses cover arbor and C-clamp tasks. Browse the full High Pressure Presses range to compare tonnage and frame styles side by side.

Complete the System

An XLP press runs on a 10,000 PSI hydraulic circuit, so the pump and hose rating must match the cylinder. Pair the press with a hand, air, or electric pump from Hydraulic Pumps, and connect it with high-pressure Hydraulic Hoses rated for the same working pressure. If your shop also handles bolted joints, High Pressure Bolting Tools run on the same pump and hose standard.

Cross-Referencing an Obsolete XLP Press

If you have an older or discontinued Enerpac floor press, we can cross-reference a current XLP model or replacement cylinder, pump, and hose by tonnage, stroke, and frame dimensions. As a stocking distributor since 1963, we keep Enerpac high-pressure components moving from Great Falls. Send your model number or measurements and we will confirm the equivalent — request a cross-reference.

Enerpac XLP-Series, Workshop Hydraulic Presses – Frequently Asked Questions

How do I size an Enerpac XLP press for my shop?

Start with the heaviest job the press will see and pick a tonnage above that figure, then confirm the stroke covers your part thickness plus tooling and that throat width and daylight fit your largest workpiece. Measure your available floor space and bed height before ordering.

What working pressure do Enerpac XLP presses run at?

Enerpac high-pressure equipment, including XLP presses, operates at 10,000 PSI (700 bar). The pump and hoses you pair with the press must carry the same rating to run safely.

What is the difference between throat and daylight on a press?

Throat is the horizontal clearance between the frame uprights, which limits how wide a part you can press. Daylight is the vertical opening between the bed and the retracted ram, which limits how tall a part will fit. Both vary by XLP model, so check the spec sheet against your parts.

XLP floor press or IP-Series H-frame press — which should I choose?

Both are floor-standing high-pressure presses; the choice comes down to frame layout, tonnage, and daylight. If you need an H-frame configuration, compare the Enerpac IP-Series, H-Frame Presses against the XLP on capacity and opening before deciding.

What jobs is an XLP workshop press used for?

XLP presses handle pressing, straightening, bending, and bearing or bushing removal and installation in the maintenance shop. The right tonnage and stroke depend on the part, so match the press to your heaviest and largest job.

Do I need a separate pump for an XLP press?

XLP presses run on a 10,000 PSI hydraulic circuit, so you pair them with a matching hand, air, or electric pump and high-pressure hose. Browse Hydraulic Pumps rated for the same pressure as the press cylinder.

Does Northern Hydraulics stock XLP presses?

We stock Enerpac high-pressure presses and components and ship from Great Falls, MT. Lead times vary by model and tonnage, so confirm availability when you send your specs.

Can you cross-reference a discontinued Enerpac floor press?

Yes. Send the model number or the tonnage, stroke, and frame dimensions of your old press and we will match a current XLP press or replacement cylinder, pump, and hose. Request a quote.
