Home » Hydraulics Shop » Honda Engines » Honda GX Series Engines » Honda GX270 Series Engines

Honda GX270 Series Engines

Looking for help or a discount?

Call (800) 823-4937

The Honda GX270 engine is a 270cc commercial-duty single-cylinder OHV gas engine rated around 8.5 HP gross, built to drive hydraulic power units, pressure washers, generators, pumps and compactors that run long hours under load. What sets the GX270 apart is its cast-iron cylinder sleeve, dual-element air cleaner and Honda's OHV design, which together hold compression and fuel economy across heavy duty cycles. If you are replacing a discontinued engine and need to confirm shaft size, mounting pattern and HP before you order, send your specs for a cross-reference.

Filter by:

Clear

$Minimum Price - Maximum Price

Cylinder Action

Clear

Double Acting
Single Acting

Stroke Ranges

Clear

1.21A for DC 24V
2.50A for DC 12V

Clear

110VAC
12VDC
24VDC

Clear

13.2 gpm
24.0 gpm

Clear

G1/2" BSPP Straight Thread
SAE-10
SAE-12
SAE-16

Clear

G1" BSPP Straight Thread
SAE-12
SAE-16
SAE-20

Clear

-13º to 150ºF
-13º to 180ºF
-40º to 180º F

Clear

All Stainless Steel Gauge
Compound Dry Gauge
Glycerine-filled Gauge

Clear

psi
psi, bar

Clear

1/2” NPT
1/4” NPT
1/8” NPT
7/16-20 SAE

Clear

304 Stainless Steel Case & Bezel
Steel

Clear

1.6% FSD
1% FSD
2% FSD

Clear

1.5 inches
2 inches
2.5 inches
4 inches

Clear

Brass
Carbon Steel
Domestic Steel

Clear

Double-Acting
Single-Acting (Load Return)
Single-Acting (Spring Return)

Clear

2 & 4 Bolt / SAE B / 4" Pilot
2 Bolt / SAE A / 3.25" Pilot
2 Bolt / SAE B / 4.00" Pilot
4 Bolt Std / 1.748 Dia / .120 Pilot

Clear

NPT - 3/8"
ORB - 6

Clear

2,500
2500

Clear

Accessories
DC Power Units - Electric Over Hydraulic

Clear

Double Acting
No Valve/Pump Station
Single Acting

Clear

"L" Bracket Style
Bell Housing Style
Jaw/Spider Style Coupling

Clear

36 - 72"
36"

Clear

Closed Center
Open Center

Select...

Clear

70-1790 SSu

Cylinder PSI

Clear

2500 PSI
3500 PSI

Cylinder Rod Type

Clear

Chrome Plated

Fitting Group

Clear

Fluid Connector

Fitting Division

Clear

Hose Products
Parflex
Quick Coupling

Operating Temp

Clear

-40°F to +212°F (-40°C to +100°C)
-40°F to +257°F (-40°C to +125°C)

Measurement System

Clear

Inch
Metric

Cone Angle

Clear

24°
60°

Connection

Clear

External
Internal

Movement Type

Clear

Rigid
Swivel

Drop Length

Clear

Long Drop
Short Drop

Pilot Length

Clear

Long Pilot
Short Pilot

Clear

Serving hydraulics since 1963
15,000+ parts ready to order from Black Eagle, MT
Call (800) 823-4937

Bestseller

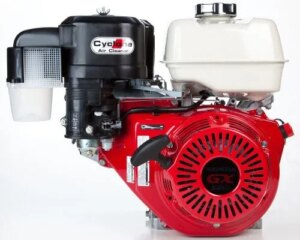

Item SKU: GX270-QC9

GX270-QXC9

Price on request — fast quote
Item SKU: GX270-HA2

GX270-HA2 HONDA ENGINE

Price on request — fast quote
Item SKU: GX270-VA2

GX270-VA2 HONDA ENGINE

Price on request — fast quote
Bestseller

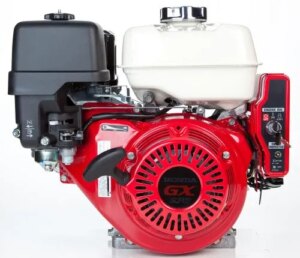

Item SKU: GX270-QAE2

GX270-QAE2 HONDA ENGINE, ELECTRIC START

4.31 out of 5

13 Reviews

Price on request — fast quote
Bestseller

Item SKU: GX270-QA2

GX270-QA2 HONDA ENGINE

4.36 out of 5

14 Reviews

Price on request — fast quote
Bestseller

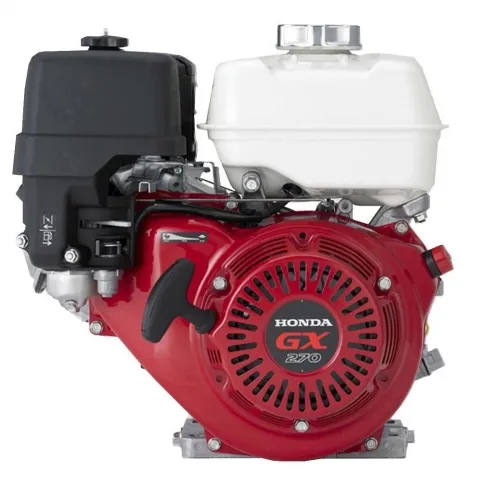

Item SKU: GX270-PA2

GX270-PA2 HONDA ENGINE

4.67 out of 5

12 Reviews

Price on request — fast quote
Item SKU: GX270-RA2

GX270-RA2 HONDA ENGINE

Price on request — fast quote

How to Choose a Honda GX270 Engine

The GX270 ships in several shaft and feature configurations, so match the engine to the equipment it bolts onto before you order. Confirm these points against the old engine or the driven component:

Displacement and power: 270cc class, roughly 8.5 HP gross at the flywheel; usable shaft power is lower and varies by load and RPM.
Crankshaft type and size: tapered, straight keyed or threaded shafts are offered, commonly 1 in. (25.4 mm) on Q-type or 3/4 in. on others — verify diameter, length and keyway.
Mounting and rotation: bolt pattern, oil-fill orientation and counterclockwise PTO rotation must match the pump or generator coupling.
Start type and fuel system: recoil or electric start, with carbureted gasoline as standard.
Application duty: rate the engine for continuous load, not peak — sizing for hydraulic and generator service leaves headroom.

Which Honda GX Engine Is Right for the Job?

The GX270 sits in the middle of Honda's commercial GX range, so step up or down by horsepower and displacement based on the load you need to turn. For lighter pumps and washers, the Honda GX120 Series Engines and Honda GX160 Series Engines cover the smaller end. The Honda GX240 Series Engines are the closest neighbor below the GX270, while the Honda GX390 Series Engines add displacement and power for larger hydraulic units. Browse the full Honda GX Series Engines lineup to compare shaft options across the range.

Complete the System

A GX270 is the prime mover in a hydraulic system, not the whole package. Pair it with the components it drives so the assembly matches your flow and pressure targets: size a Hydraulic Pump to the engine's usable HP and target GPM, route flow to a Hydraulic Motor for rotary work, or actuate a Hydraulic Cylinder for linear push and lift. Confirming engine HP against pump displacement up front avoids stalling the unit under load.

Cross-Referencing an Obsolete Honda GX270

If the equipment you are repowering came with a discontinued engine, the GX270 is a common drop-in once shaft size, mounting pattern and rotation are confirmed. Northern Hydraulics has cross-referenced engines and hydraulic components since 1963, and we can match an old or unbranded engine to a current GX270 configuration. Send the nameplate data, shaft measurements and a photo of the mounting face, and we will confirm fit before you buy — request a cross-reference.

Honda GX270 Series Engines – Frequently Asked Questions

How much horsepower does the Honda GX270 produce?

The GX270 is in the 270cc class and is rated at roughly 8.5 HP gross at the flywheel. Usable shaft horsepower is lower than the gross figure and depends on operating RPM and load, so size driven equipment to the continuous rating rather than the peak.

What crankshaft size and shaft type does the GX270 use?

The GX270 is offered in tapered, straight keyed and threaded shaft versions, commonly 1 in. (25.4 mm) on Q-type or 3/4 in. on other variants. Confirm shaft diameter, length, keyway and rotation against your pump or generator coupling before ordering.

How do I measure my old engine to find the right GX270 replacement?

Measure the crankshaft diameter and length, note the keyway or thread, check the bolt mounting pattern, and confirm the PTO rotation direction. Photograph the nameplate and mounting face as well — those details determine which GX270 configuration drops in.

What is the difference between the Honda GX270 and the GX390?

The GX390 has larger displacement and more horsepower than the GX270, so it suits heavier hydraulic units and higher-flow pumps. If your equipment is bogging down under load, step up to the Honda GX390 Series Engines; for lighter loads the GX270 or smaller GX models are more efficient.

Can a Honda GX270 power a hydraulic pump?

Yes. The GX270 is widely used to drive hydraulic power units. Match the pump displacement and target GPM to the engine's usable horsepower so the unit holds pressure without stalling. See our Hydraulic Pumps to pair the right pump with the engine.

Does the GX270 come in recoil and electric start versions?

The GX270 is available in recoil-start and electric-start configurations. Electric start adds a starter motor and battery charging, which is common on generators and larger power units, while recoil start keeps the package lighter and simpler.

Is the GX270 a commercial-duty engine?

Yes. The GX270 is part of Honda's commercial GX line, built with an OHV design, cast-iron cylinder sleeve and dual-element air cleaner for long run hours under load. It is intended for equipment that operates continuously rather than occasional homeowner use.

Can you cross-reference an obsolete or unbranded engine to a GX270?

Often, yes. If your equipment shipped with a discontinued engine, send the nameplate data, shaft measurements and a photo of the mounting face and we will confirm whether a current GX270 configuration drops in. Request a quote to start a cross-reference.
