Enerpac GBJ industrial bottle jacks are self-contained hydraulic lifting jacks built for heavy maintenance and machinery positioning, where a compact footprint and high load rating matter more than reach. Specs to confirm before you buy are tonnage capacity, lowered (collapsed) height, and stroke or maximum lift height so the jack fits under the load and raises it the full distance you need. Running an older or discontinued Enerpac model? Match it by capacity and dimensions, or send your specs for a cross-reference.

Bestseller

Item SKU: GBJ050A

How to Choose an Enerpac GBJ Industrial Bottle Jack

Tonnage capacity — the maximum rated load. Size above your heaviest expected load with a margin; never lift past the stamped rating.
Lowered (collapsed) height — the closed height of the jack. It must clear the gap under the load, so measure the lowest point you have to slide the jack into.
Lift / stroke height — how far the ram extends. Confirm the stroke raises the load the full distance required; add an extension screw or saddle if you need more reach.
Type — bottle jacks are vertical-only and self-contained. Verify the jack stands plumb under the load and that the base is wide enough for stable footing.

Which Enerpac Lifting Jack Is Right for the Job?

GBJ bottle jacks suit straight vertical lifts in tight clearances. For powered, repeatable lifting on heavier or production work, compare the Enerpac PR-Series, Electric Pow'r-Riser Lifting Jacks for shop power or the Enerpac PR-Series, Pneumatic Pow'r-Riser Lifting Jacks where compressed air is the available supply. The Enerpac JH-Series, Aluminum and Steel Jacks offer lighter-weight aluminum options for portability, and Trailer Jacks handle tongue and stand duty rather than load lifting. If you are unsure which family fits, match by capacity, lowered height, and lift, and confirm the jack stands vertical under the load.

Complete the System

Pair a bottle jack with the support gear around it. Browse Hydraulic Pumps and Hydraulic Power Units when you move from a hand jack to a powered ram setup, and Hydraulic Cylinders for remote or multi-point lifting that a single bottle jack cannot reach. Enerpac high-pressure tooling runs on a 10,000 PSI (700 bar) system standard, so confirm any pump, hose, or coupler you add is rated to match.

Cross-Referencing an Obsolete Enerpac GBJ Bottle Jack

If your GBJ model number is discontinued or hard to source, the replacement is usually a current jack with the same tonnage, lowered height, and stroke — the equivalent part keeps your procedure unchanged. Send the model number off the jack or your three key dimensions and we will identify the closest in-stock match. Northern Hydraulics has cross-referenced hydraulic equipment since 1963; request a cross-reference.

Enerpac GBJ Industrial Bottle Jacks – Frequently Asked Questions

How do I measure for the right bottle jack?

Measure the clearance gap under the load to set a maximum lowered (collapsed) height, then measure how far you need to raise the load to size the stroke. The jack's closed height must fit in the gap, and its lift must cover the full raise distance with margin.

What tonnage should I choose?

Pick a capacity above your heaviest expected load so you are not lifting at the limit. The rated tonnage is stamped on the jack; never exceed it, and account for off-center or shifting loads that raise the effective force.

What specs define an Enerpac GBJ bottle jack?

The three that drive fit are tonnage capacity, lowered (collapsed) height, and lift or stroke height. Bottle jacks are self-contained and lift vertically only, so base footprint and a plumb stance under the load also matter for stability.

What is the difference between a GBJ bottle jack and an Enerpac Pow'r-Riser jack?

A GBJ bottle jack is a compact, self-contained manual jack for straight vertical lifts in tight clearances. Pow'r-Riser jacks are powered for heavier, repeatable lifting — see the Enerpac PR-Series, Electric Pow'r-Riser Lifting Jacks when shop power is available.

When should I use a hydraulic cylinder instead of a bottle jack?

Use a bottle jack for a single, in-place vertical lift. When you need remote actuation, multi-point lifting, or a powered system, move to Hydraulic Cylinders driven by a pump or power unit.

Can I add a pump or power unit to lift more?

A bottle jack is self-contained, but for higher-volume or remote work you can pair a cylinder with a pump or power unit. Browse Hydraulic Pumps and Hydraulic Power Units, and confirm every component is rated to your system pressure.

Are these jacks in stock and how fast do they ship?

Stocked GBJ jacks ship same day from Great Falls, MT. Availability can change by model and tonnage, so check the product page or ask us to confirm the lead time for the size you need.

My Enerpac GBJ model is discontinued — can you find a replacement?

Yes. Most obsolete jacks cross-reference to a current model with matching tonnage, lowered height, and stroke. Send the old model number or those three dimensions and we will identify the equivalent. Request a quote.

Enerpac GBJ Series Industrial Bottle Jacks

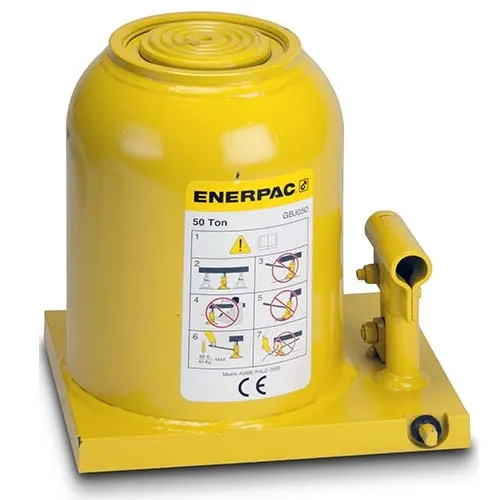

Enerpac 50 Ton Industrial Bottle Jack, GBJ050

Enerpac 20 Ton Short Industrial Bottle Jack, GBJ020S

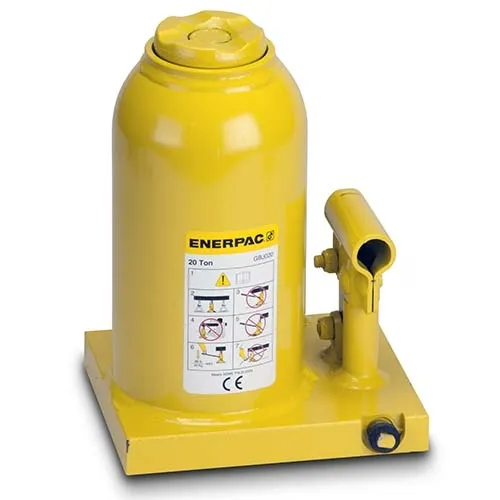

Enerpac 20 Ton Industrial Bottle Jack, GBJ020

Enerpac 02 Ton Industrial Bottle Jack, GBJ002

Enerpac 02 Ton Industrial Bottle Jack with 18.11" Stroke, GBJ002LA

Enerpac 03 Ton Industrial Bottle Jack, GBJ003

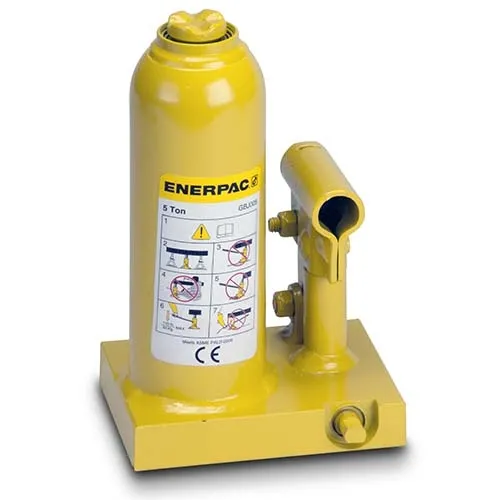

Enerpac 05 Ton Industrial Bottle Jack, GBJ005

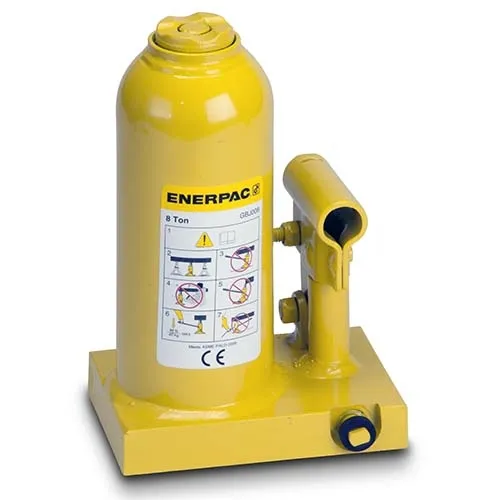

Enerpac 08 Ton Industrial Bottle Jack, GBJ008

Enerpac 10 Ton Industrial Bottle Jack, GBJ010

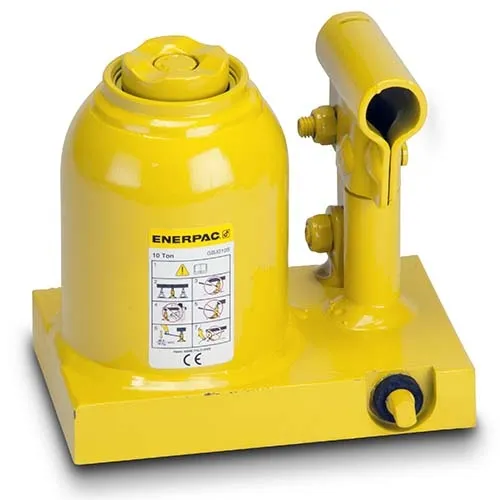

Enerpac 10 Ton Short Industrial Bottle Jack, GBJ010S

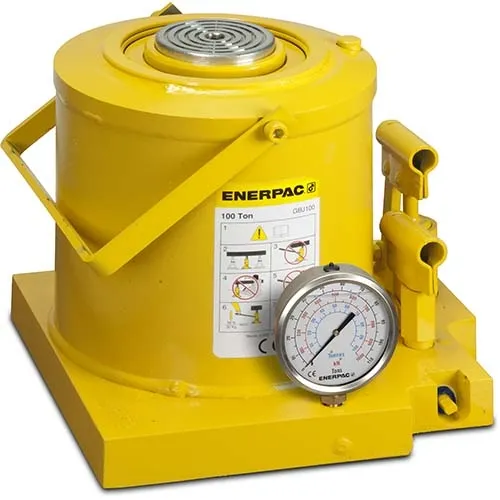

Enerpac 100 Ton Industrial Bottle Jack, GBJ100

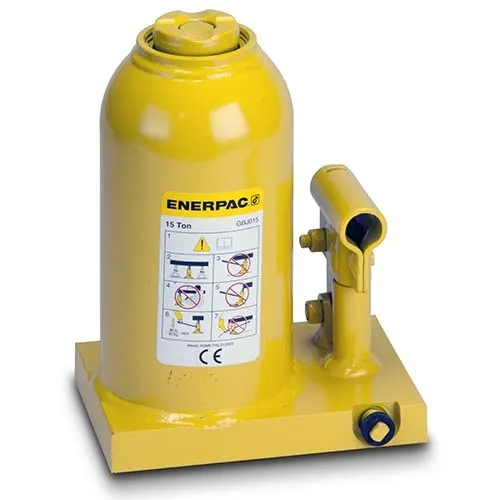

Enerpac 15 Ton Industrial Bottle Jack, GBJ015

Enerpac 30 Ton Industrial Bottle Jack, GBJ030
