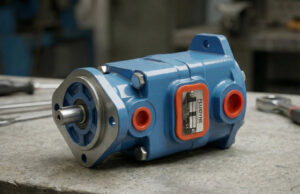

Double Stage Vane Pumps

Discover our complete range of double stage vane pumps, from compact V2010 Series to powerful 4535V(Q) models. These tandem pumps deliver higher pressure or dual circuit capability in a single, space-saving package.

Your Source for Double Stage and Tandem Vane Pumps

Think of a double stage vane pump as two pumps working together in perfect harmony. Like a two-stage rocket that uses multiple boosters to reach orbit, these pumps combine two pumping chambers to achieve what single pumps can’t – either boosting pressure to higher levels or running two independent hydraulic circuits from one motor. This dual capability makes them the Swiss Army knife of hydraulic pumps.

Double stage vane pumps excel where space is tight but performance demands are high. Connect them in series for pressures up to 3000 PSI, or run them in parallel for two separate circuits at different flows. From the compact V2010 Series to the high-flow 4535V(Q) models, we stock every configuration plus cartridge kits and replacement parts. Browse our series below to find your ideal tandem pump solution.

Request a Personalized Quote Contact Us

Quick Buy

Have a part number? Enter it below.

Explore This Page

Scroll to Products See FAQ
