Enerpac Hydraulic Tools

Looking for help or a discount?

Call (800) 823-4937

Shop Enerpac hydraulic tools built for high-force lifting, pushing, pressing, and bolting work where electric and pneumatic gear runs out of room. This catalog covers Enerpac hydraulic pumps, cylinders, presses, and torque wrenches rated for the brand's standard 10,000 PSI (700 bar) operating pressure, sized by capacity, stroke, and mount so you can match the tool to the load. If you are replacing an obsolete Enerpac unit or matching another maker's part, send your specs for a cross-reference.

Serving hydraulics since 1963
15,000+ parts ready to order from Black Eagle, MT
Call (800) 823-4937

How to Choose an Enerpac Hydraulic Tool

Match the tool to the load and the duty cycle, not just the part number. These four specs drive most selections:

Size — Physical envelope and weight, plus cylinder stroke and collapsed height. Confirm the tool fits the working clearance and reaches the full travel your job needs.
Material — Cylinder bodies, saddles, and plungers are typically alloy steel; some low-height and aluminum models trade capacity for portability. Match the build to whether the tool stays on a bench or travels to the field.
Rating / capacity — Stated in tons of force for cylinders and presses, foot-pounds of torque for wrenches, and flow plus reservoir size for pumps. Enerpac high-pressure tools are rated for the industry-standard 10,000 PSI (700 bar) ceiling. Size capacity above your peak load, never at it.
Application — Lifting, pressing, pulling, bending, or bolting. Single-acting tools spring- or load-return on one port; double-acting tools use hydraulic pressure both ways for controlled retraction under load.

Which Hydraulic Tool Is Right for the Job?

Enerpac tools are self-contained high-pressure units: a pump feeds a cylinder, press, or wrench through couplers at 10,000 PSI, which suits jack-up lifting, pressing, and precise bolt tensioning. For impact and rotary field work driven off a portable power unit, look at Stanley Hydraulic Tools, and for track, tie, and rail-specific gear see Stanley Hydraulic Railroad Tools. If your task is controlled, repeatable bolting torque rather than general force, the Enerpac HMT Torque Wrenches are purpose-built for it, and the broader High Pressure Bolting Tools range covers tensioners and larger square-drive sets. Not sure which line fits? Compare the full Hydraulic Tools catalog.

Complete the System

An Enerpac cylinder or wrench is only one piece of a working setup. You also need a pump to generate pressure, hoses and couplers to carry it, and a gauge to monitor it. Stock the correct fluid and manifolds for your circuit from Enerpac Hydraulic Oil & Manifolds so the tool runs at rated pressure without aeration or coupler mismatch, and pair bolting jobs with the matched pump and reaction arms from the Enerpac HMT Torque Wrenches line.

Cross-Referencing an Obsolete Enerpac Hydraulic Tool

If your Enerpac tool is discontinued or the model number is no longer cataloged, a current equivalent almost always exists at the same capacity, stroke, and pressure rating. Northern Hydraulics has cross-referenced Enerpac parts and competing high-pressure tools since 1963, so a worn-out cylinder, pump, or wrench can usually be matched to an in-stock replacement that mounts and ports the same way. Give us the legacy model number, tonnage, and stroke and request a cross-reference.

Enerpac Hydraulic Tools – Frequently Asked Questions

How do I size an Enerpac cylinder for my job?

Work from peak load and required travel. Pick a capacity in tons that exceeds your heaviest pull or push, then confirm the stroke covers the full distance and the collapsed height fits your clearance. Sizing above the peak load, rather than at it, gives margin for friction, off-center loading, and wear.

What pressure do Enerpac hydraulic tools operate at?

Enerpac high-pressure tools are rated for the industry-standard 10,000 PSI (700 bar) operating ceiling, and pumps, hoses, couplers, and gauges in the system must carry the same rating. Always match every component in the circuit to that pressure so the tool reaches full force safely.

What is the difference between single-acting and double-acting Enerpac cylinders?

Single-acting cylinders extend on hydraulic pressure and return by spring or load weight through one port, which keeps them light and simple. Double-acting cylinders use pressure on both the advance and retract strokes for controlled return under load, which matters for pulling, holding, and overhead work. Choose double-acting when you need powered retraction or precise positioning.

Which Enerpac tool do I need for bolting versus general lifting?

For repeatable, controlled fastener torque, use the Enerpac HMT Torque Wrenches or the wider High Pressure Bolting Tools range. For lifting, pressing, bending, or pulling, a cylinder and pump from this catalog is the right pick. The wrenches are built around a torque value; the cylinders are built around a force value.

How are Enerpac tools different from Stanley hydraulic tools?

Enerpac tools are self-contained high-pressure pump-and-cylinder systems for lifting, pressing, and bolting at 10,000 PSI. Stanley Hydraulic Tools are impact and rotary tools driven by an external portable power unit for field cutting, drilling, and driving, with Stanley Hydraulic Railroad Tools covering track and tie work. Pick by whether you need controlled static force or powered field action.

What pump and accessories do I need to run an Enerpac tool?

You need a pump rated to 10,000 PSI, hoses and couplers matched to that pressure, a gauge, and the correct hydraulic fluid. Source the fluid and manifolds from Enerpac Hydraulic Oil & Manifolds to keep the circuit clean and properly ported so the tool reaches rated force.

Can Enerpac tools cross-reference to other high-pressure brands?

Yes. Because high-pressure tools share the 10,000 PSI standard and common coupler and mounting patterns, a cylinder, pump, or wrench from another maker can usually be matched to an Enerpac equivalent by capacity, stroke, and port type. Send the competing part details and the application for a confirmed match.

My Enerpac model is obsolete. Can you find a replacement?

Most discontinued Enerpac tools have a current equivalent at the same capacity, stroke, and pressure rating. Give us the legacy model number, tonnage or torque value, and stroke, and we will identify an in-stock replacement that mounts and ports the same way. Request a quote.

Enerpac Hydraulic Tools

Products

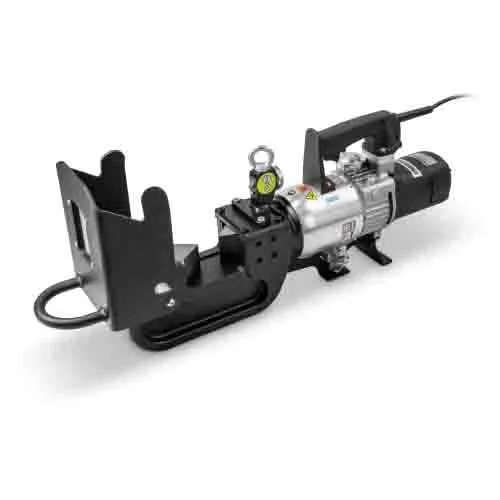

Enerpac ECCE32B Electric Chain Cutter, 52.9-Ton Capacity, 120V, 1.25" Material Diameter

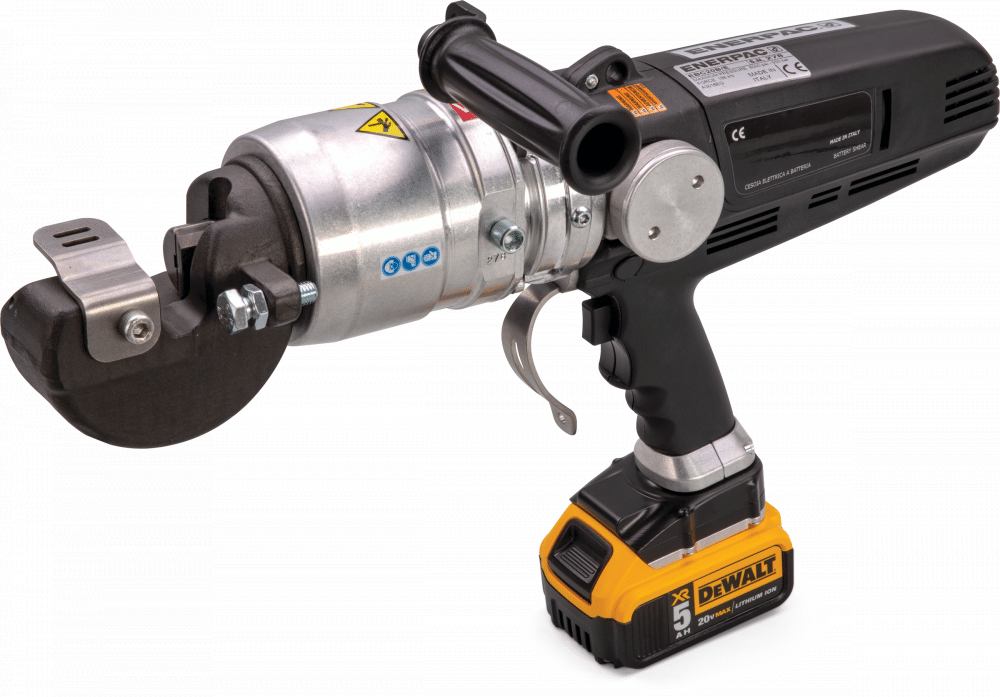

Enerpac EBC20B Cordless Bar Cutter

Enerpac 80-Ton Heavy Duty Caterroller Load Skate, ER80

Enerpac STC-1250H Self-Contained Hydraulic Cutter Set with Hand Pump 20 Ton Capacity

Enerpac SP-50100 Hydraulic Punch and Die Set 50 Ton

Enerpac 30-Ton Heavy Duty Caterroller Leveling Plate, ELP-30

Enerpac 10-Ton Heavy Duty Caterroller Turntable Swivel, ES10

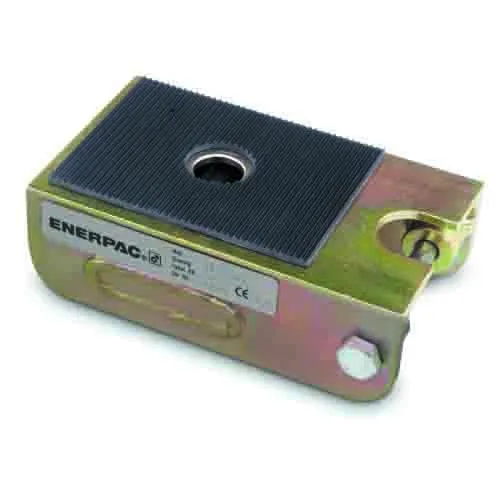

Enerpac 1-Ton Heavy Duty Caterroller Load Skate, ER1

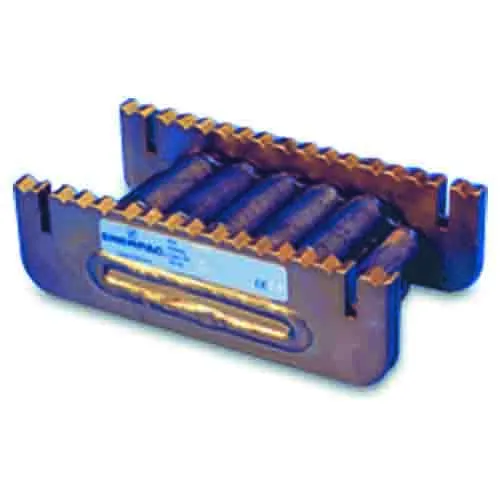

Enerpac 10-Ton Heavy Duty Caterroller Load Skate, ER10

Enerpac 15-Ton Heavy Duty Caterroller Load Skate, ER15

Enerpac 30-Ton Heavy Duty Caterroller Turntable Swivel, ES30

Enerpac 80-Ton Heavy Duty Caterroller Turntable Swivel, ES80

Enerpac 60-Ton Heavy Duty Caterroller Load Skate, ER60

Enerpac EDCH-130 Hydraulic Decommissioning Cutters, Maximum Blade Aperture 5.12"

Enerpac ED12TWS, 12" Extended Drive for PTW & ETW Torque Wrenches in the 1000X,2000X,& 3000X Series

Enerpac ED18TWS, 18" Extended Drive for PTW & ETW Torque Wrenches in the 1000X,2000X,& 3000X Series

Enerpac STC-750H Self-Contained Hydraulic Cutter Set with Hand Pump 4 Ton Capacity

Enerpac ED6TWL, 6" Extended Drive for PTW & ETW Torque Wrenches in the 6000X Series

Enerpac LW16, 16-Ton Vertical Lifting Wedge, 0.83″ Lifting Height

Enerpac WHC-3380 Hydraulic Cutterhead, 3-Ton Capacity

Enerpac WHC-2000 Hydraulic Cutterhead, 13-Ton Capacity

Enerpac LWC16, 16-Ton Vertical Lifting Wedge with Integrated Pump, 0.83″ Lifting Height

Enerpac EFBE-5017B Electric Flat Bar Cutter, 120V, 0.67" Material Diameter

Enerpac WHC-4000 Hydraulic Cutterhead, 8-Ton Capacity

Enerpac EFBE-7015E Electric Flat Bar Cutter, 230V, 0.59" Material Diameter

Enerpac SP-35S Hydraulic Punch and Standard Die Set 35 Ton

Enerpac EDCH-145 Hydraulic Decommissioning Cutters, Maximum Blade Aperture 5.70"

Enerpac EDCH-170 Hydraulic Decommissioning Cutters, Maximum Blade Aperture 6.69"

Enerpac ECCE32E Electric Chain Cutter, 52.9-Ton Capacity, 230V, 1.25" Material Diameter

Enerpac EBH-35 Hydraulic Bar Cutter, 68-Ton Capacity, 1.38" Material Diameter

Enerpac EWCE55E Electric Wire & Cable Cutter, 38.2-Ton Capacity, 230V, 2.17" Material Diameter

Enerpac EBH-52 Hydraulic Bar Cutter, 121-Ton Capacity, 2.04" Material Diameter

Enerpac EWCH90 Hydraulic Wire & Cable Cutter, 61.8-Ton Capacity, 3.54" Material Diameter

Enerpac EWCH140 Hydraulic Wire & Cable Cutter, 61.8-Ton Capacity, 5.51" Material Diameter

Enerpac SP-5000E Hydraulic Punch Set and Die Set with Electric Pump 50 Ton

Enerpac EBE-22E Electric Cutter Bar, 230V, 0.87" Material Diameter

Enerpac ED12TWL, 12" Extended Drive for PTW & ETW Torque Wrenches in the 6000X Series

Enerpac EFBE-5017E Electric Flat Bar Cutter, 230V, 0.67" Material Diameter

STB221H Pipe Bender Set with Cylinder and Hand Pump

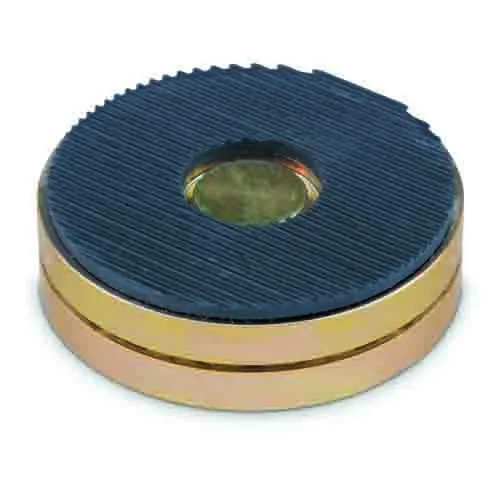

Enerpac 1-Ton Heavy Duty Caterroller Turntable Swivel, ES1

Enerpac 10-Ton Heavy Duty Caterroller Leveling Plate, ELP-10

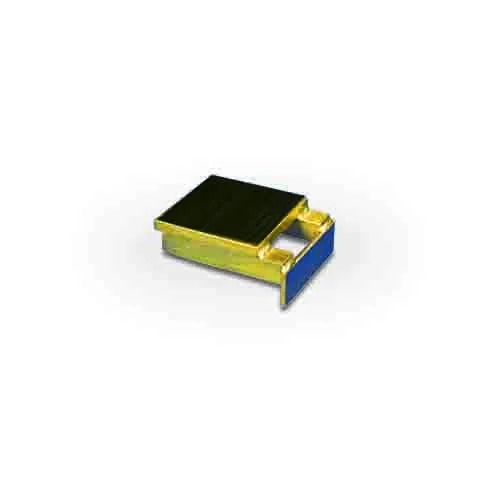

Enerpac 15-Ton Heavy Duty Caterroller Leveling Plate, ELP-15

Enerpac 15-Ton Heavy Duty Caterroller Turntable Swivel, ES15

Enerpac 60-Ton Heavy Duty Caterroller Leveling Plate, ELP-60

Enerpac 60-Ton Heavy Duty Caterroller Turntable Swivel, ES60

Enerpac 80-Ton Heavy Duty Caterroller Leveling Plate, ELP-80

Enerpac EBE-22B Electric Cutter Bar, 120V, 0.87" Material Diameter

Enerpac EBE-26B Electric Cutter Bar, 120V, 1.02" Material Diameter
