Log Splitters

Looking for help or a discount?

Call (800) 823-4937

Hydraulic log splitters and the core components that drive them: two-stage pumps that shift from high-volume travel to high-force splitting, control valves with auto-return detents, and the cylinders that move the wedge. Splitting force is set by the cylinder bore, the pump's high-pressure GPM, and the system relief setting, so the right build depends on the wood you process and the cycle time you need. Replacing an older or obsolete unit and unsure which components match? send your specs for a cross-reference.

Shop by Log Splitters Category:

Log Splitter Parts and Accessories

Log Splitter Valves

Two Stage Pumps

Serving hydraulics since 1963
15,000+ parts ready to order from Black Eagle, MT
Call (800) 823-4937

How to Choose a Log Splitter or Splitter Component

Size and tonnage: Splitting force comes from cylinder bore and system pressure. Match the rated capacity to your wood — smaller bore cylinders suit seasoned softwood, larger bores and higher tonnage handle green hardwood and knotty rounds.
Pump flow and stages: Two-stage pumps are rated by total GPM and the pressure at which they shift to the low-volume, high-pressure stage. Confirm the GPM matches your engine horsepower and target cycle time.
Valve rating and flow: Control valves should be rated above your system relief pressure and sized to the pump GPM. Auto-return (detent) valves kick the cylinder back automatically at the end of the stroke.
Material and construction: Look at cylinder rod diameter, weld quality, and mount style (clevis, cross-tube, or trunnion) for the load you split.
Application: Residential firewood, rental fleet, or commercial production runs each set different duty-cycle and cycle-time targets.

Which Log Splitter Component Is Right for the Job?

A complete splitter is a balanced system, and most rebuilds start with one of three parts. The Two Stage Pumps set how fast the ram travels and how much pressure is available once it hits the log — size the GPM to your engine and the shift pressure to your relief setting. The Log Splitter Valves direct that flow and, with auto-return detents, retract the cylinder at the end of the stroke. The cylinder itself sets tonnage: a larger bore at the same pressure produces more splitting force but a slower cycle. Confirm fit by matching pump GPM, valve flow rating, and cylinder bore to one relief pressure so no single component becomes the bottleneck.

Complete the System

Beyond the pump, valve, and cylinder, a splitter needs the plumbing and power transfer to run. Browse Hydraulic Cylinders when you are upsizing bore or replacing a bent rod, and Hydraulic Pumps for gear and other pump types beyond the two-stage units. Pair the circuit with Hydraulic Hoses rated above your relief pressure and the Fittings to terminate them in NPT, JIC, or ORFS. Use Pneumatic Quick Couplers where you swap attachments, and Hydraulic Motors if your build includes a conveyor or log lift.

Cross-Referencing an Obsolete Log Splitter or Part

If your splitter pump, valve, or cylinder is discontinued, you usually do not need an exact part-number match — you need a component that meets the same GPM, pressure rating, mount pattern, and port size. Northern Hydraulics has cross-referenced replacements for obsolete and private-label splitter components since 1963, and we can typically match by spec when the original number is no longer made. Send the GPM, relief pressure, bore, and port type off the unit you are replacing and request a cross-reference.

Log Splitters – Frequently Asked Questions

How do I size a log splitter for the wood I cut?

Match the rated tonnage to your wood. Seasoned softwood splits with lower tonnage, while green hardwood and knotty rounds need a larger cylinder bore or higher system pressure. Measure the largest diameter rounds you process and pick a build whose rated capacity covers that with margin.

What pressure and flow rating should a log splitter control valve have?

The valve should be rated above your system relief pressure — many splitter valves are rated in the 2,500 to 3,500 PSI range — and sized to the pump's GPM, often around 20 to 30 GPM. Confirm both ratings against your specific pump and relief setting before ordering.

What is a two-stage pump and why do log splitters use one?

A two-stage pump delivers high flow at low pressure for fast ram travel, then automatically shifts to low flow at high pressure once the wedge meets resistance. That gives a quick approach and return with the force needed to split, all from a smaller engine. Browse Two Stage Pumps to match GPM and shift pressure.

Two-stage pump vs. control valve — which sets my splitting speed and force?

Both work together. The pump GPM and its high-pressure stage set how fast the ram moves and how much force is available, while the Log Splitter Valves direct that flow and handle auto-return at the end of the stroke. Tonnage itself comes from cylinder bore and relief pressure, so size all three to one relief setting.

What hose and fittings do I need for a log splitter circuit?

Use hose rated above your system relief pressure and fittings that match your ports in NPT, JIC, or ORFS. See Hydraulic Hoses for pressure-rated assemblies and Fittings for the matching ends.

Can I replace just the cylinder to increase splitting force?

Often yes — a larger bore cylinder at the same pressure produces more force, though the cycle slows unless you also raise pump GPM. Confirm the new cylinder's mount style and port size match your frame. See Hydraulic Cylinders for bore and stroke options.

Do I need a hydraulic motor for a log splitter?

Not for splitting itself, which uses a cylinder. You only need a Hydraulic Motors unit if your build adds a powered log lift, conveyor, or other rotating accessory.

My log splitter pump or valve is discontinued — can you cross-reference it?

Usually, yes. We match obsolete and private-label splitter components by spec rather than by part number, using GPM, relief pressure, bore, mount pattern, and port type. Send those details and request a quote for a cross-reference.

Log Splitters

Shop by Log Splitters Category:

Log Splitter Parts and Accessories

Log Splitter Valves

Two Stage Pumps

Products

11 GPM Two Stage Log Splitter Replacement Pump, 1″ Pipe Inlet Port

16 GPM Two Stage Log Splitter Replacement Pump

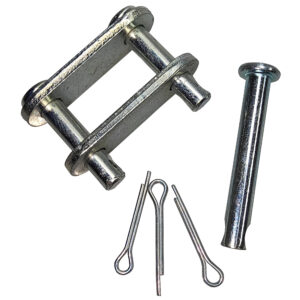

1V1701 Pin Kit, Cross Manufacturing

1V1703 Cross Valve Handle

1V1704 Cross Handle, Bracket, Pin Kit Replacement Parts Package

22 GPM Two Stage Replacement Pump

28 GPM Two Stage Replacement Pump

4Z4306 Bracket, Cross Manufacturing

Energy Detent Cover Assembly, 36561B

Energy Manufacturing Log Splitter Valve 0C000908

HALDEX BARNES 11 GPM TWO STAGE PUMP, 1012

HALDEX BARNES 16 GPM TWO STAGE PUMP, 1056

HALDEX BARNES 28 GPM TWO STAGE PUMP, 1058

Hydraulic Spider, Solid Center

LS-3000-1 Prince Log Splitter Valve

Prince Handle Kit 660130001 for LS-3000/RD-2500

Hydraulic Spider, Open Center

L090 1/2″ Lovejoy Jaw Coupling Hub, 68514426087

HALDEX BARNES 22 GPM TWO STAGE PUMP, 1057

Hydraulic Spider, Open Center (For Use With L099 and L100 Series Hubs)

Magister 1 spool x 21 GPM Hydraulic Log Splitter Control Valve

HALDEX BARNES 13 GPM TWO STAGE PUMP, 1053

Prince Pin Kit 660130006 for LS-3000/RD-2500

08 GPM Two Stage Log Splitter Replacement Pump

13 GPM Two Stage Log Splitter Replacement Pump

Lever Bracket 26264B for Energy Control Valves

L095 3/4&quot Lovejoy Jaw Coupling Hub, 68514411087

05 GPM Two Stage Replacement Pump

HALDEX BARNES 07 GPM TWO-STAGE PUMP

L100 1″ Lovejoy Jaw Coupling Hub, 68514411516

Logsplitter 8 GPM Pump With Coupler And Lovejoys

L090 1" Lovejoy Jaw Coupling Hub, 68514431296

Logsplitter 11 GPM Pump With Coupler and Lovejoys

Logsplitter 16 GPM Pump With Coupler and Lovejoys

L095 1" Lovejoy Jaw Coupling Hub, 68514411091

L099 5/8″ Lovejoy Jaw Coupling Hub, 68514411336

L090 5/8″ Lovejoy Jaw Coupling Hub, 68514410771

L095 1/2" Lovejoy Jaw Coupling Hub, 68514426088

Logsplitter 8 GPM Pump With Single Spool Valve

L095 5/8" Lovejoy Jaw Coupling Hub, 68514411085

11 GPM Two Stage Replacement Pump

L090 3/4" Lovejoy Jaw Coupling Hub, 68514410773

L100 1-1/8″ Lovejoy Jaw Coupling Hub, 68514411518

L095 7/8&quot Lovejoy Jaw Coupling Hub, 68514411089

Hydraulic Pump Set – Lovejoys & Bracket | Northern Hydraulics

SCD2E Cross Single Spool Log Splitter Valve

L099 3/4" Lovejoy Jaw Coupling Hub, 68514411338

Magister 1 spool x 21 GPM Hydraulic Log Splitter High Speed Control Valve
