1/2? male JIC barrel connector, 1/2? male ORB stem connector, 5000 PSI
| Weight | 0.63 lbs |
|---|---|
| Dimensions | 4 × 4 × 4 in |
| Live Swivels | JIC, ORB |
| Manufacturer | Hydraulics Inc |
9S8J8-O8
90 Degree Swivel fluid power component configured with a -8 (1/2?) J-Male JIC barrel connector and -8 (1/2?) O-Male SAE O-Ring Boss stem connector.
Specifications:
Weight: 0.63 lbs
Part Number: 9S8J8-O8
Barrel Connector: #8 (1/2″) Male JIC
Stem Connector: #8 (1/2″) Male ORB
T1: 3/4-16
T2: 3/4-16
A: 2.58
B: 1.74
C: 2.1
D: 1.45
F: 1.19
H Hex: 1.13
J Hex: 1
K Diameter: 1.3
Vacuum: 29.5 in./Hg
Temperature Range: -30°F to 250°F
Max Working Pressure: 5,000 PSI

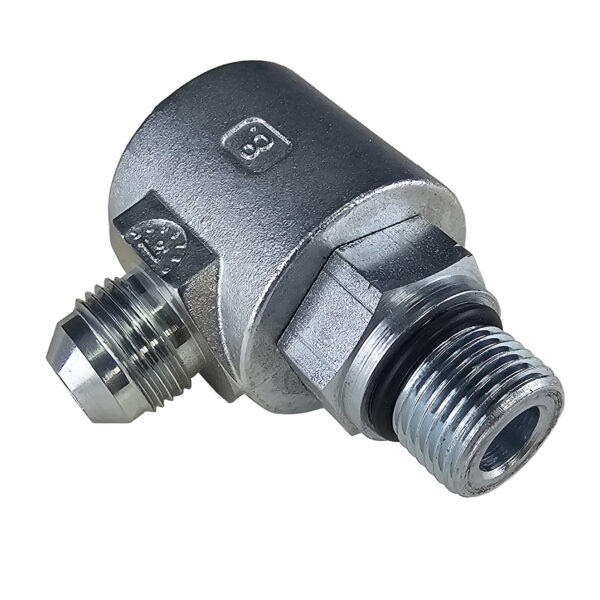

1/2″ 90 Degree Live Swivel | 1/2″ JIC Male X 1/2″ ORB Male, 9S8J8-O8
$68.67
Ready to order
No sales tax
Expected delivery Oct 14 - Oct 20
Get an exact shipping rate for your ZIP in the cart
Free shipping on $100+ of Live Swivels (continental US)
Secure checkoutEncrypted card payments · pay over time with Affirm, Klarna or Afterpay
There are no reviews yet.
