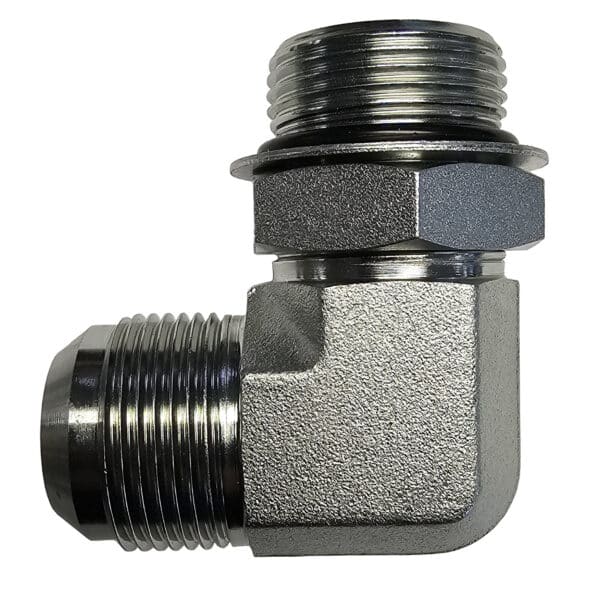

MJIC X MORB 90 ELBOW
| Weight | 0.88 lbs |
|---|---|
| Dimensions | 2 × 2 × 2 in |
| Manufacturer | Tompkins |
| Adapters Type 1 | Male JIC |
| Adapters Type 2 | Male O-Ring |
| Adapters Configuration | JIC to O-Ring Elbow 90° |
| Adapters Material | Carbon Steel |
| Adapters Size 1 | 16 |
| Adapters Size 2 | 12 |
MFG Part Number: 6801-16-12
Type: 90 degree elbow
Connection: JIC to O-Ring Elbow 90°
Side 1: 1 5/16-12 MJIC
Side 2: 1 1/16-12 MORB
Material: Zinc Plated Steel
Max Pressure: 7500 PSI
Standard: MS 51527, SAE 070220
Brennan 6801-16-12, World Wide F5515X16X12, Gates 12MB-16MJ90, Aeroquip 2062-16-12S, Tompkins 6801-16-12
6801-16-12 , 16MJ-12MOR 90 1″ X 3/4″
$12.38
In stock
No sales tax
Expected delivery Aug 13 - Aug 17
Ordered a few of these for a power unit build, all fit correctly and showed up faster than expected. Good value.
Had a tight routing problem on our hay baler hydraulic line and this 90 degree adapter solved it clean. Threads were smooth, no issues sealing it up, thing's held up through a full cutting season already.
Fitting works but the finish looked a little rough on one side, not sure if that's normal. No leaks so far so I can't complain too much, just expected a cleaner look for the price.
Fit right up on the first try, no leaks after torquing down. Only gripe is the delivery took a couple extra days but that's minor.
Solid elbow, threads were clean and it sealed up no problem. Would order again.
