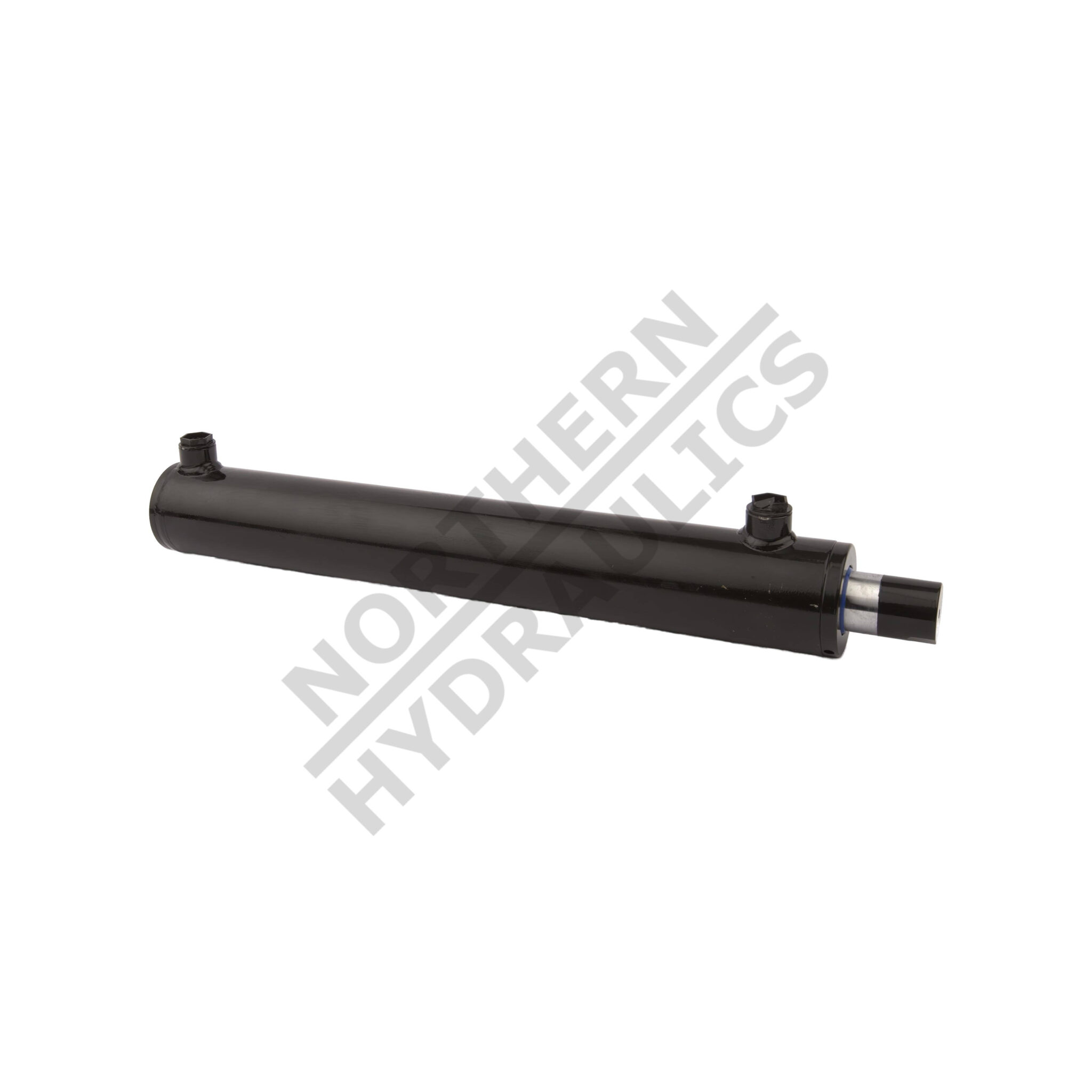

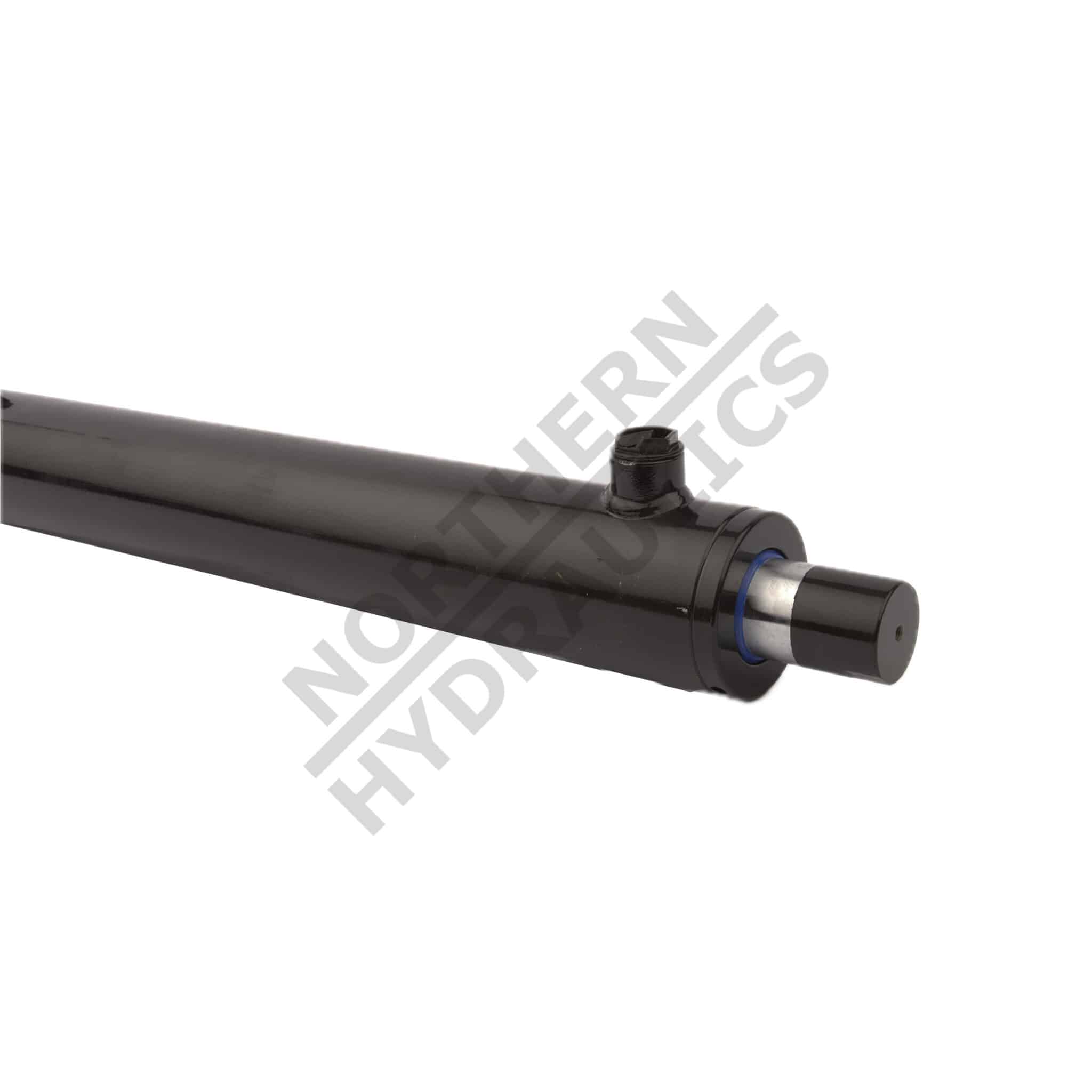

The WUCN2.5×16 Double Acting Hydraulic Cylinder is the ultimate solution for powerful and efficient hydraulic applications. Designed for robust performance, this cylinder delivers exceptional durability and reliability, making it an ideal choice for a wide range of industrial uses.

• Outer Diameter: 2.875 inches
• Rod Diameter: 1.5 inches
• Stroke Length: 16 inches
• Extended Length: 39 inches
• Retracted Length: 23 inches
• Pressure Rating: 3500 PSI
• Column Load: 14,700 LB
• Oil Volume: 1.36 QTs
• Rod Type: Chrome Plated
• Rod End: Universal
• Action: Double Acting
• Style: Welded
• Ports: SAE 8

This heavy-duty hydraulic cylinder is built to withstand the toughest conditions, making it an excellent fit for various machinery and equipment. It features:

• Superior durability with a welded construction ensuring long-lasting service life.
• Universal design compatible with many applications, allowing for easy integration into existing systems.
• High performance under pressure, providing the strength needed for demanding tasks.
• Easy installation and maintenance, making it user-friendly for operators and technicians.

NOTE! Chrome-plated rod is NOT induction hardened. Possible bent rod is a result of misuse (wrong measurements or type of application), such cases are not covered under warranty!

Same-Day Shipping: All orders made until 3 pm will be shipped the same day (except weekends and holidays).

Free Ground Shipping within Continental US.

Tariff-FREE cylinders.

Made in Europe.

If you need assistance choosing the proper hydraulic cylinder replacement, do not hesitate to contact us at (800) 823-4937.
