Home » Hydraulics Shop » 2.38″ Bore x 4″ Stroke Hydraulic Cylinder | Magister

Free Shipping

2.38" Bore x 4" Stroke Hydraulic Cylinder | Magister - Image 2

2.38" Bore x 4" Stroke Hydraulic Cylinder | Magister - Image 3

2.38" Bore x 4" Stroke Hydraulic Cylinder | Magister - Image 4

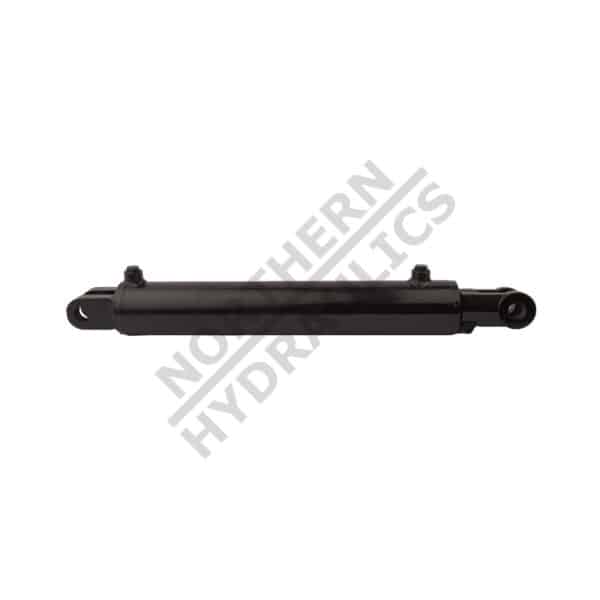

2.38″ bore x 4″ stroke hydraulic cylinder, rated at 3500 PSI. Heavy-duty, 16 lbs, with chrome-plated rod & clevis end. Perfect for robust applications.

Specifications

Weight	16.0 lbs
Dimensions	16 × 5 × 5 in
Cylinder Bore	2"
Cylinder Stroke Ranges	4
Cylinder Extended Length	18.25
Cylinder Style	Welded
Cylinder Retracted Length	14.25
Cylinder Port Size	ORB – 8
Manufacturer	Magister Hydraulics, MagisterHyd
Cylinder Outer Diameter	2.38 in
Cylinder Rod Diameter	1.25 in
Cylinder Overall Length	16.25 in
Cylinder PSI	3500 PSI
Cylinder Column Load	9,400 lbs
Cylinder Oil Volume	0.22 qts
Cylinder Rod Type	Chrome Plated
Cylinder Rod End	Clevis
Cylinder Action	Double Acting

Overview

Specifications:

Bore Diameter: 2.38 inches
Stroke Length: 4 inches
Extended Length: 18.25 inches
Retracted Length: 14.25 inches
Rod Diameter: 1.25 inches
Operating Pressure: 3500 PSI
Overall Length: 16.25 inches
Column Load: 9,400 lbs
Oil Volume: 0.22 quarts
Rod Type: Chrome Plated
Rod End: Clevis
Action: Double Acting
Style: Welded
Ports: SAE 8

Durability: This hydraulic cylinder is designed to endure high pressures and heavy loads making it perfect for various industrial applications.
Compatibility: Ideal for use with equipment requiring robust hydraulic action such as construction machinery, agricultural equipment, and more.
Manufacturer: Produced by Northern Hydraulics, known for quality and performance in hydraulic components.

Get the reliability and power you need with our 2.38″ Bore x 4″ Stroke Hydraulic Cylinder. Designed to operate up to 3500 PSI, this heavy-duty cylinder is perfect for tackling high-load tasks.

Note: Our hydraulic cylinders come with a promise of quality and durability, backed by Northern Hydraulics expertise. Enjoy fast shipping on all orders!

Take Action Now: Don’t miss out on enhanced performance—order your hydraulic cylinder today!

Trusted Manufacturing Partnership

This hydraulic cylinder is proudly manufactured by our longtime partner, Magister Hydraulics, known for their exceptional craftsmanship and reliability. At Northern Hydraulics, we're honored to offer their proven designs under our own brand, ensuring you get the best of both worlds — OEM-grade performance backed by our dedicated support and service.

SKU: WCLN2x4

2.38″ Bore x 4″ Stroke Hydraulic Cylinder | Magister

Name: 2.38" Bore x 4" Stroke Hydraulic Cylinder | Magister
Brand: Magister Hydraulics
SKU: WCLN2x4
Price: 189 USD
Availability: InStock
