3/8? male pipe barrel connector, 3/8? male ORB stem connector, 5000 PSI
| Weight | 0.51 lbs |
|---|---|
| Dimensions | 4 × 4 × 4 in |
| Live Swivels | NPT |
| Manufacturer | Hydraulics Inc |
9S6P6-O6

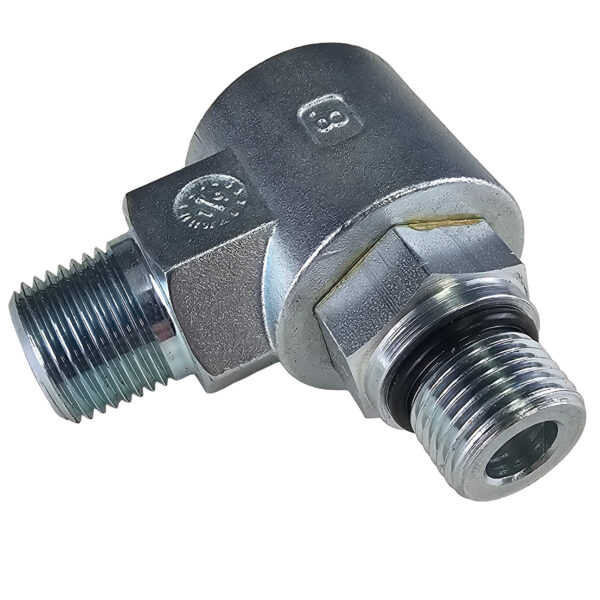

90 Degree Swivel fluid power component configured with a -6 (3/8?) P-Male Pipe barrel connector and -6 (3/8?) O-Male SAE O-Ring Boss stem connector.
Â
Specifications:
Weight: 0.51 lbs
Part Number: 9S6P6-O6
Barrel Connector: #6 (3/8″) Male Pipe
Stem Connector: #6 (3/8″) Male ORB

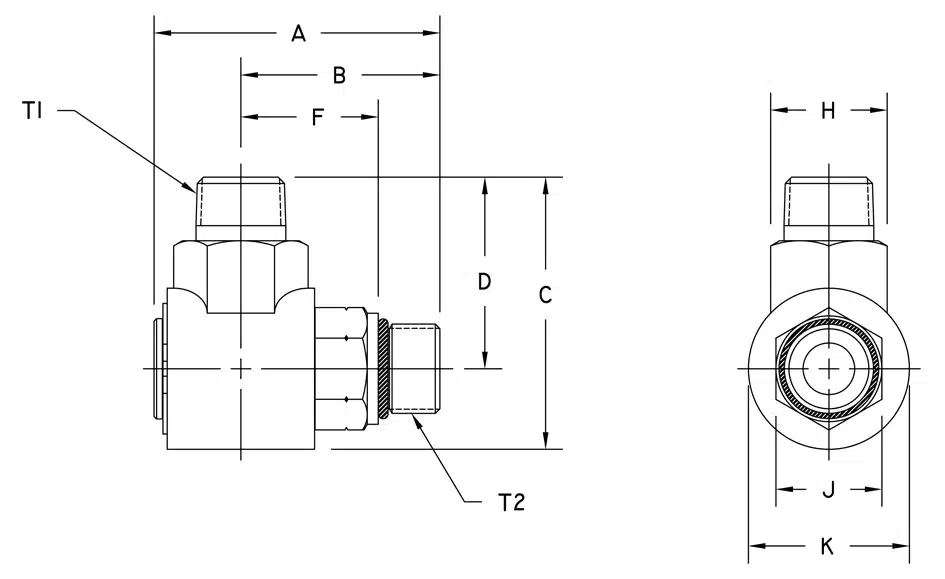

T1: 3/8-18
T2: 9/16-18
A: 2.5
B: 1.65
C: 1.96
D: 1.5
F: 1.18
H Hex: 1
J Hex: 0.87
K Diameter: 0.92
Vacuum: 29.5 in./Hg
Temperature Range: -30°F to 250°F
Max Working Pressure: 5,000 PSI
3/8″ 90 Degree Live Swivel | 3/8″ NPTF Male X 3/8″ ORB Male, 9S6P6-O6
$59.56
In stock
No sales tax
Expected delivery Sep 12 - Sep 16
