• RCH202small

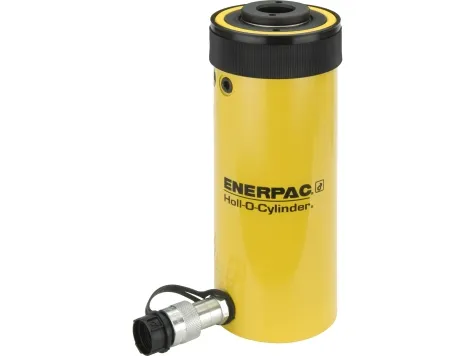

Enerpac single acting hollow plunger 20 ton cylinder.

Specifications
Weight 16.9 lbs
Dimensions 12 × 11 × 11 in
Cylinder Stroke Ranges

2

Cylinder Extended Length

8.38

Enerpac Cylinder Series

RCH- Hollow Plunger

Cylinder Tonnage

20

Cylinder Enerpac Return Type

Single-Acting (Spring Return)

Cylinder Retracted Length

6.38

Manufacturers

Enerpac

Overview

RCH-202 Specifications:

  • 20 ton capacity
  • 2 inch stroke
  • 17 lbs
  • 10,000 psi maximum operating pressure
  • Single acting, Spring return
  • Hollow plunger

Enerpac RCH Cylinders Brochure

RCH-202 Measurements:

  • Collapsed Height (A)- 6.38 in. / 162 mm
  • Extended Height (B)- 8.38 in. / 211 mm
  • Outside Diameter (D)- 3.88 in. / 98 mm
  • Cylinder Bore Diameter (E)- 2.88 in. / 73.1 mm
  • Plunger Diameter (F)- 2.13 in. / 54.1 mm
  • Base to Advance Port (H)- .75 in. / 19 mm
  • Saddle Diameter (J)- 2.13 in. / 54 mm
  • Saddle Protrusion from Plunger (K)- 0.27 in. / 9.7 mm
  • Plunger Internal Thread (O)- 1-9/16″ – 16 un
  • Plunger Thread Length (P)- 0.75 in. / 19 mm
  • Collar Thread (W)- 3-7/8″ – 12 un
  • Collar Thread Length (X)- 1.5 in. / 38 mm
  • Center Hole Diameter (Y)- 1.06 in. / 26.9 mm
  • Bolt Cirlce (U)- 3.25 in. / 82.55 mm
  • Thread (V)- 3/8″ – 16 UNC
  • Thread Depth (Z)- .37 in. / 9.39 mm
Enerpac RCH-1003 Hollow Plunger Cylinder Scheme Dimensions

Enerpac RCH-202 Hollow Plunger Cylinder
