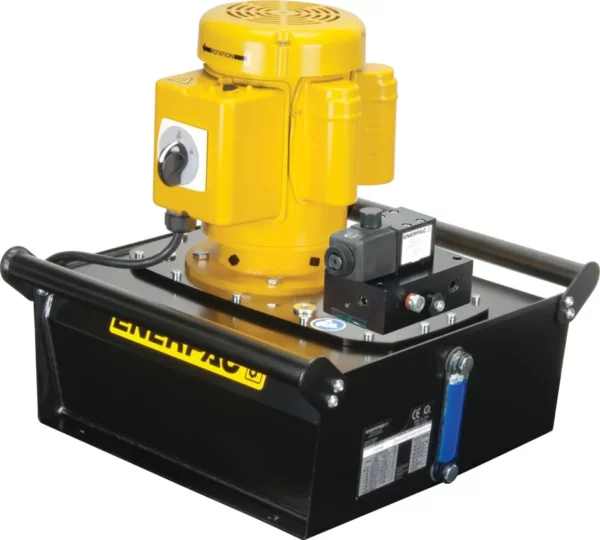

Enerpac ZE-3140DB Electric Hydraulic Pump 3/2 Solenoid Dump Valve with Electric Box and LCD 10 gal Usable Oil 40 in3/min oil flow at 10,000 psi 115 V

Specifications
Weight 215 lbs
Manufacturers

Enerpac

Overview

ZE-3140DB Specifications:

Maximum Operating Pressure (psi): 10,000
Cylinder Compatability: Single-acting
Reservoir Capacity (in3): 2310
Usable Oil Capacity (gal): 10
Maximum Flow at Rated Pressure: 40 in3/min

Output Flow Rate (in3/min) 100 psi: 450

Output Flow Rate (in3/min) 700 psi: 385

Output Flow Rate (in3/min) 5000 psi: 42

Output Flow Rate (in3/min) 10000 psi: 40

Motor Size (hp): 1
Motor Size (rpm): 1750
Motor Hertz: 50/60 Hz
Motor Phases: 1 Ph
Motor Voltage: 115 V
Valve Function: Advance / Retract
Valve Operation: Solenoid
Solenoid Valve Voltage: 24 VAC
Valve Type: 3 way, 2 position
Valve Model: VM32D
Power Source: Electric
Pump Operation: Dump
Pump Control: Pendant
Motor Electrical Specification: 115 V, 1 Ph, 50/60 Hz
Sound Level (dBa): 75
Relief Valve Adjustment Range (psi): 1000-10000
Weight (lbs): 190

Enerpac ZE-Series Pump Brochure

ZE-3140DB Measurements:

  • Dimension (A)- 10.6 in. / 270 mm
  • Dimension (B)- 15.7 in. / 399 mm
  • Dimension (C)- 19.9 in. / 505 mm
  • Dimension (D)- 22.7 in. / 577 mm
  • Dimension (D1)- 22.5 in. / 572 mm
  • Dimension (E)- 18.9 in. / 480 mm
  • Dimension (H)- 28.1 in. / 714 mm





Enerpac ZE-3140DB Electric Hydraulic Pump 3/2 Solenoid Dump Valve with Electric Box and LCD 10 gal Usable Oil 40 in3/min oil flow at 10,000 psi 115 V
