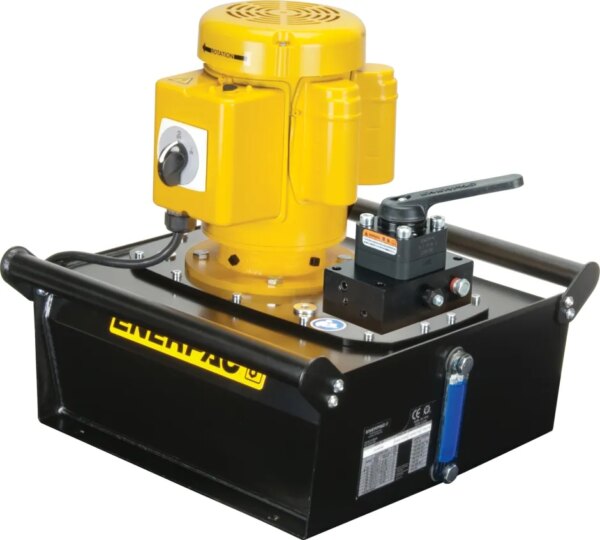

Enerpac ZE-4320MB Electric Hydraulic Pump 3/3 Manual Valve without Electric Box or LCD 5 gal Usable Oil 60 in3/min oil flow at 10,000 psi 115 V

Weight	180.5 lbs
Dimensions	30 × 30 × 28 in
10000 PSI Hydraulic Tools	Power Units
Manufacturer	Enerpac

ZE-4320MB Specifications:

Maximum Operating Pressure (psi): 10,000

Cylinder Compatability: Single-acting

Reservoir Capacity (in³): 1155

Usable Oil Capacity (gal): 5

Maximum Flow at Rated Pressure: 60 in3/min

Output Flow Rate (in³/min) 100 psi: 650

Output Flow Rate (in³/min) 700 psi: 600

Output Flow Rate (in³/min) 5000 psi: 62

Output Flow Rate (in³/min) 10000 psi: 60

Motor Size (hp): 1.5

Motor Size (rpm): 1750

Motor Hertz: 50/60 Hz

Motor Phases: 1 Ph

Motor Voltage: 115 V

Valve Function: Advance / Hold / Retract

Valve Operation: Manual

Valve Type: 3 way, 3 position, Tandem Center

Valve Model: VM33

Power Source: Electric

Pump Control: Manual

Motor Electrical Specification: 115 V, 1 Ph, 50/60 Hz

Sound Level (dBa): 75

Relief Valve Adjustment Range (psi): 1000-10000

Weight (lbs): 141

Enerpac ZE-Series Pump Brochure

ZE-4320MB Measurements:

Dimension (A)- 7.1 in. / 180 mm
Dimension (B)- 16.5 in. / 419 mm
Dimension (C)- 16.6 in. / 422 mm
Dimension (D)- 19.7 in. / 500 mm
Dimension (D1)- 19.2 in. / 488 mm
Dimension (E)- 15.6 in. / 396 mm
Dimension (H)- 24.6 in. / 625 mm

SKU: ZE4320MB

Enerpac ZE-4320MB Electric Hydraulic Pump 3/3 Manual Valve without Electric Box or LCD 5 gal Usable Oil 60 in3/min oil flow at 10,000 psi 115 V

Name: Enerpac ZE-4320MB Electric Hydraulic Pump 3/3 Manual Valve without Electric Box or LCD 5 gal Usable Oil 60 in3/min oil flow at 10,000 psi 115 V
Brand: Enerpac
SKU: ZE4320MB
Price: 10479.15 USD
Availability: InStock
