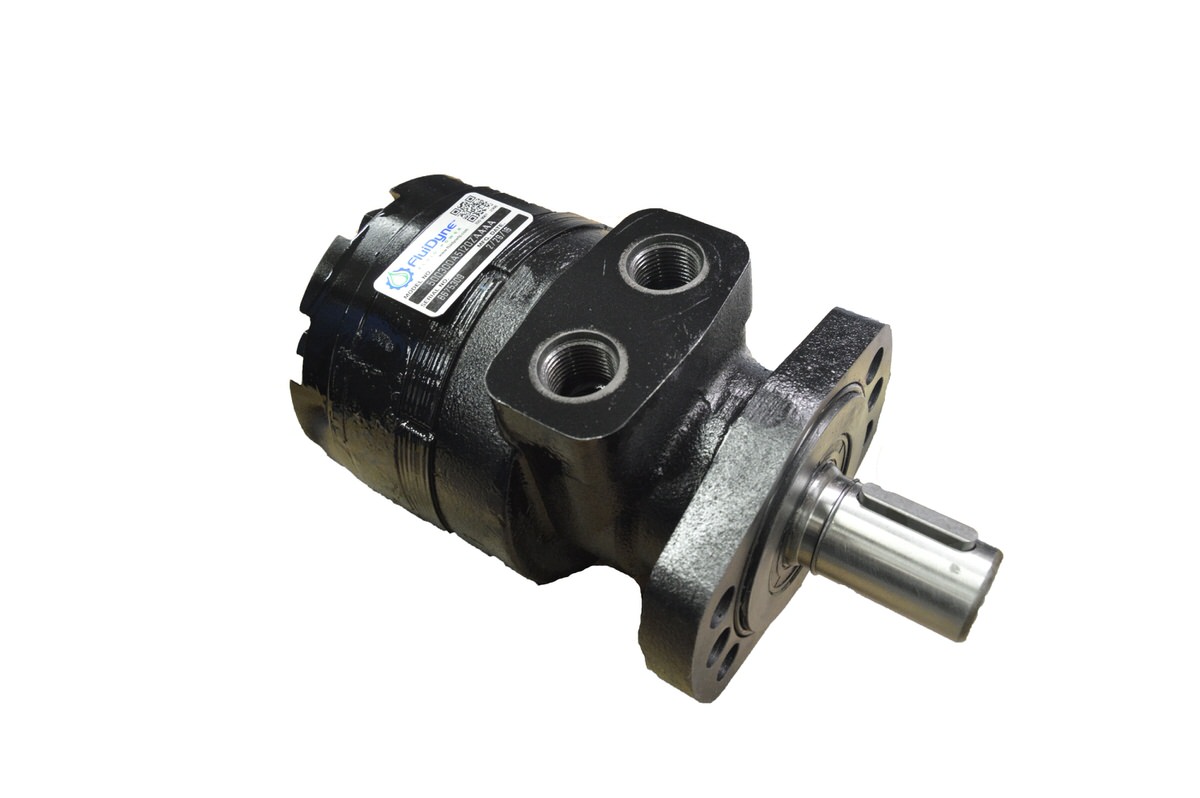

Fluidyne 500230W3120ZAAAA orbital motor with 230CC displacement, 4-bolt wheel mount, and 1.25″ keyed shaft. Rated for optimal performance with 7/8-14 ORB ports. Made in USA.
| Weight | 27.0 lbs |
|---|---|
| Dimensions | 15 × 10 × 10 in |
| Motor Displacement | 230 CC |
| Motor Rotation | CCW |
| Manufacturer | Fluidyne Fluid Power |
| Motor Mount Type | 4 Bolt Wheel Mount |
| Motor Shaft Type | 1.25" Straight Keyed Shaft |
| Motor Port Type | 7/8-14 Orb Ports |
| Motor Width | 0.77" (19.5MM) |
| Motor Paint Status | No Paint |
The Fluidyne 500230W3120ZAAAA is a powerful orbital motor designed specifically for high-performance hydraulic applications. With a displacement of 230 CC, this motor is engineered to deliver reliability and efficiency, making it ideal for various industrial settings.
Produced under strict Fluidyne manufacturing standards, the 500230W3120ZAAAA orbital motor meets relevant industry certifications, ensuring reliable performance and consistent quality throughout its operational life.
For any technical support or inquiries, please contact our expert team at (800) 823-4937.
Danfoss, Charlynn OM-230-CROSS Quality Made Aftermarket Replacement with a 12-month manufacturer’s warranty
SKU: 500230W3120ZAAAA
$518.50
