Home » Hydraulics Shop » Fluidyne WF101-5028 Orbital Motor 315CC 2-Bolt SAE A Mount

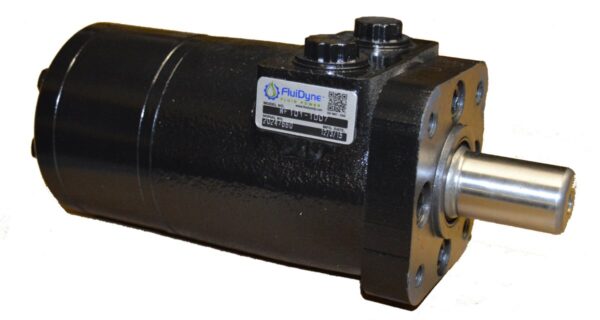

Fluidyne WF101-5028 orbital motor features 315 CC displacement, 2-bolt SAE A flange mount, 1″ keyed shaft, and 1/2″ NPTF ports. Made in USA for reliable performance.

Specifications

Weight	15.0 lbs
Dimensions	15 × 10 × 10 in
Motor Displacement	315 CC
Manufacturer	Fluidyne Fluid Power
Motor Mount Type	2 Bolt SAE A Flange Mount
Motor Shaft Type	1" Woodruff Keyed Shaft
Motor Port Type	1/2" NPTF Ports
Motor Case Drain	7/16-20 O'Ring Plugged
Motor Width	1.65" (42MM)
Motor Paint Status	Black Paint

Overview

The Fluidyne WF101-5028 is a robust orbital motor engineered for a variety of demanding hydraulic applications. This motor is designed to offer exceptional performance and reliability, making it ideal for industrial machinery, mobile equipment, and more.

Specifications

Model Number: WF101-5028
Displacement: 315 CC
Mount Type: 2 Bolt SAE A Flange Mount
Shaft Type: 1″ Woodruff Keyed Shaft
Ports: 1/2″ NPTF
Width: 1.65″ (42MM)
Case Drain: 7/16-20 O’Ring Plugged
Special Features: Use WF1011031 + Modified Shaft

Features and Benefits

High-efficiency design suitable for various applications
Durable construction with black paint finish for corrosion resistance
Versatile 2-bolt mounting configuration for easy installation
Reliable performance ensuring long service life
Made in USA under rigorous quality control standards

Applications

Industrial machinery
Construction equipment
Agricultural machinery
Material handling devices
Mobile hydraulic systems

Quality and Certification

This Fluidyne motor is manufactured according to stringent quality standards and is tested to exceed industry specifications, ensuring durability and reliability in performance.

For technical support and assistance, contact our product specialists at (800) 823-4937

Danfoss, Charlynn WF101-5028 Quality Made Aftermarket Replacement with a 12-month manufacturer’s warranty

SKU: WF101-5028

4.8

4 reviews

Fluidyne WF101-5028 Orbital Motor 315CC 2-Bolt SAE A Mount

Name: Fluidyne WF101-5028 Orbital Motor 315CC 2-Bolt SAE A Mount
Brand: Fluidyne Fluid Power
SKU: WF101-5028
Price: 278.8 USD
Availability: InStock

$278.80

In stock

No sales tax

Expected delivery Jun 15 - Jun 19

1+ $ 278.80/piece

4+ $ 264.86/piece -5%

8+ $ 250.92/piece -10%

Brand: Fluidyne Fluid Power·More Fluidyne Fluid Power Hydraulic Motors →

Looking for help or a discount?

Call (800) 823-4937

Reviews (4)

Rating & Reviews ( 4 4.8

Terry M.

Rated 5 out of 5

4 weeks ago

Dropped this into a log splitter build and it performed exactly like I needed it to. Spins smooth under load, no leaks after a full day of use. Made in the USA and the quality shows — everything machined clean and tight.
R.K.

Rated 5 out of 5

2 months ago

Exactly as described. Bolted right up, no issues so far.
frank d

Rated 4 out of 5

4 months ago

Motor itself is well built and runs strong. The shaft fit was just a hair snug on our coupler, took a few minutes with a file to clean it up — nothing major but worth knowing. Would buy again.
Miller Farms

Rated 5 out of 5

2 years ago

works great

4.8/5

Rated 4.75 out of 5

4 reviews

5 star

4 star

3 star

2 star

1 star

Specifications

Overview

Specifications

Features and Benefits

Applications

Quality and Certification

Fluidyne WF101-5028 Orbital Motor 315CC 2-Bolt SAE A Mount

Rating & Reviews ( 4 4.8
