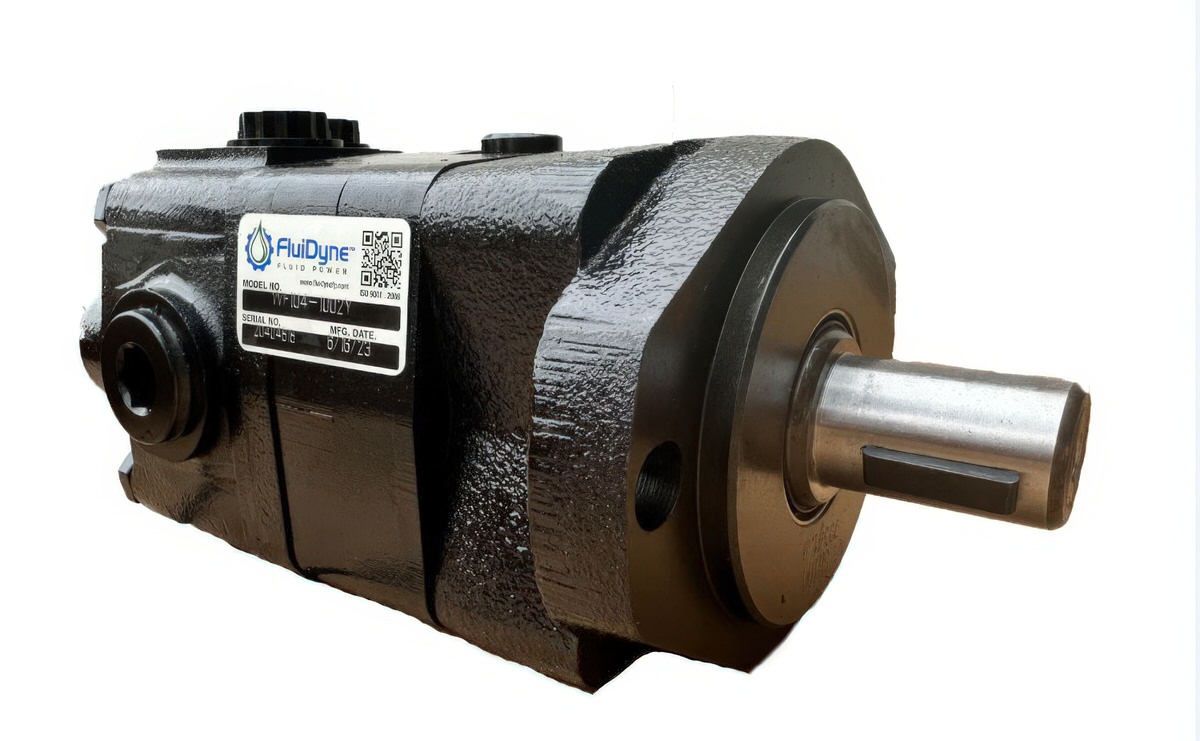

Fluidyne WF104-1386Y orbital motor with 125CC displacement, 4-bolt SAE A square flange, and 32MM keyed shaft. Rated for G 1/2 BSP O-Ring ports. Made in USA.
| Manufacturer | Fluidyne Fluid Power |
|---|---|
| Motor Mount Type | 4-Bolt SAE A Square Flange Mount |
| Motor Displacement | 125 CC |
| Motor Shaft Type | 32MM Straight Keyed Shaft |
| Motor Port Type | G 1/2 BSP O-RING, G 1/4 BSP O'RING |
| Motor Width | 25MM (0.98") |
| Motor Case Drain | G 1/4 Bsp O'Ring Case Drain (Plugged) |
| Motor Paint Status | Black Paint |
| Shipping weight | 23 lb |
| Package size | 15 × 10 × 10 in |
The Fluidyne WF104-1386Y hydraulic motor is engineered for demanding hydraulic applications where reliability and performance are essential. This orbital motor features a displacement of 125 CC, making it suitable for a variety of industrial uses such as material handling, automotive, and agricultural equipment.
Key Features and Benefits
- High-performance 125 CC displacement
- 4-bolt SAE A square flange for stability and secure mounting
- 32MM straight keyed shaft for reliable torque transmission
- G 1/2 BSP O-ring ports for leak-proof hydraulic connections
- Durable black paint finish for enhanced durability and corrosion resistance
- Manufactured in the USA ensuring high-quality standards
Specifications
- Model Number: WF104-1386Y
- Displacement: 125 CC
- Mounting Type: 4-Bolt SAE A Square Flange
- Shaft Type: 32MM Straight Keyed Shaft
- Ports: G 1/2 BSP O-Ring, G 1/4 BSP O’RING (Case Drain Pluggd)
- Width: 25MM (0.98″)
Applications
The Fluidyne WF104-1386Y is widely utilized across various industries, including:
- Construction machinery
- Agricultural equipment
- Material handling systems
- Industrial hydraulic systems
- Automotive applications
Quality and Certification
This product adheres to Fluidyne’s rigorous quality standards and is tested to meet or exceed industry specifications, ensuring reliable performance under pressure. The manufacturing process involves strict quality control measures to guarantee durability and longevity.
For technical support and assistance, contact our product specialists at (800) 823-4937
Danfoss, Charlynn WF104-1386Y Quality Made Aftermarket Replacement with a 12-month manufacturer’s warranty.
Fluidyne WF104-1386Y 4-Bolt Hydraulic Motor 125CC
$428.40
