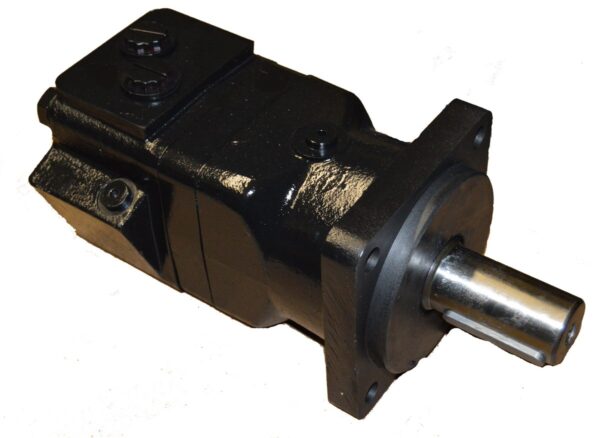

The Fluidyne WF109-1479 is a robust orbital motor specifically designed to meet the demands of hydraulic applications. Engineered for exceptional performance and reliability, this motor is built to handle high pressures while providing smooth and efficient operation in various industrial and mobile applications.

Specifications

• Model Number: WF109-1479
• Displacement: 500 CC
• Mount Type: 4-Bolt SAE B Flange Mount
• Shaft Type: 1 5/8″ Tapered, Keyed W/Nut Shaft
• Ports: O’Ring Ports
• Case Drain: 7/16-20 O’Ring Case Drain (Plugged) With Check Valve
• Width: 1.38″ (35MM)
• Paint Status: No Paint

Features and Benefits

• High efficiency and reliability in diverse applications
• Durable construction ensuring long service life
• Flexible installation options with a 4-bolt SAE B flange
• Superior performance even under high load conditions
• Made in USA, adhering to strict quality standards

Applications

• Material handling equipment
• Agricultural and construction machinery
• Industrial presses and lifting systems
• Mobile hydraulic applications

Quality and Certification

The Fluidyne WF109-1479 orbital motor is manufactured under rigorous quality control standards, ensuring it meets or exceeds the most demanding industrial requirements. Each unit undergoes extensive testing to guarantee reliable performance, making it the ideal choice for critical applications.
