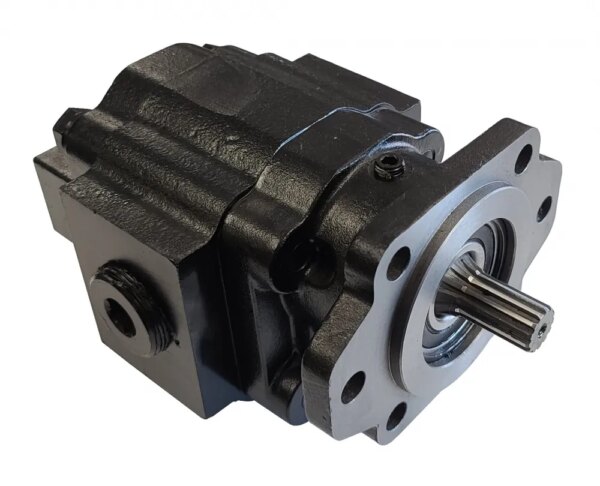

Home » Hydraulics Shop » H5B6B14SI20DILB Heavy Motions Gear Pump 27.8 GPM, NPT Ports
27.8 GPM, 2.5″ GEAR, 6.375 C.I., 2500PSI, 7/8-13 SPINE SHAFT, 2X4 B FLANGE MOUNT, 1.25″ NPT Rear Port, 1.5″ NPT Side Ports
| Weight | 59.0 lbs |
|---|---|
| Dimensions | 18 × 12 × 12 in |
| Hydraulic Pump Style | Gear Pump |
| Pump Manufacturers | Heavy Motions |
| Pump Displacement | 6.375 |
| Pump Outlet Port Style/Size | 13 Tooth 16/32 DP 0.75", NPT – 1-1/4" |
| Pump Mounting Flange | 2/4 Bolt / SAE B / 4.00" Pilot |
| Pump Inlet Port Style/Size | NPT – 1-1/4" |
| Pump Rotation | Dual |
| Manufacturer | Heavy Motions |
Heavy Motions Pumps
H5B6B14SI20DILB
Heavy Motions Pumps are designed for a wide range of applications including low boys, utility line trucks, refuse equipment and snow and ice control.
Commmercial- P51A646TEYR25-25
Permco- P5100A735OFXQ25-14
Muncie- PL27-2BPBB
SKU: H5B6B14SI20DILB
$634.14
You must be logged in to post a review.
Leave your number and a good time — one of our hydraulic specialists will call you back.



Ordered it for a customer's dump trailer that needed more capacity. Fit the existing setup with minimal modification and the customer hasn't been back with complaints, which is all I can ask for.
does the job
Dropped right in where the old pump came out. Spline shaft lined up no problem and the NPT ports made plumbing it straightforward. Thing's a tank so far.
Needed something with real flow for a hydraulic power unit I was building out and this delivered. Runs quiet, ports are a good size, and the B flange mount made it easy to bolt up. Definitly worth the money.
Quality feels solid and it's pushing good volume but shipping took a little longer than I expected. No complaints once it arrived though.
