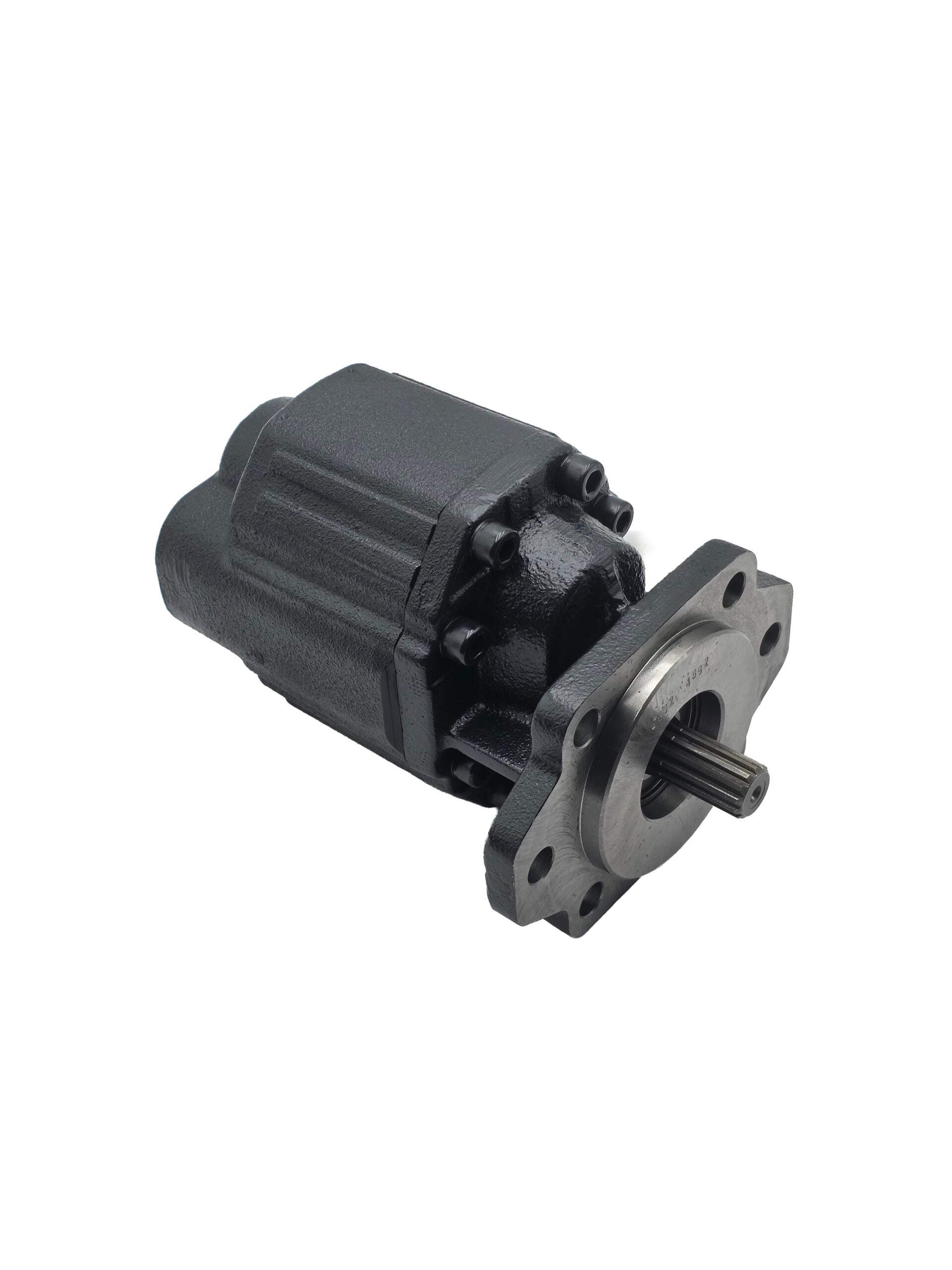

2/4 Bolt B Gear Pump with 7/8-13 & #20 ORB Rear Ports. 6.2 in³/rev, 27 GPM, 3050 PSI, 1600 RPM max, 7/8-13 spline shaft.
| Weight | 37.0 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
| Pump Mounting Flange | 2/4 bolt B |
| Manufacturer | Heavy Motions |
| Pumps Drive Shaft | 7/8-13 spline |
| Pumps Max Pressure | 3050 |
| Pumps Max Speed | 1600 |
| Pumps Displacement | 6.2 |
Heavy Motions gear pumps are fixed-displacement pumps for truck and mobile hydraulic circuits, with SAE bolt-pattern mounting, splined or keyed shafts and rear or side porting. Each listing states the figures the supplier publishes for that pump.
HB3B24OT105 is a Heavy Motions gear pump with 2/4 bolt B mounting and a 7/8-13 spline drive shaft. It displaces 6.2 cubic inches per revolution, delivers 27 GPM and is rated to 3050 PSI. Gear pumps are the workhorse of truck-mounted hydraulics: simple, compact and tolerant of the duty a PTO drive gives them. Match the mounting flange, shaft and port sizes to the pump being replaced.
Questions & Answers
What flow and pressure is this pump rated for?
27 GPM at up to 3050 psi, with a maximum speed of 1600 rpm.
What displacement is it?
6.2 cubic inches per revolution.
How does it mount, and what shaft does it use?
A 2/4 bolt B flange with a 7/8-13 splined shaft.
Where are the ports?
#20 ORB ports on the rear of the pump.
Compatibility & Applications
Replacement Information
HB3B24OT105 is a Heavy Motions gear pump. Check the part number and the mounting details on the unit you are replacing before you order.
Typical Applications
Gear pumps power wet-line kits, hoists, cranes, and winches on trucks and mobile equipment. They mount directly to a PTO or run from an engine-driven clutch pump bracket.
Related Heavy Motions Gear pumps
Browse all Gear Pumps or the full Heavy Motions range at Northern Hydraulics.
HB3B24OT105 2/4 Bolt B Gear Pump with 7/8-13 & #20 ORB Rear Ports – Heavy Motions
$932.04
Ready to order
No sales tax
Expected delivery Oct 13 - Oct 19
Get an exact shipping rate for your ZIP in the cart
Secure checkoutEncrypted card payments · pay over time with Affirm, Klarna or Afterpay
There are no reviews yet.
