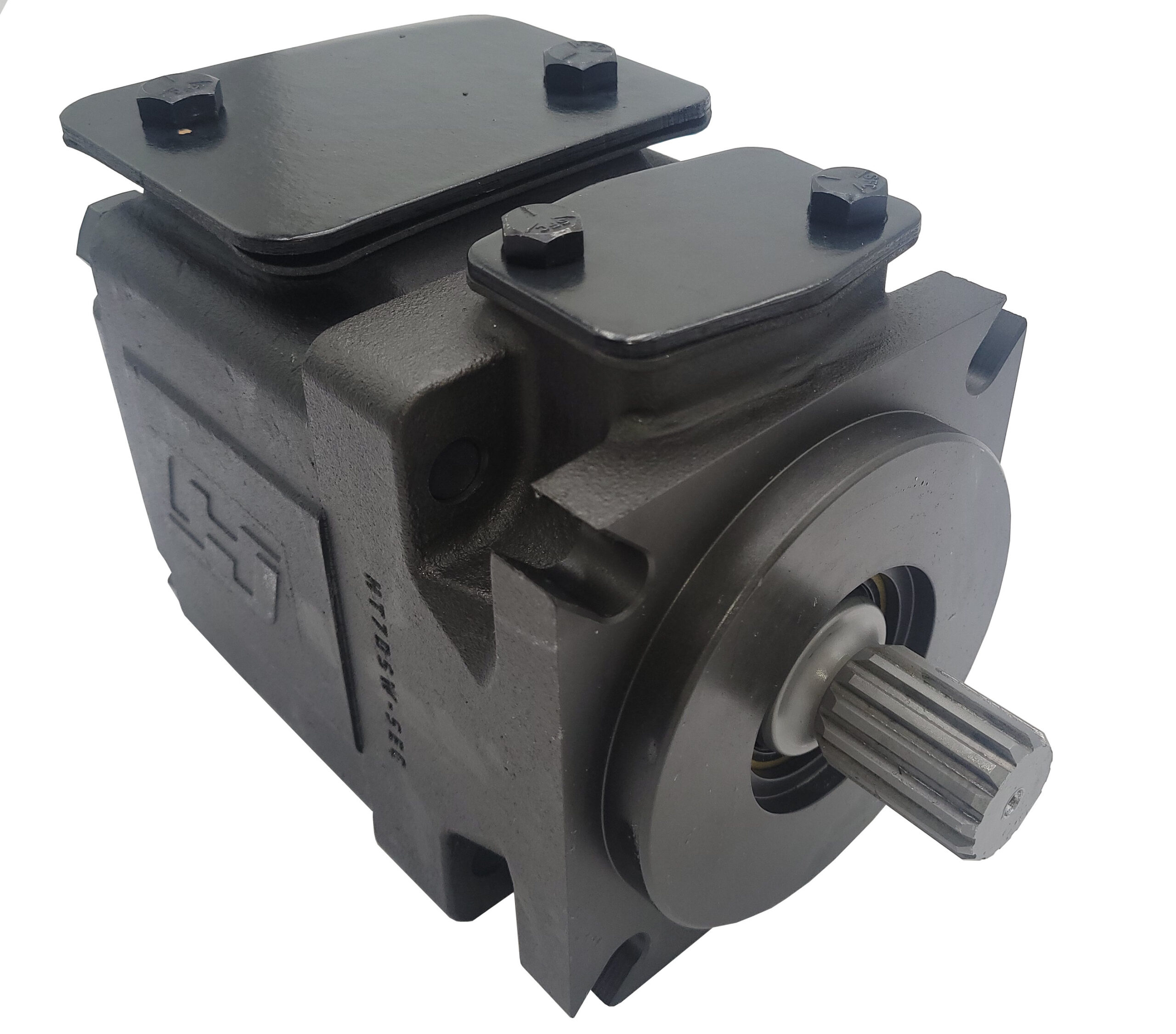

Single Vane Pump, P1 42 GPM, 1-1/4″ 14 Tooth Code 3, 01 Porting Combination. 4 bolt C, 1-1/4-14 spline shaft, 2-1/2″ inlet, CW rotation.
| Weight | 72.0 lbs |
|---|---|
| Dimensions | 20 × 20 × 15 in |
| Pump Mounting Flange | 4 bolt C |
| Manufacturer | Heavy Motions |
| Pumps Drive Shaft | 1-1/4-14 spline |
| Pumps Rotation | Clockwise |
| Pumps Ports In | 2-1/2" |
Heavy Motions vane pumps, cartridge kits, cam rings and seal kits follow the T6 and T7 cartridge patterns, so a pump can be serviced by swapping the cartridge instead of the body. Each listing names the pattern it fits.
HT7DSW-B42-3R01-A1-W1 is a Heavy Motions vane pump component for the T7DSW cartridge pattern. It delivers 42 GPM with a 1-1/4-14 spline shaft and 4 bolt C mounting. The T6 and T7 cartridge patterns are what these kits, cam rings and seal kits are listed against. Match the cartridge pattern and the rotation to the pump being serviced.
Questions & Answers
What does this pump flow?
P1 is rated 42 GPM. It is a single section pump, so that is the whole output.
Which cartridge pattern is it?
The T7DSW pattern. Cartridge kits and cam rings are chosen by that pattern.
How does it mount, and what shaft does it use?
A 4 bolt C mount with a 1-1/4 inch, 14 tooth code 3 splined shaft, turning clockwise.
Where are the ports?
The 01 porting combination: suction on top and P1 on top. A 2-1/2 inch suction port and a 1-1/4 inch P1 port.
What does it weigh?
The listed weight is 72 pounds.
Compatibility & Applications
Replacement Information
HT7DSW-B42-3R01-A1-W1 is a Heavy Motions vane pump component. Check the part number and the mounting details on the unit you are replacing before you order.
Typical Applications
Vane pumps supply mobile and industrial circuits that need quiet, steady flow. Cartridge kits and cam rings restore a worn pump to its rated flow without a new body.
