Technical Overview

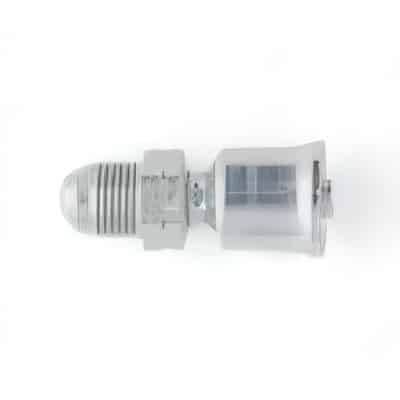

The Parker 26 Series Male SAE 45° fitting (Part Number: 10426-6-6) is designed for maximum performance and versatility in hydraulic applications. This durable steel fitting is a permanent crimp style that allows for quick assembly in conjunction with Parker’s range of crimpers. Its innovative design eliminates the need to remove the outer cover of hoses, thereby preventing premature hose failure commonly caused by improper skiving.

Specifications

• Part Number: 10426-6-6
• Type: Male SAE 45° Fitting
• Material: Steel with Zinc Dichromate Plating
• Compatibility: 201-261, 206, 213, 221FR, 225, 235, 244, 266, 285, 293, SS23CG Hoses
• Weight: 0.17 lbs
• Thread Size: 3/8 inch

Features and Benefits

• Quick and easy installation with Parker crimpers
• Reduced risk of hose failure through No-Skive assembly
• Durable construction with zinc dichromate plating for corrosion resistance
• Designed for high-performance hydraulic systems
• Manufactured to Parker’s high standards of quality
• Made in USA

Applications

• Hydraulic systems requiring reliable and secure fittings
• Automotive applications
• Construction equipment
• Industrial machinery
• Marine and airbrake systems

Quality and Certification

Each Parker 26 Series fitting is manufactured under strict quality controls, complying with industry standards for hydraulic applications. These fittings are subjected to rigorous testing procedures to ensure exceptional performance and reliability in demanding environments.
