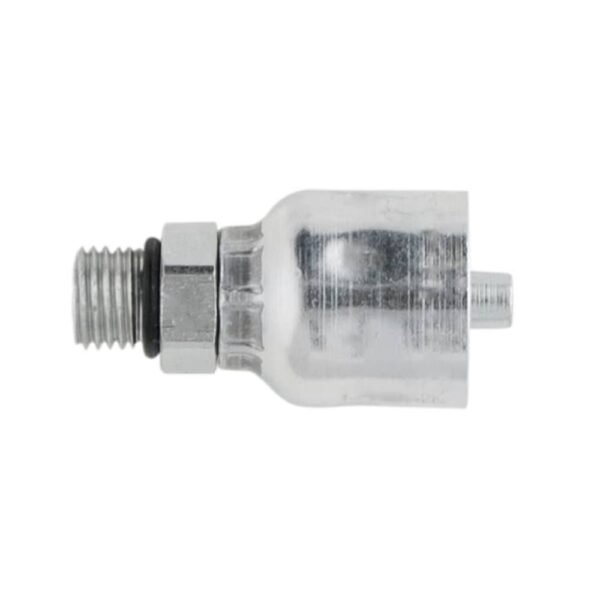

Parker 10543-10-8 5/8″ male SAE fitting with O-ring, designed for reliable connections. Chromium-6 free plating, made in the USA for superior performance.
| Weight | 0.27 lbs |
|---|---|
| Dimensions | 4 × 4 × 4 in |
| Manufacturer | Parker |
| Fitting Parker Group | Fluid Connector |
| Fitting Parker Division | Hose Products |
| Fitting Series | 43 |
| Fitting Material | Steel |
| Fitting Measurement System | Inch |
| Fitting Inner Diameter | 0.5 Inch |
| Fitting End Connection | 5/8 Inch |
| Fitting Special Features | ["with O-Ring"] |
| Fitting Connection End | External |
| Fitting Movement Type | Rigid |
| Fitting Configuration | Straight |
Technical Overview
The Parker 43 Series Fittings, specifically the 10543-10-8, is designed for high-performance applications requiring reliable hydraulic connections. This permanent (crimp) style fitting allows for quick assembly utilizing Parker’s Parkrimp crimpers, ensuring efficient and secure installation without the need for hose skiving.
The innovative design is particularly advantageous as it prevents premature hose failure that can occur with improper removal of the outer hose cover. With Chromium-6 free plating, the 10543-10-8 is not only durable but also compliant with modern safety standards. The fitting is fully compatible with a wide range of hoses, including Parker Hydraulic Braided, Light Spiral, Specialty, Suction, and Return Hoses.
Specifications
- Part Number: 10543-10-8
- Connection Type: Male SAE Straight Thread with O-Ring
- Size: 5/8 inch
- Weight: 0.27 lbs
Features and Benefits
- Quick and easy assembly with Parkrimp crimpers
- Prevents premature hose failure with no-skive technology
- Compatible with a variety of Parker hoses
- Chromium-6 free plating for enhanced safety and performance
- Manufactured in the USA under strict quality control
Applications
- Hydraulic systems in industrial applications
- Construction equipment
- Agricultural machinery
- Automotive hydraulic systems
- Fluid power applications
Quality and Certification
The Parker 43 Series fittings are manufactured in compliance with Parker’s rigorous quality standards and meet or exceed industry specifications. Each fitting undergoes stringent testing procedures to ensure durability, reliability, and long service life.
For technical support and assistance, please contact our product specialists at (800) 823-4937.
Parker 10543-10-8 SAE O-Ring Fitting 5/8″ Steel Rigid
$17.49
In stock
No sales tax
Expected delivery Sep 17 - Sep 21
Fitting itself is fine, does the job. Took longer to ship than I expected and I had to reschedule the repair around it, which was a pain. No complaints about the part though.
fit perfect
Dropped right in, no leaks, no fuss. Been running it on the loader for a couple months now and it's holding up fine under daily use.
works great
Ordered two of these to finish up a cylinder repair job. Fit the hose perfect and the O-ring seated clean the first time — didn't have to mess with it at all.
