Technical Overview

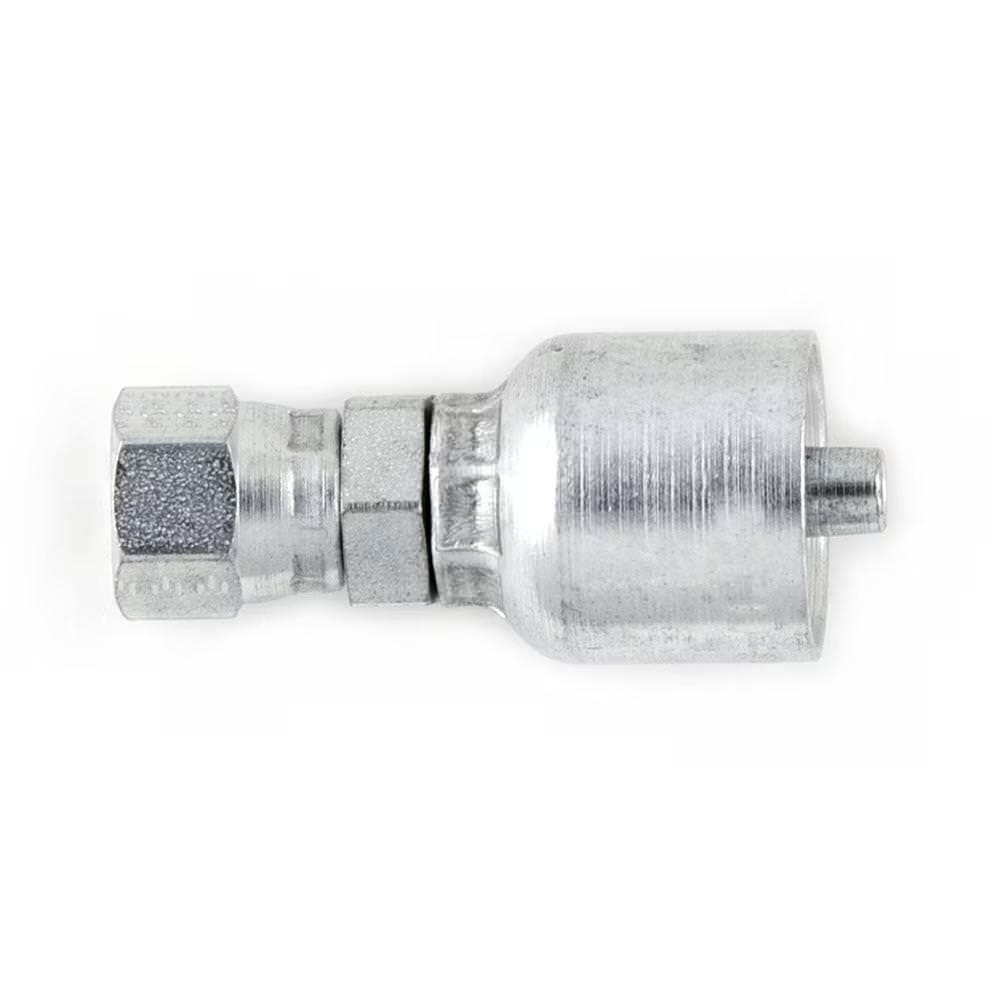

The Parker 10643-24-20 fitting is part of the renowned 43 Series, which offers a permanent (crimp) style design for quick and efficient assembly with Parker’s family of Parkrimp crimpers. This JIC (Joint Industry Council) 37° female swivel fitting accommodates 1 1/2 inch connections. Its no-skive assembly process allows for the hose’s outer cover to remain intact, eliminating premature hose failure that often occurs from improper skiving lengths.

The fitting is constructed from high-quality steel with Chromium-6 free plating, ensuring it meets modern environmental standards while providing durability and resistance to corrosion in demanding hydraulic applications.

Specifications

• Part Number: 10643-24-20
• Material: Steel
• Connection Type: Female JIC 37° Swivel
• Hose Compatibility: Parker Hydraulic Braided, Light Spiral, Specialty, Suction and Return Hoses
• Size: 1 1/2 inch
• Weight: 1.94 lbs

Features and Benefits

• Easy assembly with no-skive hose, improving overall efficiency
• High-quality steel construction for enhanced durability
• Chromium-6 free plating for environmental safety compliance
• Versatile compatibility with various Parker hoses
• Designed to reduce the risk of hose failure due to skiving errors

Applications

• Hydraulic systems in industrial equipment
• Construction machinery and vehicles
• Mobile equipment applications
• Agricultural machinery
• Manufacturing and assembly lines

Quality and Certification

This Parker fitting is manufactured under stringent quality control measures, adhering to Parker’s high standards for quality assurance. It meets industry certifications for hydraulic fittings, ensuring reliable and safe performance in fluid power applications.
