Technical Overview

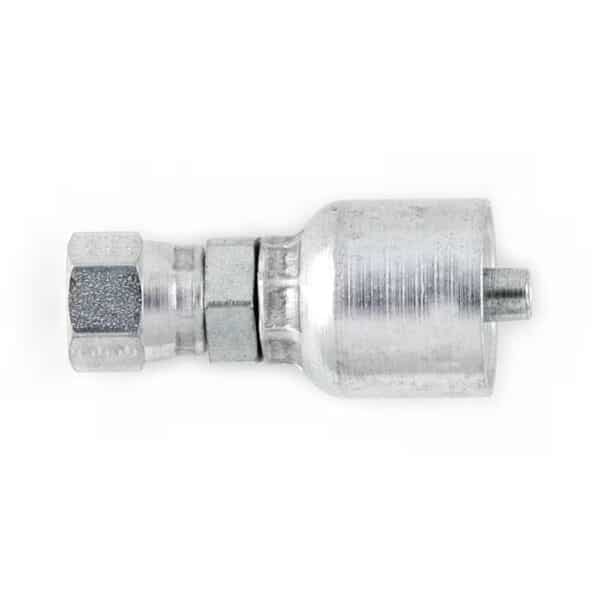

The Parker 10643-5-4 is a high-quality hydraulic fitting from the 43 Series line, specifically designed for optimal performance and durability in hydraulic systems. This female JIC 37° swivel fitting allows for easy connection and disconnection with a 5/16 inch hose, ensuring a secure and leak-free operation.

This fitting features a crimp style design that permits quick assembly with Parker’s Parkrimp crimpers. The no-skive assembly process eliminates the need to remove the outer cover of the hose, significantly reducing the risk of hose failure caused by improper skiving.

Specifications

• Part Number: 10643-5-4
• Material: Steel with Chromium-6 free plating
• Connection Type: Female JIC 37° Swivel
• Hose Size Compatibility: 5/16 inch
• Weight: 0.11 lbs
• Series: Parker 43 Series

Features and Benefits

• Chromium-6 free plating for enhanced corrosion resistance
• No-skive assembly process reduces installation time and risk of hose failure
• Swivel design allows for easy alignment and connection
• Compatible with various Parker hoses including Braided, Light Spiral, Specialty, Suction, and Return hoses
• Made in USA, ensuring superior quality and performance standards

Applications

• Hydraulic systems in industrial applications
• Agricultural machinery
• Construction equipment
• Mobile equipment
• Marine hydraulic systems

Quality and Certification

Parker’s 43 Series fittings meet rigorous quality and manufacturing standards set forth in the industry. Each fitting undergoes comprehensive testing to ensure reliable performance under high-pressure conditions. This fitting is compliant with various certification requirements, ensuring its suitability for use in critical applications.
