Technical Overview

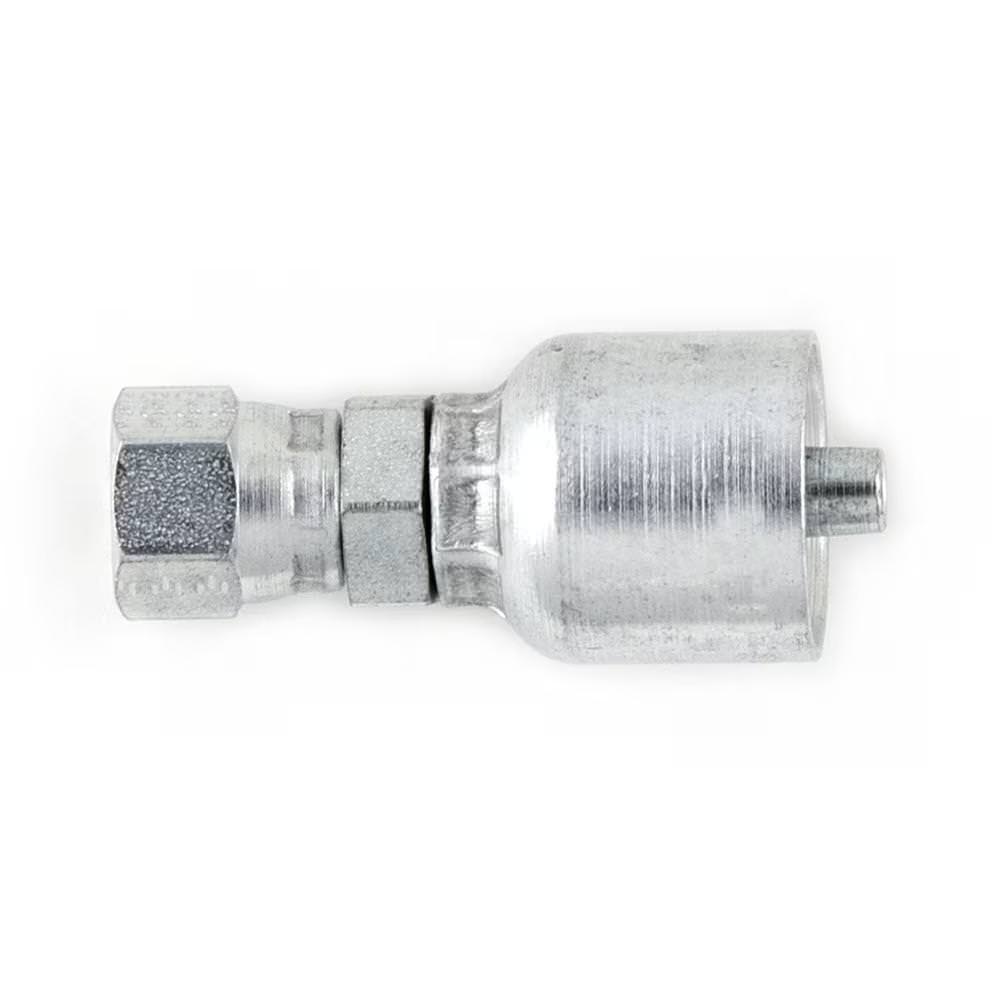

The Parker 10643-5-6 fitting is a premium quality female JIC 37° swivel fitting from the renowned 43 Series. Designed for quick and reliable assembly with Parker’s Parkrimp crimpers, this fitting enables seamless integration with Parker’s No-Skive hoses, eliminating the need to remove the outer cover and significantly reducing the risk of premature hose failure related to improper skiving.

This fitting features chromium-6 free plating, ensuring compliance with environmental standards while providing durability and corrosion resistance in various hydraulic applications.

Specifications

• Part Number: 10643-5-6
• Type: Female JIC 37° Swivel
• Connection Size: 5/16 inch
• Weight: 0.14 lbs
• Material: Steel
• Plating: Chromium-6 free

Features and Benefits

• Quick assembly with Parkrimp crimpers
• No-Skive technology for reduced hose failure risk
• Chromium-6 free for enhanced safety and compliance
• Designed for use with various Parker hoses, including hydraulic braided and suction hoses
• Made in USA under stringent quality control standards

Applications

• Hydraulic systems
• Industrial manufacturing
• Agricultural machinery
• Construction equipment
• Any application requiring high pressure fluid conveyance

Quality and Certification

Parker fittings are manufactured to meet or exceed industry standards, ensuring reliability and performance in critical applications. Each component undergoes rigorous testing and quality assurance processes to meet Parker’s high-quality benchmarks.
