Technical Overview

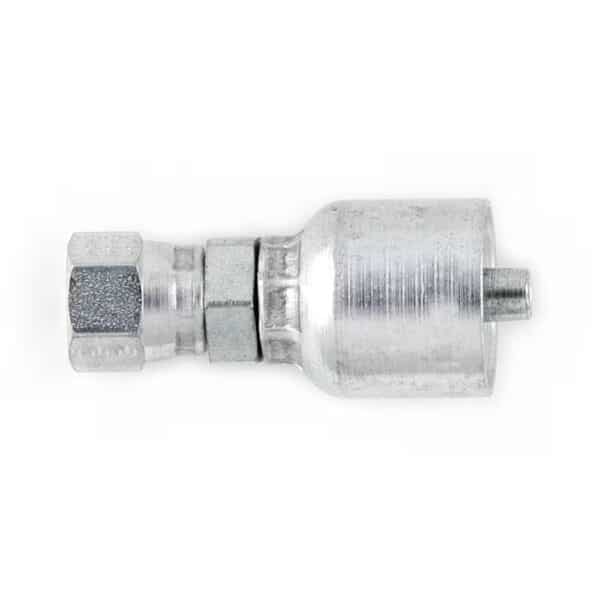

The Parker 10643-8-4 is a high-quality female JIC 37° swivel fitting belonging to the renowned Parker 43 Series. This permanent (crimp) style fitting allows for quick assembly with our range of Parkrimp crimpers. The no-skive feature enables the assembly of Parker hydraulic hoses without the need to remove the outer cover. This innovation helps to eliminate premature hose failure caused by improper skiving lengths, delivering a reliable and efficient connection for hydraulic applications.

Specifications

• Part Number: 10643-8-4
• Material: Steel
• Connection Type: Female JIC 37° Swivel
• Size: 1/2 inch
• Weight: 0.16 lbs
• Plating: Chromium-6 free

Features and Benefits

• Quick and easy assembly with Parkrimp crimpers
• No-skive assembly reduces the risk of hose failure
• Durable steel construction for long-lasting performance
• Compatible with a variety of Parker hydraulic hoses including braided, light spiral, specialty, suction, and return hoses
• Made in USA under quality manufacturing standards

Applications

• Hydraulic systems in industrial machinery
• Agricultural equipment
• Construction and heavy equipment
• Mobile machinery
• Fluid transfer systems

Quality and Certification

Every Parker fitting, including the 10643-8-4, is manufactured adhering to the strict Parker quality standards, ensuring reliability and performance in high-demand applications. This fitting is PD-750 compliant and meets industry certifications to guarantee it operates at full effectiveness within its rated specifications.
