Technical Overview

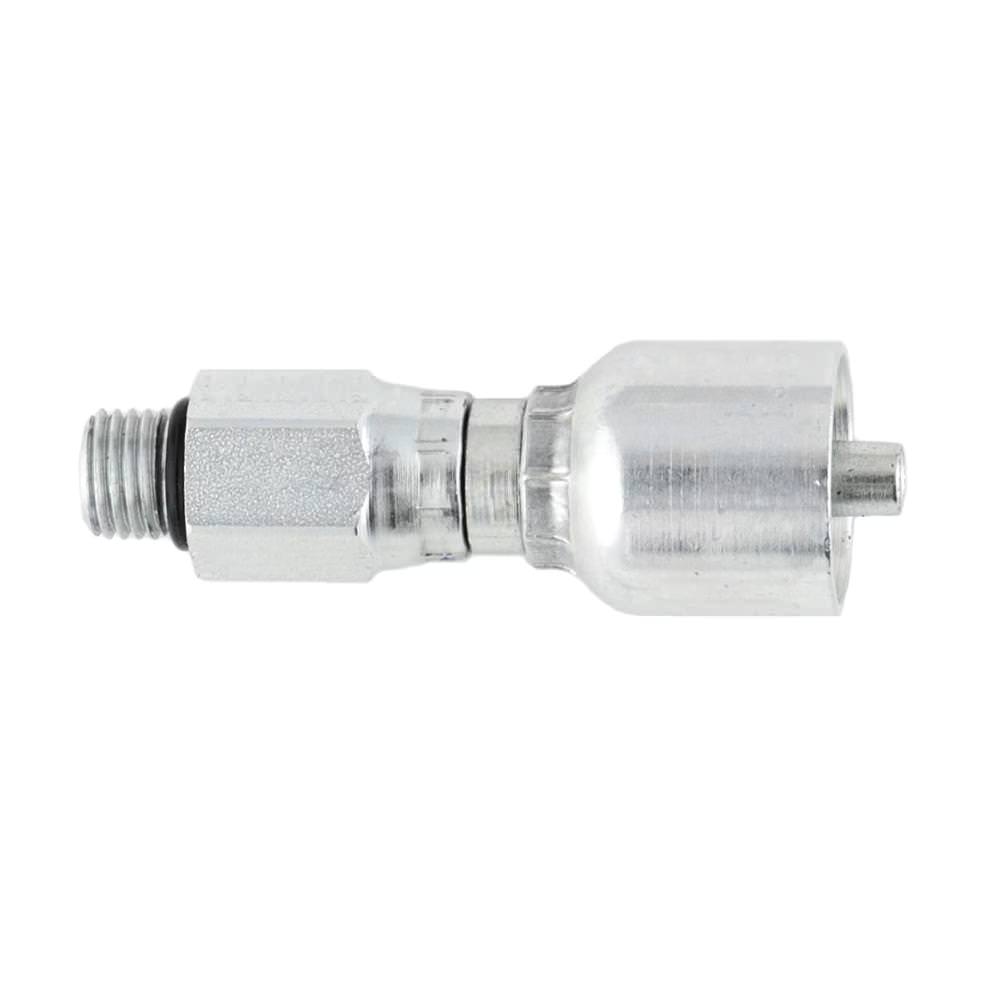

The Parker 10G43-10-6 is a premium quality fitting from the renowned 43 Series, specifically designed for hydraulic applications. This permanent (crimp) style fitting features a male SAE straight thread with an O-ring for an optimal seal, ensuring leak-free connections even under high-pressure conditions.

Engineered for quick and efficient assembly with the Parker Parkrimp crimpers, the 10G43-10-6 fitting allows for a No-Skive hose assembly process. This unique feature eliminates the need to remove the hose’s outer cover, preventing premature hose failure that can result from improper skiving lengths.

Specifications

• Part Number: 10G43-10-6
• Series: 43 Series
• Connection Type: Male SAE Straight Thread with O-Ring
• Size: 5/8 Inch
• Weight: 0.34 lbs
• Material: Steel with Chromium-6 Free Plating

Features and Benefits

• Permanent crimp style fitting for secure connections
• No-Skive assembly eliminates removal of hose cover
• Chromium-6 free plating ensures superior corrosion resistance
• Compatible with a variety of Parker hydraulic braided and specialty hoses
• Efficient installation with Parker Parkrimp crimping tools
• Made in USA, ensuring high-quality manufacturing standards

Applications

• Industrial hydraulic systems
• Manufacturing machinery
• Mobile equipment and vehicles
• Construction and agricultural equipment
• Hydraulic fluid power applications

Quality and Certification

Manufactured in accordance with Parker’s rigorous quality standards, the 10G43-10-6 fitting meets or surpasses industry specifications for hydraulic applications. Parker ensures that every product undergoes meticulous testing processes to guarantee reliability and longevity in demanding environments.
