Technical Overview

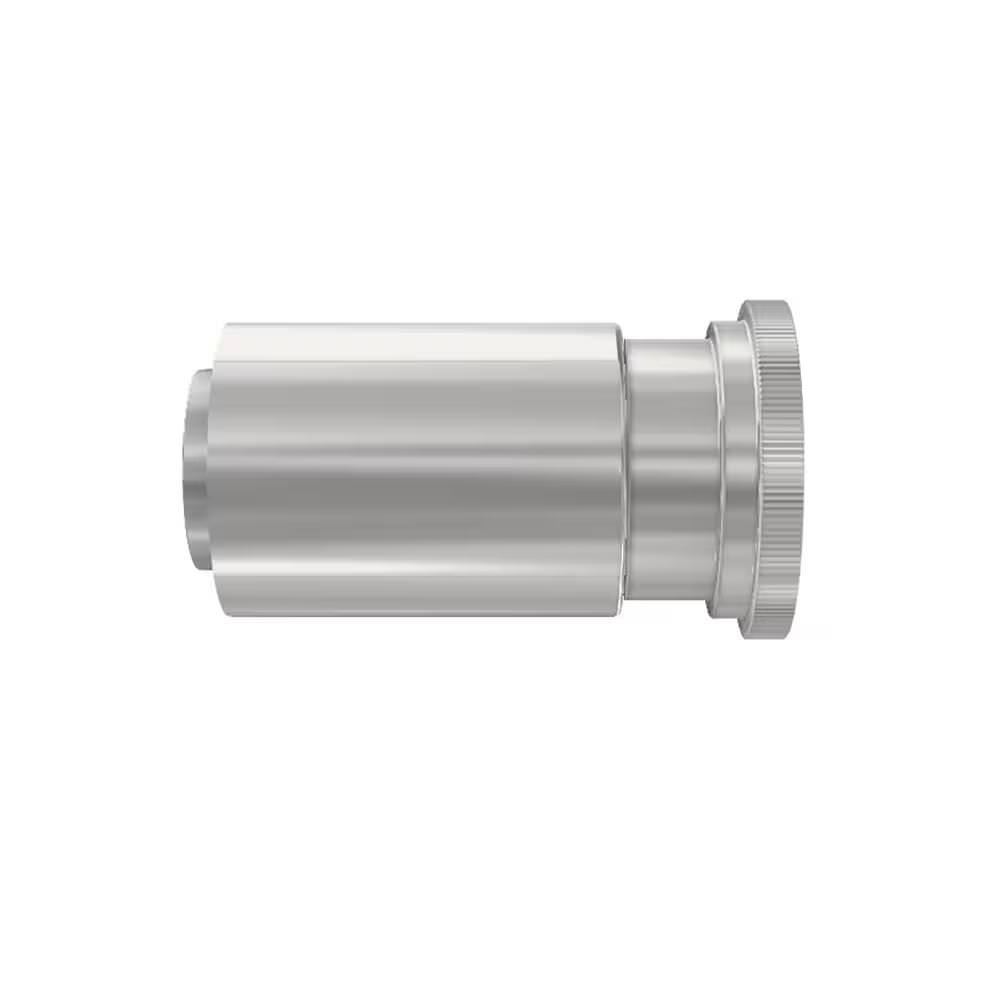

The Parker 11577-12-8 is part of the renowned 77 Series, a permanent crimp style fitting designed for efficient and reliable assembly with the Parker Parkrimp crimpers. This innovative fitting design allows for assembly using No-Skive hose and fittings, which eliminates the need to remove the outer cover of the hose. This feature significantly reduces the risk of premature hose failure that can result from improperly skiving. The construction of this flange fitting includes a durable zinc dichromate plating, ensuring corrosion resistance, which enhances the longevity and performance in tough conditions.

Specifications

• Part Number: 11577-12-8
• Series: 77 Series
• Type: SAE Code 61 Flange Head – Straight
• Hose Compatibility: Parkrimp No-Skive Hose
• Plating: Zinc Dichromate
• Weight: 0.72 lbs

Features and Benefits

• Quick assembly with No-Skive hose technology
• Reduced risk of hose failure due to improper skiving
• Durable zinc dichromate plating provides enhanced corrosion resistance
• Designed to meet demanding hydraulic applications
• Compatible with Parker hydraulic spiral hoses for versatile use

Applications

• Hydraulic systems in industrial applications
• Construction and agriculture machinery
• Marine hydraulic systems
• Equipment that requires reliable fluid power

Quality and Certification

This Parker fitting is manufactured in accordance with Parker’s quality standards and industry certifications, ensuring optimal performance and reliability. Each fitting undergoes rigorous testing to meet Parker’s specifications and standards, providing peace of mind for users in critical applications.
