Technical Overview

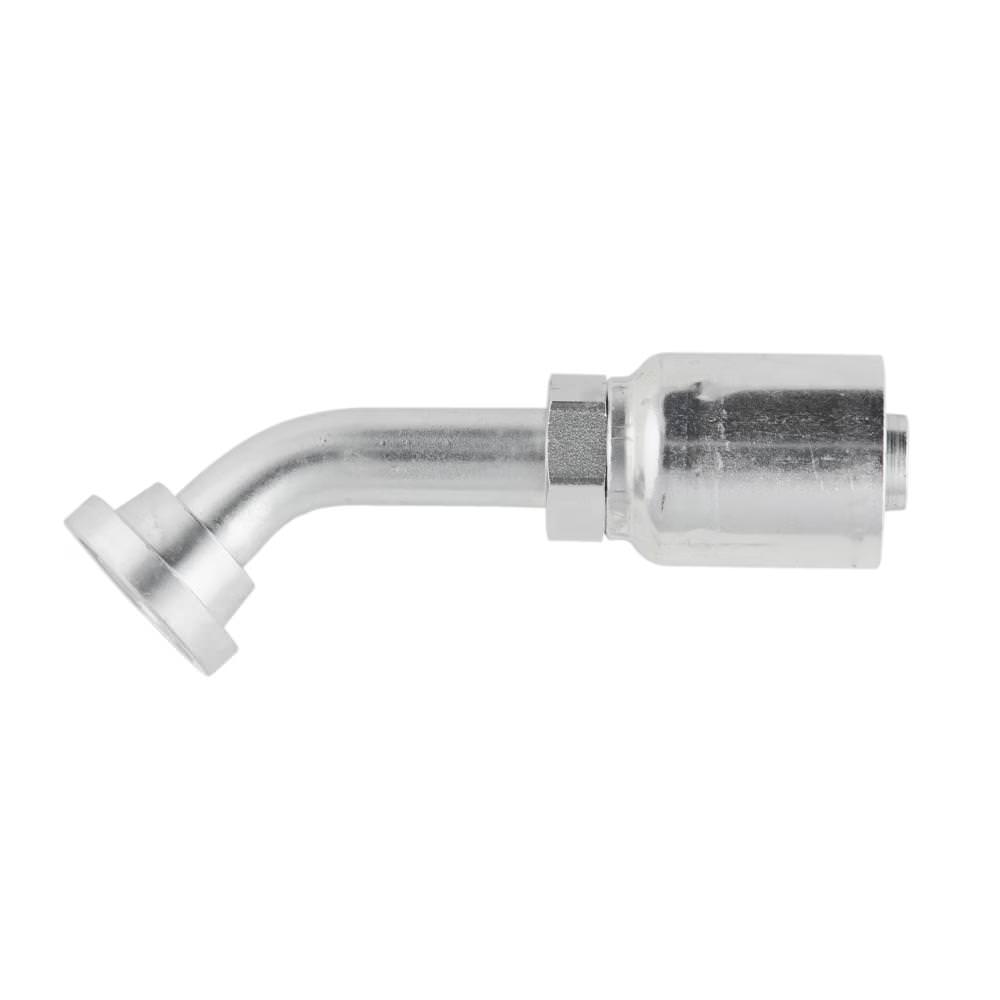

The Parker 43 Series Fittings, specifically the 11743-10-10 model, is an advanced crimp style fitting designed for quick assembly with Parker’s family of Parkrimp crimpers. This fitting features a 45° elbow and SAE Code 61 compatibility, making it an ideal choice for various hydraulic applications.

One of the standout features of the 43 Series is its innovative No-Skive design, which allows for assembly without the need to remove the outer cover of the hose. This eliminates potential premature hose failures due to skiving errors, leading to enhanced durability and reliability in diverse operational environments.

Specifications

• Part Number: 11743-10-10
• Series: 43 Series
• Type: SAE Code 61 Flange Head-45° Elbow
• Material: Steel with Chromium-6 free plating
• Weight: 0.51 lbs

Features and Benefits

• No-Skive assembly minimizes installation errors and reduces hose fatigue
• Chromium-6 free plating enhances corrosion resistance
• Compatible with Parker Hydraulic Braided, Light Spiral, Specialty, Suction, and Return Hoses
• Quick assembly with Parker Parkrimp crimpers for efficiency
• Made in USA under stringent quality standards

Applications

• Hydraulic systems in industrial machinery
• Heavy equipment applications
• Fluid power systems requiring reliable elbow connections
• Automotive hydraulic systems
• Marine and aerospace hydraulic applications

Quality and Certification

Parker’s 43 Series Fittings meet rigorous industry standards and certifications, ensuring top-tier quality and performance in hydraulic applications. Each fitting undergoes extensive testing to ensure dependable operation and long service life.
