Technical Overview

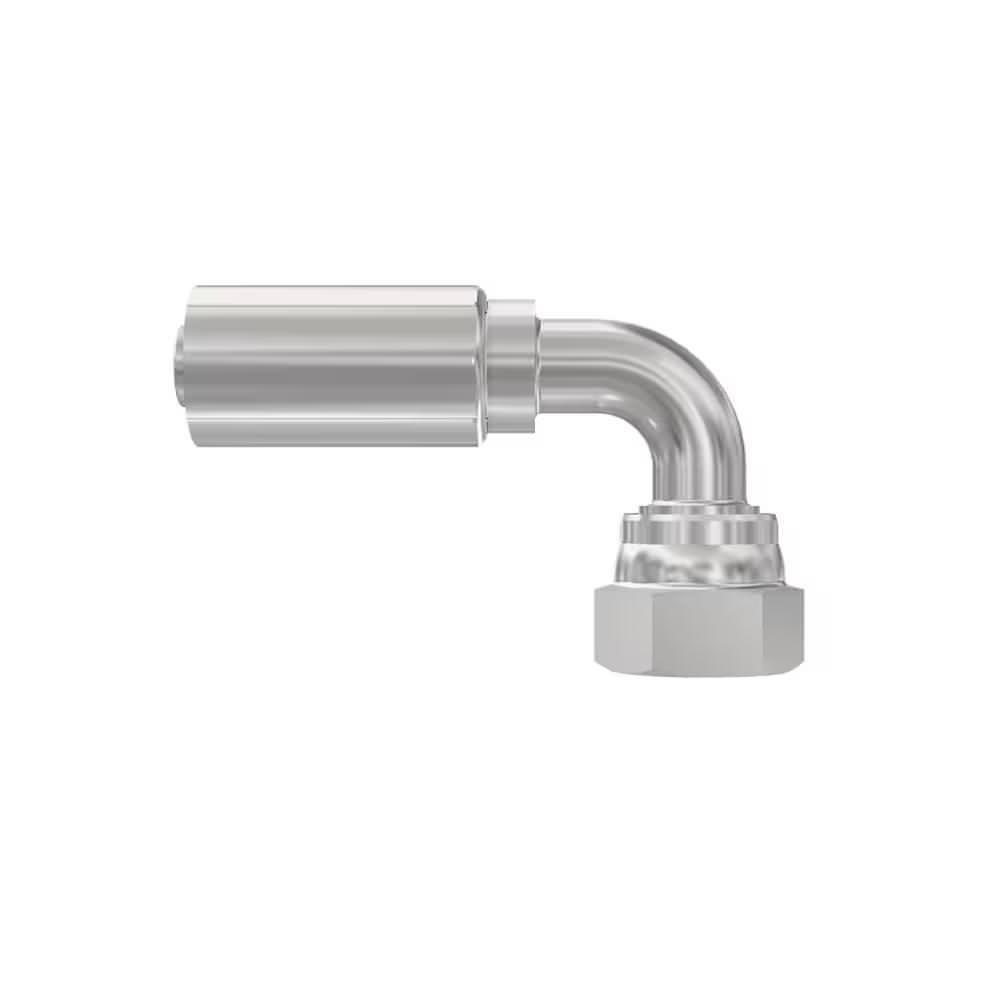

The Parker 73 Series 13977-12-12 crimp fitting is designed for quick and efficient assembly with the Parker families of Parkrimp crimpers. This permanent crimp style fitting allows for the use of No-Skive hose, eliminating the requirement for removal of the outer cover of the hose, which can lead to premature hose failure caused by incorrect skiving.

Featuring a 90° elbow design and a short drop configuration, the 13977-12-12 fitting promotes optimal routing in tight spaces, enhancing overall system performance. Constructed with durable zinc dichromate plated steel, this fitting is engineered to withstand the challenges of demanding hydraulic environments.

Specifications

• Part Number: 13977-12-12
• Series: Parker 73 Series
• Type: Female JIC 37° Swivel
• Connection Size: 3/4 Inch
• Elbow Configuration: 90° Elbow – Short Drop
• Material: Zinc Dichromate Plated Steel

Features and Benefits

• Quick assembly with Parker Parkrimp crimpers
• No-Skive hose assembly allows for reduced risk of premature failure
• Zinc dichromate plating for enhanced corrosion resistance
• Compact elbow design for efficient routing in hydraulic applications
• Made in USA quality assurance

Applications

• Hydraulic systems requiring reliable connections
• Equipment in construction and agriculture
• Marine hydraulic systems
• General manufacturing hydraulic applications

Quality and Certification

All Parker products are manufactured according to strict quality control standards to ensure durability and reliability. The Parker 73 Series fittings meet industry expectations for performance and safety, backed by rigorous testing procedures to maintain high quality.
