Technical Overview

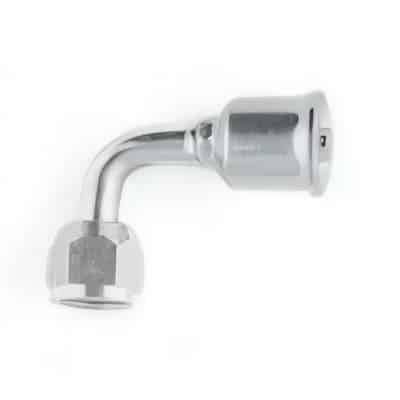

The Parker 15T26-8-8 is a high-quality 90° female swivel elbow fitting designed specifically for the Parker 26 series. This permanent (crimp) style fitting allows for rapid assembly with Parker crimpers, ensuring efficient and reliable installations. One of the key benefits of this fitting is its No-Skive design, which eliminates the need to remove the outer cover of the hose when making connections. This innovation greatly reduces the possibility of premature hose failure due to skiving errors.

Specifications

• Part Number: 15T26-8-8
• Connection Type: Female Swivel Elbow
• Angle: 90 Degrees
• Hose Compatibility: Compatible with Parker Hoses 201-261, 206, 213, 221FR, 225, 235, 244, 266, 285, 293, and SS23CG
• Material: Steel with zinc dichromate plating
• Weight: 0.12 lbs

Features and Benefits

• Durable zinc dichromate plating for enhanced corrosion resistance
• No-Skive design facilitates quick assembly without the risk of premature hose failure
• Designed for use with a wide range of Parker hoses for optimal compatibility
• Made in the USA, adhering to high manufacturing standards

Applications

• Hydraulic systems that require 90° elbows
• Mobile equipment and machinery
• Fluid transfer applications in various industries
• Installation in tight spaces where hose routing is critical

Quality and Certification

Parker products are manufactured to the highest quality standards, ensuring each fitting meets or exceeds industry specifications. The 15T26-8-8 fitting undergoes rigorous testing and quality control to guarantee reliable performance in demanding applications.
