Technical Overview

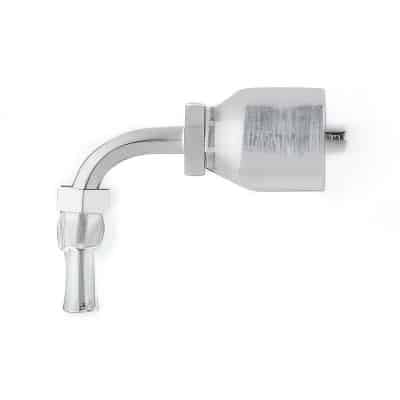

The Parker 16943-5-4 is a high-quality male inverted SAE 45° swivel 90° elbow fitting, part of the renowned Parker 43 Series. This permanent (crimp) style fitting is designed for quick assembly with the Parker Parkrimp crimpers. Ideal for applications requiring durable connections, the 43 Series ensures optimal performance without needing to remove the outer cover of the hose, thereby reducing the risk of premature hose failure.

Specifications

• Part Number: 16943-5-4
• Fitting Type: Male Inverted SAE 45° Swivel Elbow
• Connection Angle: 90°
• Hose Size: 5/16 Inch
• Material: Steel
• Plating: Chromium-6 Free
• Weight: 0.14 lbs

Features and Benefits

• Quick assembly with Parkrimp crimpers, eliminating time-consuming steps
• No-Skive hose and fittings reduce the risk of premature failure due to skiving errors
• Chromium-6 free plating enhances environmental safety and complies with regulations
• Designed for use with Parker Hydraulic Braided, Light Spiral, Specialty, Suction and Return Hoses
• Made in USA with high-quality manufacturing standards

Applications

• Hydraulic systems in industrial machinery
• Mobile equipment applications
• Construction equipment
• Agricultural machinery
• Various fluid transfer applications

Quality and Certification

The Parker 43 Series fittings, including the 16943-5-4, are manufactured in adherence to Parker’s stringent quality standards. Each product undergoes thorough testing to ensure it meets or exceeds industry specifications for safety and reliability in critical hydraulic applications.
