Technical Overview

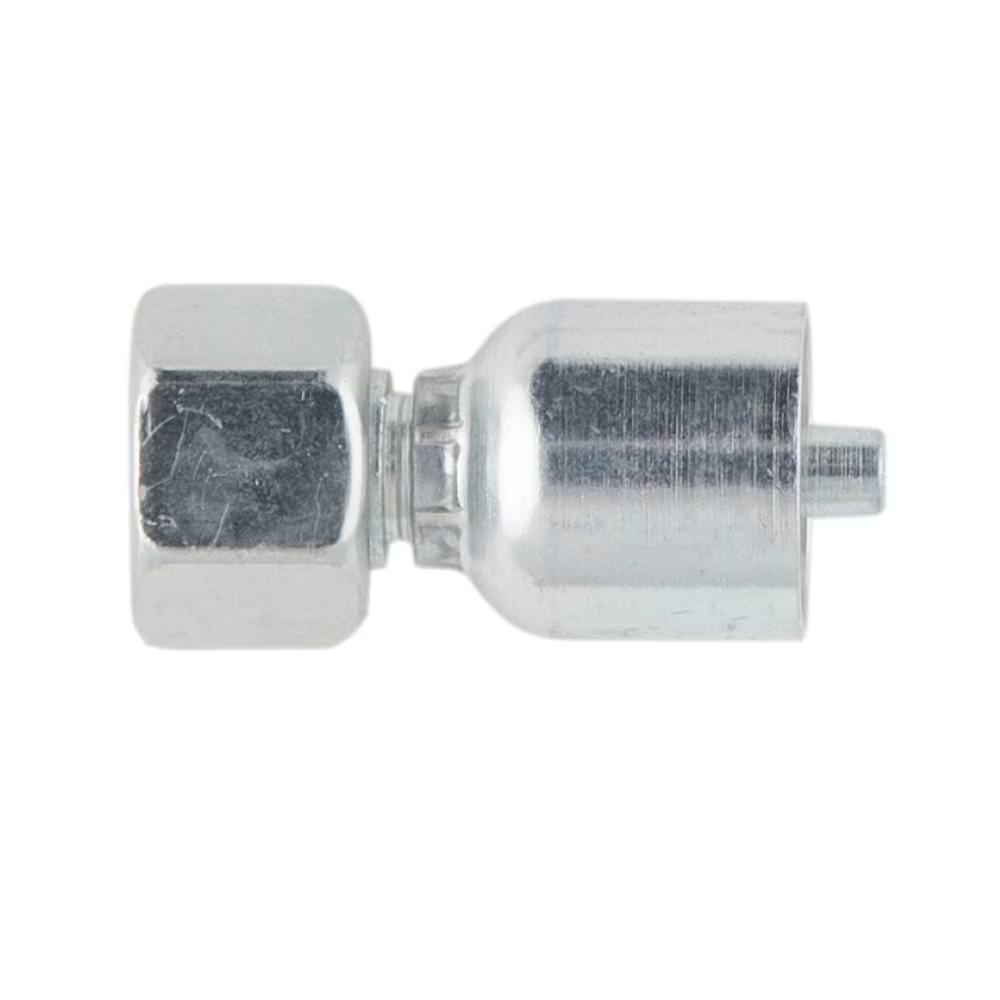

The Parker 1C943-38-20 is a high-quality 43 Series Female Metric S fitting designed for use with Parker’s crimping technology. This fitting features a swivel design and a 24° cone with an O-ring for superior sealing capabilities. Its unique No-Skive assembly method allows for quick connection without the need to remove the outer cover of the hose, thus preventing premature hose failure.

Specifications

• Part Number: 1C943-38-20
• Series: 43 Series
• Type: Female Metric S Swivel Straight
• Connection Angle: 24° Cone
• Material: Steel with Chromium-6 free plating
• Weight: 1.8 lbs

Features and Benefits

• No-Skive assembly eliminates the risk of hose failure due to incorrect skiving
• Chromium-6 free plating ensures compliance with safety and environmental standards
• Swivel design enables easy alignment during installation
• Compatible with Parker Hydraulic Braided, Light Spiral, Specialty, Suction, and Return Hoses
• Made in USA under strict quality control standards

Applications

• Hydraulic systems in mobile and industrial machinery
• Construction and agricultural equipment
• Aerospace applications
• Manufacturing processes requiring reliable hydraulic connections

Quality and Certification

This Parker 43 Series fitting is manufactured in accordance with Parker’s rigorous quality standards, ensuring reliable performance in high-demand applications. It meets or exceeds applicable industry certifications, demonstrating compliance with best practices in hydraulic fitting design.
