Technical Overview

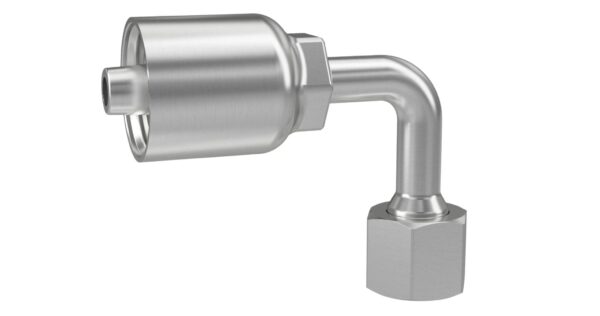

The Parker 1J543-8-6 fitting is part of the renowned 43 Series, known for its exceptional performance in hydraulic applications. This female Seal-Lok swivel fitting features a 90° elbow configuration, providing versatility and adaptability in tight spaces. Crafted from high-quality steel, it offers durability, corrosion resistance, and a reliable connection for various industrial uses.

One of the standout features of the 43 Series fittings is the Parkrimp design, which allows for quick and efficient assembly without the need to remove the outer cover of the hose, known as the No-Skive hose. This innovation not only speeds up the assembly process but also minimizes the risk of premature hose failure due to improper skiving.

Specifications

• Part Number: 1J543-8-6
• Series: 43 Series
• Material: Steel
• Connection Type: Female Seal-Lok
• Configuration: 90° Elbow
• Weight: 0.28 lbs

Features and Benefits

• Made from durable steel for long-lasting performance
• Parkrimp design supports fast, secure assembly
• No-Skive assembly reduces likelihood of hose failure
• Suitable for a variety of Parker hydraulic braided, light spiral, specialty, suction, and return hoses
• Chromium-6 free plating improves environmental safety

Applications

• Industrial hydraulic systems
• Mobile equipment
• Construction vehicles
• Material handling applications
• Manufacturing equipment

Quality and Certification

Parker products, including the 1J543-8-6 fitting, adhere to strict quality control standards, ensuring exceptional performance and reliability. The 43 Series fittings are manufactured under rigorous conditions to guarantee compliance with industry certifications and regulations. Parker is committed to delivering high-quality hydraulic solutions that meet or exceed customer expectations.
