Technical Overview

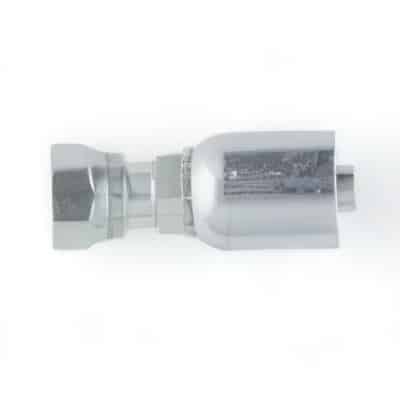

The Parker 1JS77-10-8 is a high-quality hydraulic fitting from the renowned 73 Series. This Parkrimp permanent (crimp) style fitting allows for quick assembly, eliminating the need to remove the outer cover of the hose. As a result, it significantly reduces the risk of premature hose failure commonly associated with improper skiving techniques.

Made from durable steel and featuring zinc dichromate plating, it is designed to provide superior resistance to corrosion and wear. The 1JS77-10-8 fitting is compatible with the Parker 731 hose, making it a reliable choice for various hydraulic applications.

Specifications

• Part Number: 1JS77-10-8
• Series: 73 Series
• Material: Steel with Zinc Dichromate Plating
• Fitting Type: Female Seal-Lok – Swivel – Straight – Long
• Weight: 1.38 lbs
• Compatible Hose: Parker 731 Hose

Features and Benefits

• Quick and easy assembly with Parkrimp crimpers
• No-skive design reduces risk of premature hose failures
• Durable steel construction for extended service life
• Zinc dichromate plating for enhanced corrosion resistance
• Made in USA under stringent quality control standards

Applications

• Hydraulic fluid transfer systems
• Industrial machinery and equipment
• Construction and agricultural applications
• High-pressure hydraulic systems
• Mobile and stationary hydraulic systems

Quality and Certification

Parker’s 73 Series fittings are manufactured to meet rigorous industry standards, ensuring peak performance in high-pressure hydraulic environments. Each fitting undergoes comprehensive testing to confirm reliability and durability throughout its service life.
