Technical Overview

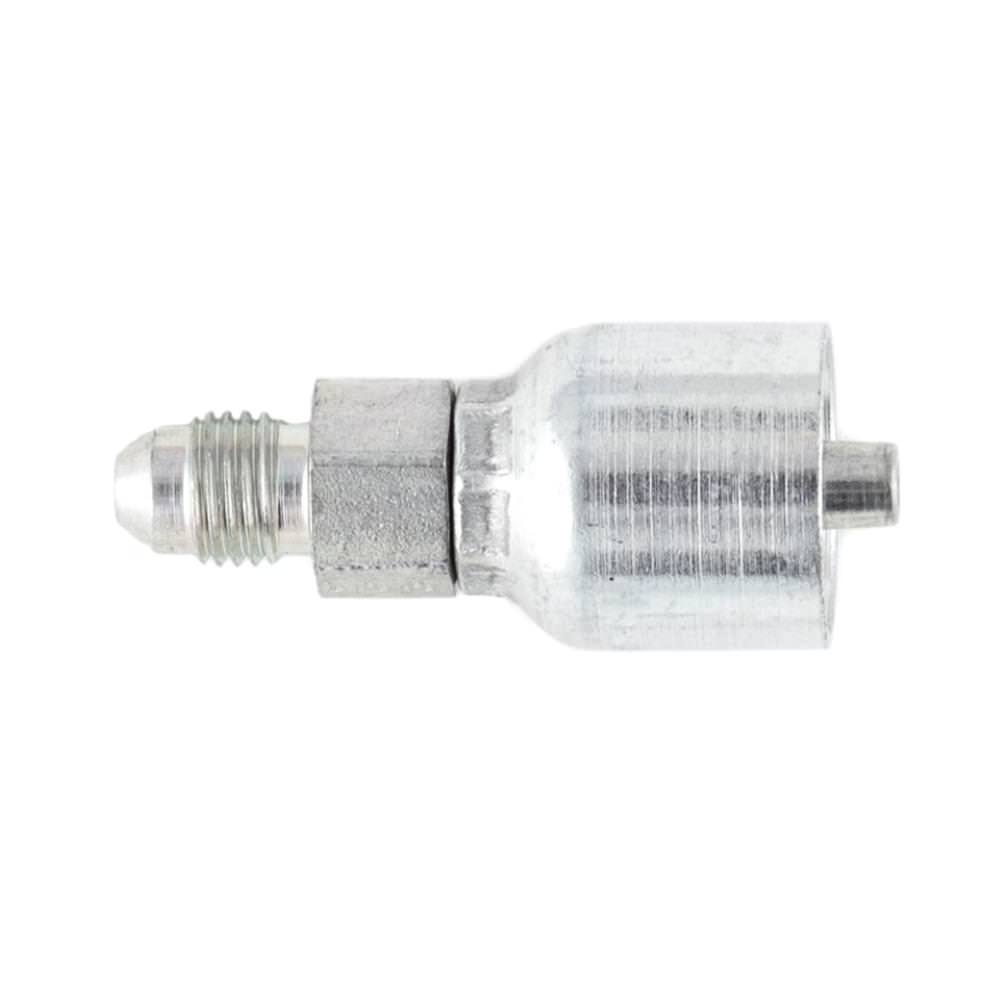

The Parker 43 Series 10343-10-8 is a high-quality, rigid, straight male JIC fitting designed for reliable connections in hydraulic systems. This fitting is engineered to facilitate quick assembly with Parker’s Parkrimp crimpers, enabling seamless integration with the No-Skive hose assembly process. This innovation not only expedites the assembly but also minimizes the risk of premature hose failure, as it eliminates the need for skiving the outer cover of the hose.

Features and Benefits

• Quick assembly with Parkrimp technology, ensuring efficient installation
• Chromium-6 free plating for environmentally friendly compliance
• Designed for use with Parker’s Hydraulic Braided, Light Spiral, Specialty, Suction, and Return hoses
• Superior strength and corrosion resistance due to durable steel construction
• Made in the USA under strict quality standards

Specifications

• Part Number: 10343-10-8
• Type: Male JIC 37° – Rigid – Straight
• Connection Size: 5/8 Inch
• Material: Steel with Chromium-6 free plating
• Weight: 0.23 lbs

Applications

• Hydraulic systems requiring reliable male JIC fittings
• General industrial applications
• Construction and agricultural machinery
• Maintenance and repair operations

Quality and Certification

The Parker 43 Series fittings meet stringent industry standards for quality and reliability. They are manufactured with precision, ensuring a long service life and optimal performance within hydraulic applications. Each fitting is tested according to Parker’s rigorous quality control processes.
