Technical Overview

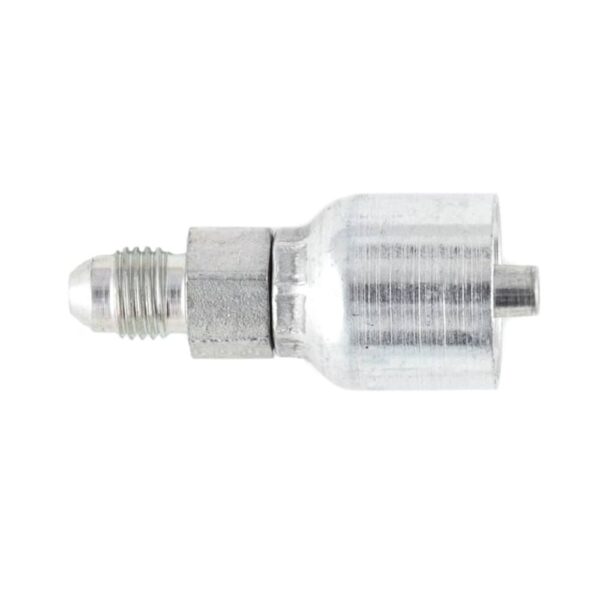

The Parker 43 Series 10343-16-16 is a high-quality male JIC 37° rigid fitting designed for seamless integration with Parker’s range of hydraulic hoses. This permanent (crimp) style fitting allows for quick assembly utilizing Parker’s Parkrimp crimpers, ensuring a reliable and leak-proof connection.

One of the key advantages of the 43 Series fittings is the No-Skive assembly method, which eliminates the need to remove the outer cover of the hose. This innovation reduces the risk of premature hose failure that can occur due to improper skiving. Constructed with Chromium-6 free plating, these fittings meet modern environmental and safety standards.

Specifications

• Part Number: 10343-16-16
• Fitting Type: Male JIC 37° Rigid
• Size: 1 Inch
• Material: Steel
• Plating: Chromium-6 Free
• Weight: 0.75 lbs

Features and Benefits

• Quick assembly with Parkrimp crimpers for efficiency
• No-Skive technology prevents premature hose failure
• Chromium-6 free plating ensures compliance with safety standards
• Designed for use with a variety of Parker hydraulic hoses including braided, light spiral, specialty, suction, and return hoses
• Made in USA for uncompromised quality and durability

Applications

• Hydraulic systems in construction machinery
• Industrial manufacturing equipment
• Agricultural machinery hydraulics
• Mobile equipment hydraulic systems
• Fluid transfer applications

Quality and Certification

The Parker 43 Series fittings adhere to strict quality standards set forth by Parker. Each fitting is tested to ensure reliable performance in high-pressure and critical applications. Manufactured in accordance with industry specifications, these fittings provide the durability and reliability needed in demanding environments.
