Technical Overview

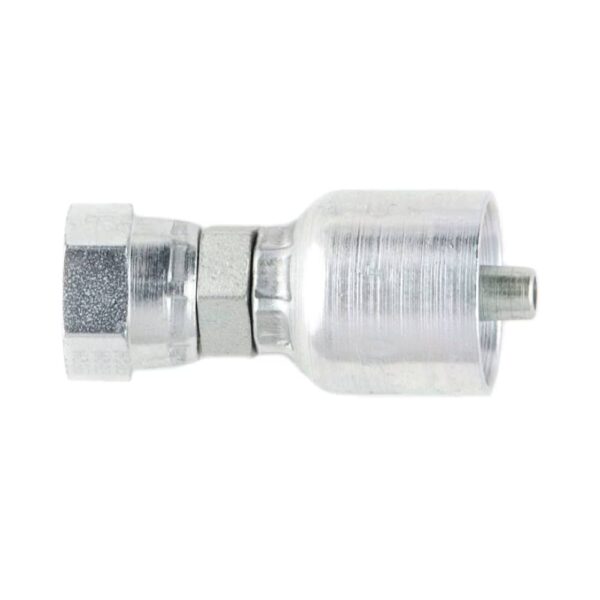

The Parker 43 Series 10743-6-6 female NPSM pipe fitting is designed specifically for hydraulic applications requiring a reliable and quick assembly. This crimp-style fitting is a part of the Parkrimp system, allowing assembly without the need for removing the hose’s outer cover, significantly reducing the risk of premature hose failure commonly associated with improper skiving.

Constructed from durable steel with Chromium-6 free plating, the Parker 43 Series fittings offer exceptional resistance to corrosion while maintaining robust performance under pressure. This fitting is ideal for use with a variety of Parker hydraulic braided, light spiral, specialty, suction, and return hoses, making it a versatile choice for industrial applications.

Specifications

• Part Number: 10743-6-6
• Type: Female NPSM Pipe Fitting
• Construction Material: Steel
• Plating: Chromium-6 free
• Weight: 0.21 lbs
• Connection Type: Swivel – Straight (60° Cone)
• Size: 3/8 Inch

Features and Benefits

• Easily assembles with Parkrimp crimpers for efficient performance
• Eliminates premature hose failure due to no-skive technology
• Corrosion-resistant with Chromium-6 free plating for extended service life
• Compatible with a wide range of Parker hoses for flexibility in applications
• Manufactured under rigorous Parker quality standards

Applications

• Hydraulic power systems requiring reliable fluid transfer
• Industrial hydraulic machinery
• Automotive applications with hydraulic components
• Construction and agricultural equipment
• Manufacturing processes demanding high durability

Quality and Certification

The Parker 43 Series fittings are manufactured under strict quality control processes meeting Parker’s high standards. Each fitting has been designed to fulfill API (American Petroleum Institute) and ISO (International Organization for Standardization) compliance requiring high performance under various operating conditions.
