Technical Overview

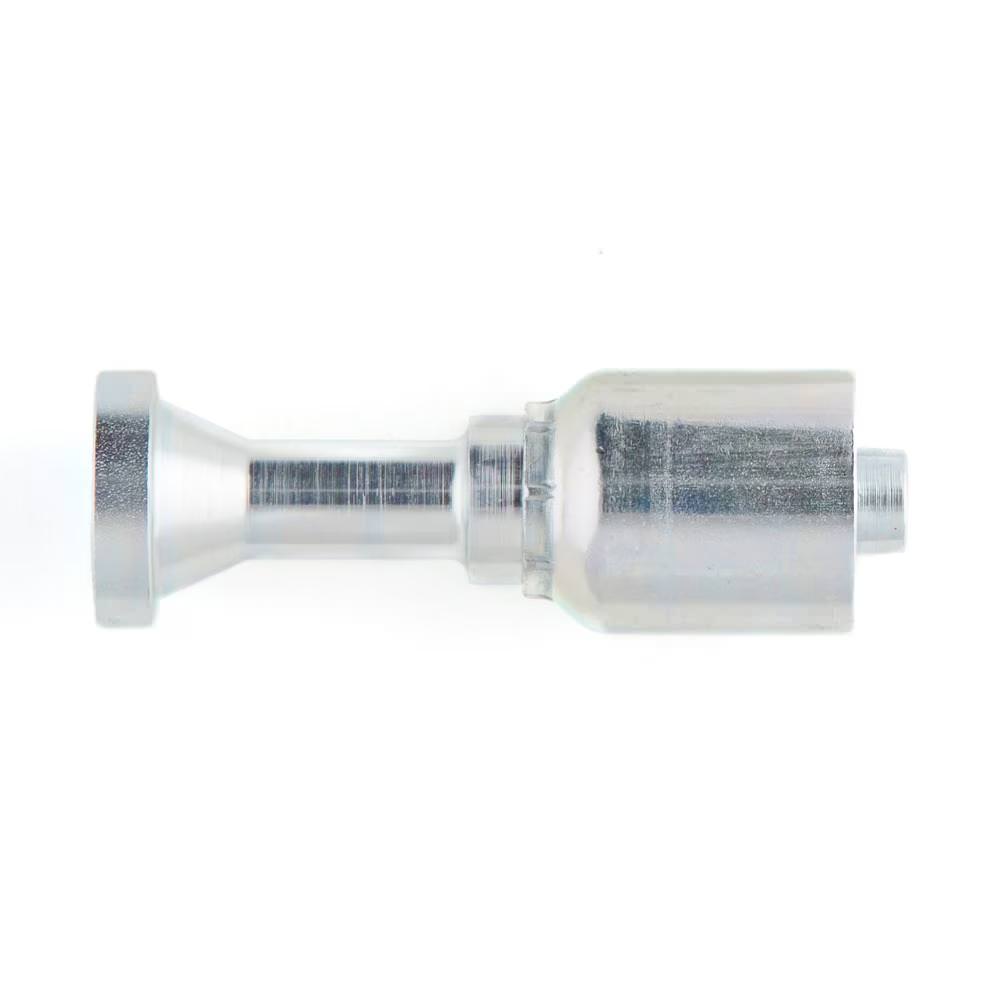

The Parker 43 Series 11543-24-24 is a premium hydraulic fitting designed for high-performance applications. This permanent (crimp) style fitting allows for quick assembly with the Parkrimp family of crimpers without the necessity of skiving the hose. By eliminating the potential for premature hose failure associated with incorrect skiving lengths, the Parker 43 Series ensures reliability in critical applications.

Specifications

• Part Number: 11543-24-24
• Material: Steel
• Plating: Chromium-6 free
• Connection Type: SAE Code 61 Flange Head
• Hose Compatibility: Works with Parker Hydraulic Braided, Light Spiral, Specialty, Suction and Return hoses
• Weight: 2.02 lbs
• Size: 1 1/2 inch

Features and Benefits

• Quick assembly with Parkrimp crimpers
• No-Skive technology eliminates premature hose failure
• Chromium-6 free plating ensures environmental safety
• Reliable performance in high-pressure hydraulic applications
• Made in USA under stringent quality control

Applications

• Industrial hydraulic systems
• Agricultural equipment
• Construction machinery
• Automotive applications
• Oil and gas industry

Quality and Certification

This fitting meets Parker quality standards and industry specifications. Manufactured from high-quality materials, it undergoes rigorous testing procedures to ensure dependable performance and longevity in demanding environments.
