Technical Overview

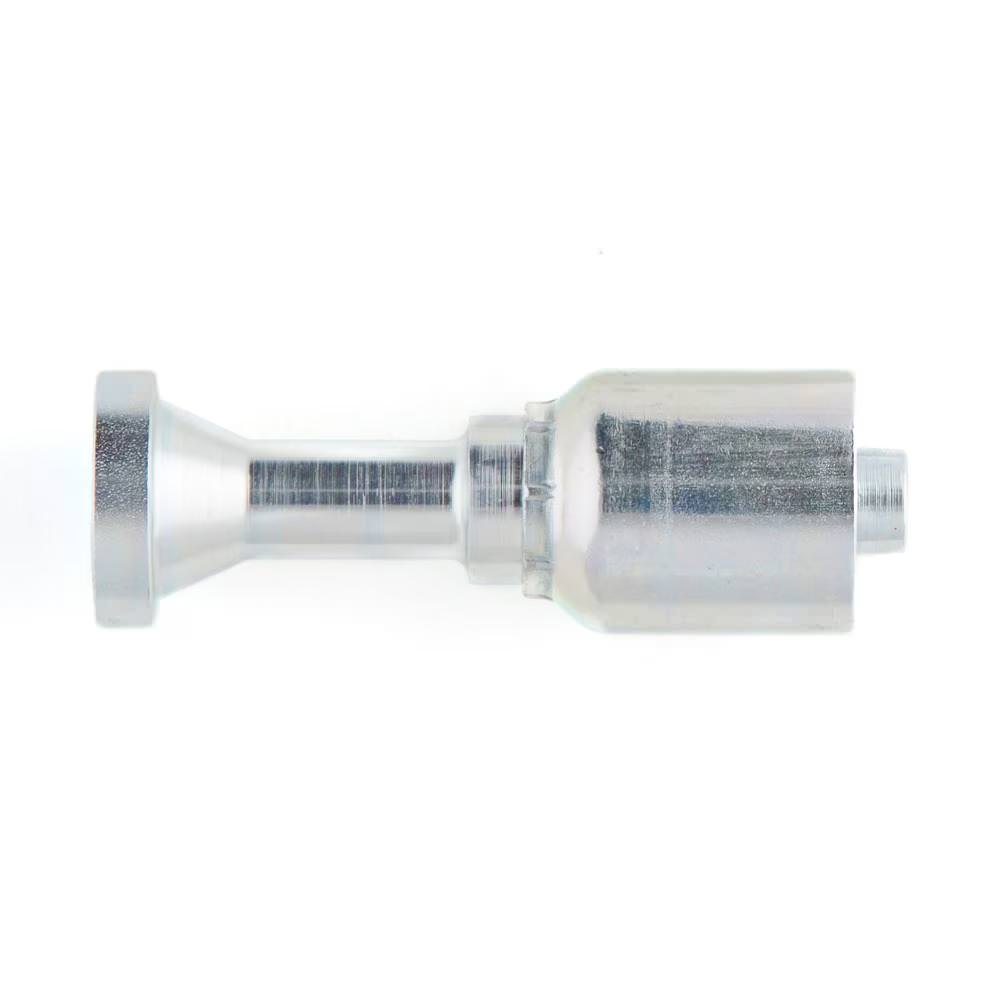

The Parker 43 Series Fittings, specifically the 11543-32-32 model, is designed to facilitate quick assembly in hydraulic applications with a Parkrimp system. The crimp-style fitting permits the use of the Parkrimp crimpers, allowing for effective and reliable connections. The no-skive assembly process eliminates the need to remove the outer cover of the hose, significantly reducing the chances of premature hose failure caused by improper skiving.

Specifications

• Part Number: 11543-32-32
• Series: 43 Series
• Connection Type: SAE Code 61 Flange Head
• Size: 2 Inch
• Material: Steel
• Weight: 2.99 lbs

Features and Benefits

• Permanent crimp style fitting allows for quick and easy assembly.
• No-skive assembly for increased durability and reliability.
• Chromium-6 free plating for enhanced corrosion resistance.
• Compatible with Parker Hydraulic Braided, Light Spiral, Specialty, Suction, and Return Hoses.
• Made in the USA under strict quality control standards.

Applications

• Hydraulic systems requiring robust flanged connections.
• Industrial equipment and machinery.
• Construction and manufacturing applications.

Quality and Certification

Manufactured to meet Parker’s high-quality standards, this fitting adheres to industry specifications for durability and performance. The chromium-6 free plating ensures safe and environmentally compliant use in various applications.
