Technical Overview

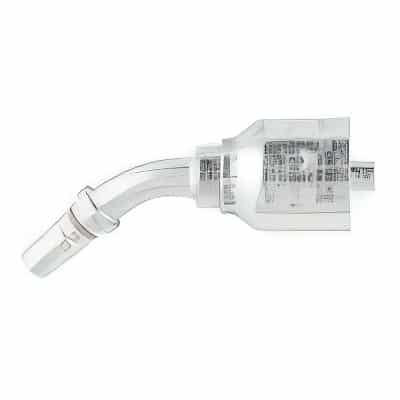

The Parker 43 Series 1EU43-18-10 is a high-quality universal push-to-connect fitting designed for efficient and reliable connections in hydraulic applications. This male 45° elbow fitting features a permanent crimp style, allowing for quick and easy assembly with all Parkrimp crimpers. With the No-Skive technology, assembly does not require the removal of the hose’s outer cover, significantly reducing the risk of premature hose failure caused by incorrect skiving.

Specifications

• Part Number: 1EU43-18-10
• Material: Steel
• Fitting Type: Universal push-to-connect (UPTC)
• Connection Angle: 45° elbow
• Weight: 0.38 lbs
• Plating: Chromium-6 free

Features and Benefits

• Permanent crimp design allows for strong, leak-free connections
• No-Skive technology eliminates the need for hose cover removal
• Chromium-6 free plating ensures compliance with environmental standards
• Designed for compatibility with Parker hydraulic braided, light spiral, specialty, suction, and return hoses
• Optimized for performance in various hydraulic applications

Applications

• Hydraulic machinery and systems
• Construction and industrial applications
• Agricultural equipment
• Mobile machinery
• General purpose fluid transfer

Quality and Certification

Parker fittings are manufactured under stringent quality control standards, ensuring reliability and durability in demanding environments. The 43 Series fittings are engineered to meet industry-leading specifications, guaranteeing dependable performance across various applications.
