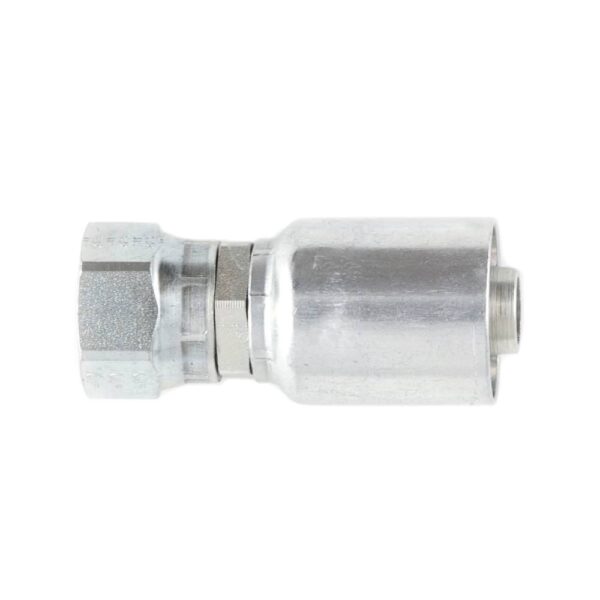

Parker 43 Series 1JC43-8-8 Female Seal-Lok Fitting

Technical Overview

The Parker 43 Series Fittings, specifically the 1JC43-8-8 model, are high-quality hydraulic fittings designed for a variety of industrial applications. These fittings feature a permanent (crimp) style connection which enables quick assembly with Parker’s range of Parkrimp crimpers. The unique No-Skive design allows assembly without the need to remove the outer cover of the hose, significantly reducing the risk of premature hose failure due to improper skiving.

Specifications

• Part Number: 1JC43-8-8
• Type: Female Seal-Lok Swivel Straight Short
• Material: Steel
• Plating: Chromium-6 Free
• Weight: 0.27 lbs

Features and Benefits

• No-Skive assembly eliminates risks associated with skiving
• High-quality steel construction ensures durability and strength
• Compatible with Parker Hydraulic Braided, Light Spiral, Specialty, Suction, and Return Hoses
• Designed for effective sealing and leak prevention
• Made in USA under strict quality management systems

Applications

• Hydraulic systems
• Industrial machinery
• Agricultural equipment
• Construction apparatus
• Mobile equipment

Quality and Certification

The Parker 43 Series fittings are manufactured in accordance with Parker’s rigorous quality standards. They meet or exceed industry specifications for hydraulic applications, ensuring reliable performance and longevity. Each fitting undergoes exhaustive testing to ensure that it will perform reliably in all conditions.
