Technical Overview

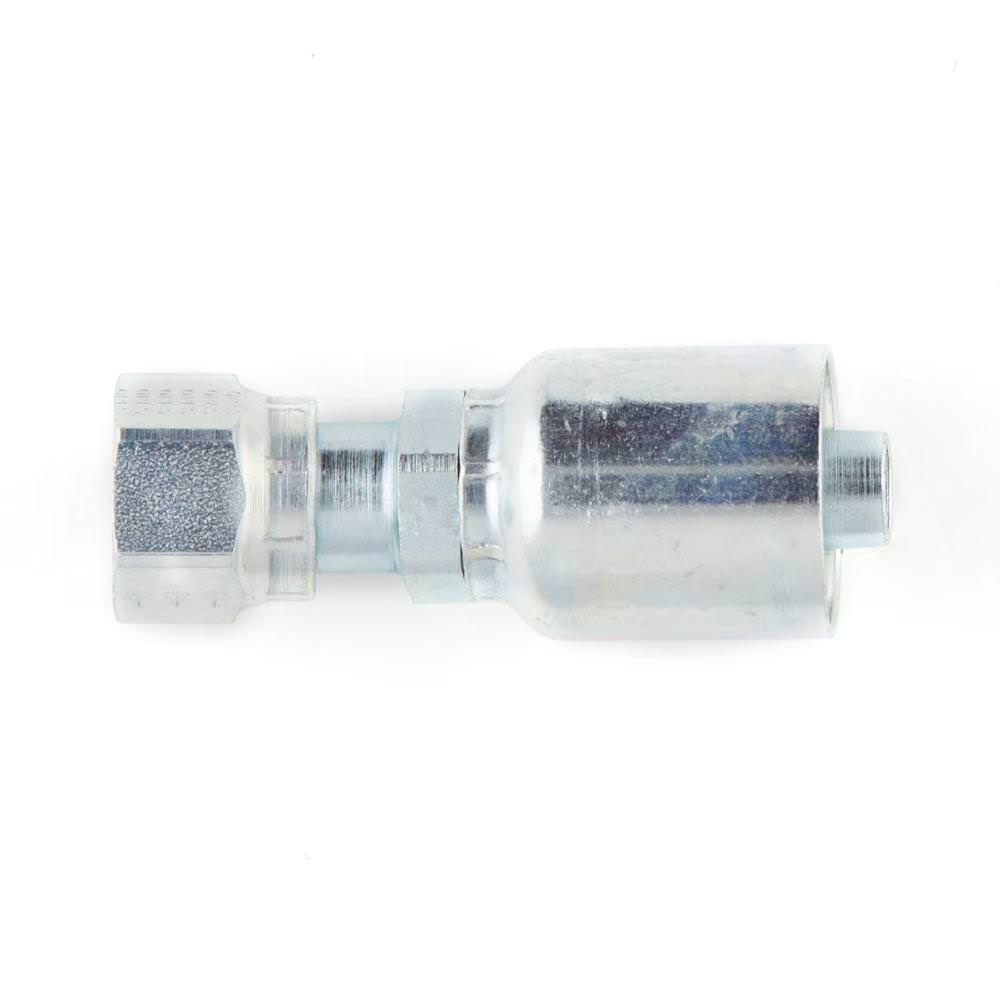

The Parker 43 Series Female Seal-Lok fitting (Part Number: 1JS43-12-12) is designed for a reliable and durable connection in hydraulic systems. As a Parkrimp permanent (crimp) style fitting, it allows for quick assembly without the need to remove the outer cover of the hose, maximizing efficiency and reducing the risk of premature hose failure.

This fitting is compatible with a variety of Parker hydraulic braided, light spiral, specialty, suction, and return hoses. The innovative design of the 43 Series eliminates the common issues associated with skiving, providing a strong and secure connection.

Specifications

• Part Number: 1JS43-12-12
• Connection Type: Female Seal-Lok – Swivel – Straight – Long
• Material: Steel
• Plating: Chromium-6 free
• Weight: 0.65 lbs
• Size: 3/4 Inch

Features and Benefits

• Quick assembly with Parkrimp crimpers.
• No skiving required, eliminating premature hose failure risks.
• Made from steel with Chromium-6 free plating for corrosion resistance.

Applications

• Hydraulic systems requiring reliable fittings for optimum performance.
• Compatible with a variety of Parker hoses for a wide range of industrial applications.
• Ideal for use in environments that require a strong, leak-free seal.

Quality and Certification

Parker’s quality standards guarantee robust and reliable performance under various working conditions. This fitting adheres to industry regulations for safety and performance, ensuring that each component is built to last and is thoroughly tested.
